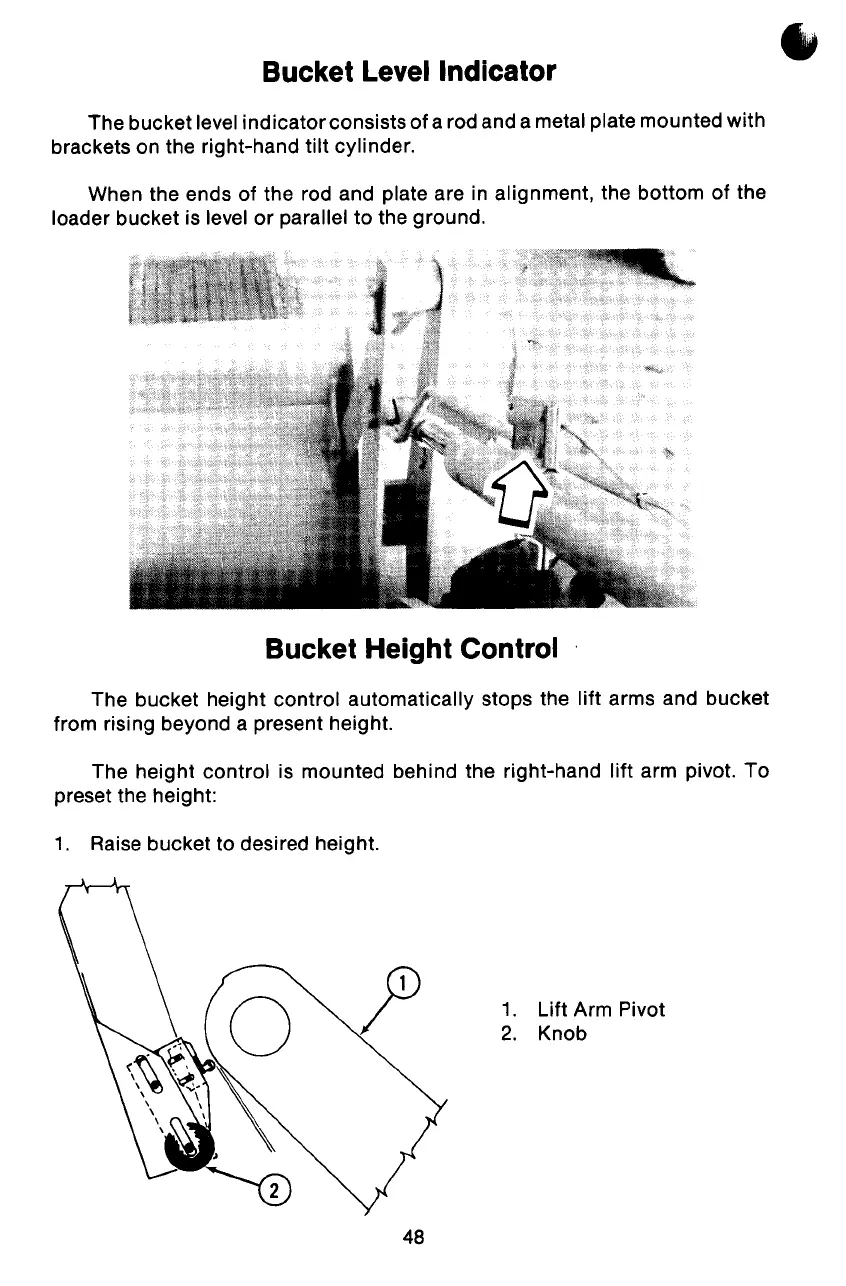

Bucket Level Indicator
The bucket level indicator consists of a rod and a metal plate mounted with
brackets on the right-hand tilt cylinder.
When the ends of the rod and plate are in alignment, the bottom of the
loader bucket is level or parallel to the ground.
Bucket Height Control
The bucket height control automatically stops the lift arms and bucket
from rising beyond a present height.
The height control is mounted behind the right-hand lift arm pivot. To
preset the height:
1. Raise bucket to desired height.
1. Lift Arm Pivot
2. Knob
