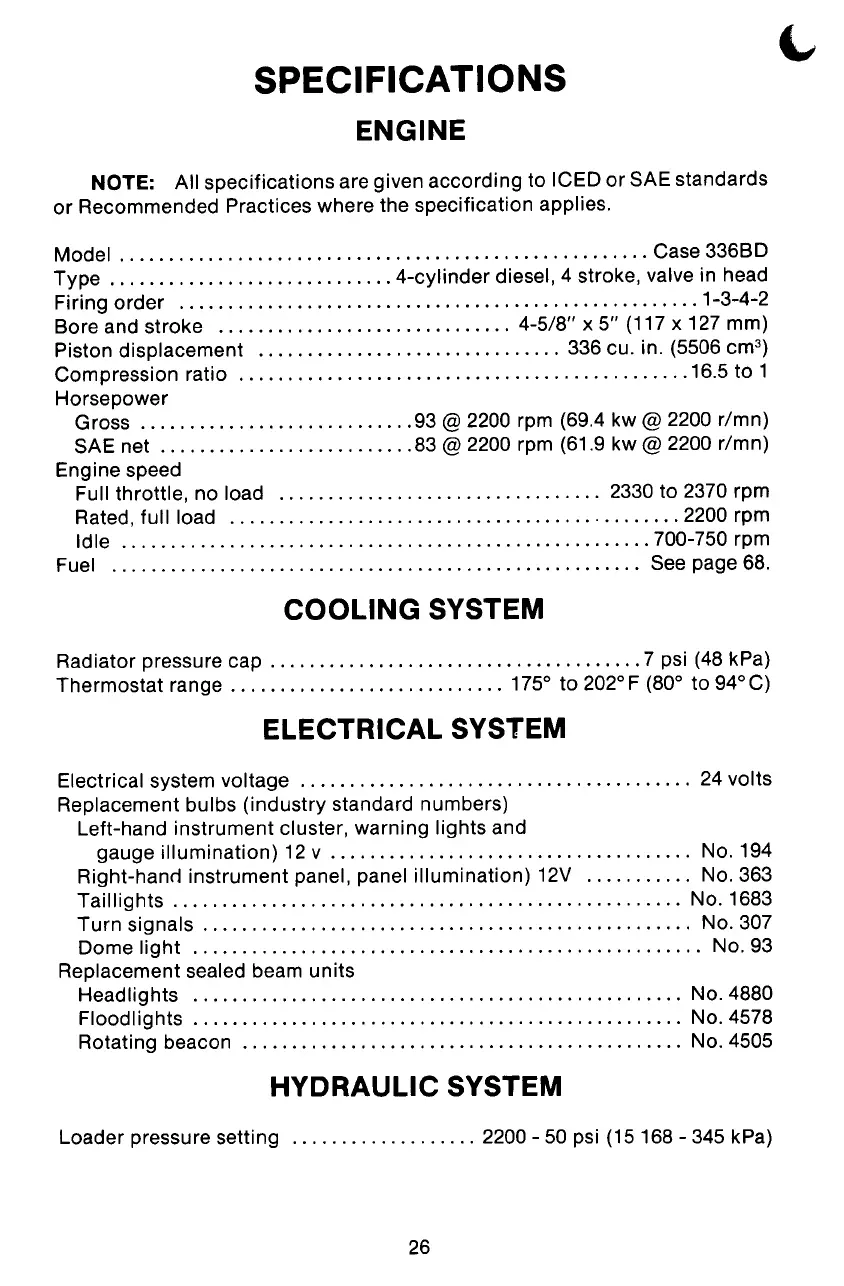

SPECIFICATIONS
ENGINE
NOTE:
All specifications are given according to ICED or SAE standards
or Recommended Practices where the specification applies.
Model Case 336BD
Type 4-cylinder diesel, 4 stroke, valve in head
Firing order 1-3-4-2
Bore and stroke 4-5/8" x 5" (117 x 127 mm)
Piston displacement 336 cu. in. (5506
ern")
Compression ratio 16.5 to 1
Horsepower
Gross 93 @ 2200 rpm (69.4 kw @ 2200
r/mn)
SAE net 83 @ 2200 rpm (61.9 kw @ 2200
r/mn)
Engine speed
Full throttle, no load 2330 to 2370 rpm
Rated, full load 2200 rpm
Idle 700-750 rpm
Fuel See page 68.
COOLING SYSTEM
Radiator pressure cap 7 psi (48 kPa)
Thermostat range 175
0
to 202
0
F (80
0
to 94
0
C)
ELECTRICAL SYSTEM
Electrical system voltage 24 volts
Replacement bulbs (industry standard numbers)
Left-hand instrument cluster, warning lights and
gauge illumination) 12 v No. 194
Right-ham'! instrument panel, panel illumination) 12V No. 363
Taillights No. 1683
Turn signals No. 307
Dome light No. 93
Replacement sealed beam units
Headlights No. 4880
Floodlights No. 4578
Rotating beacon No. 4505
HYDRAULIC SYSTEM
Loader pressure setting 2200 - 50 psi (15168 - 345 kPa)
26
