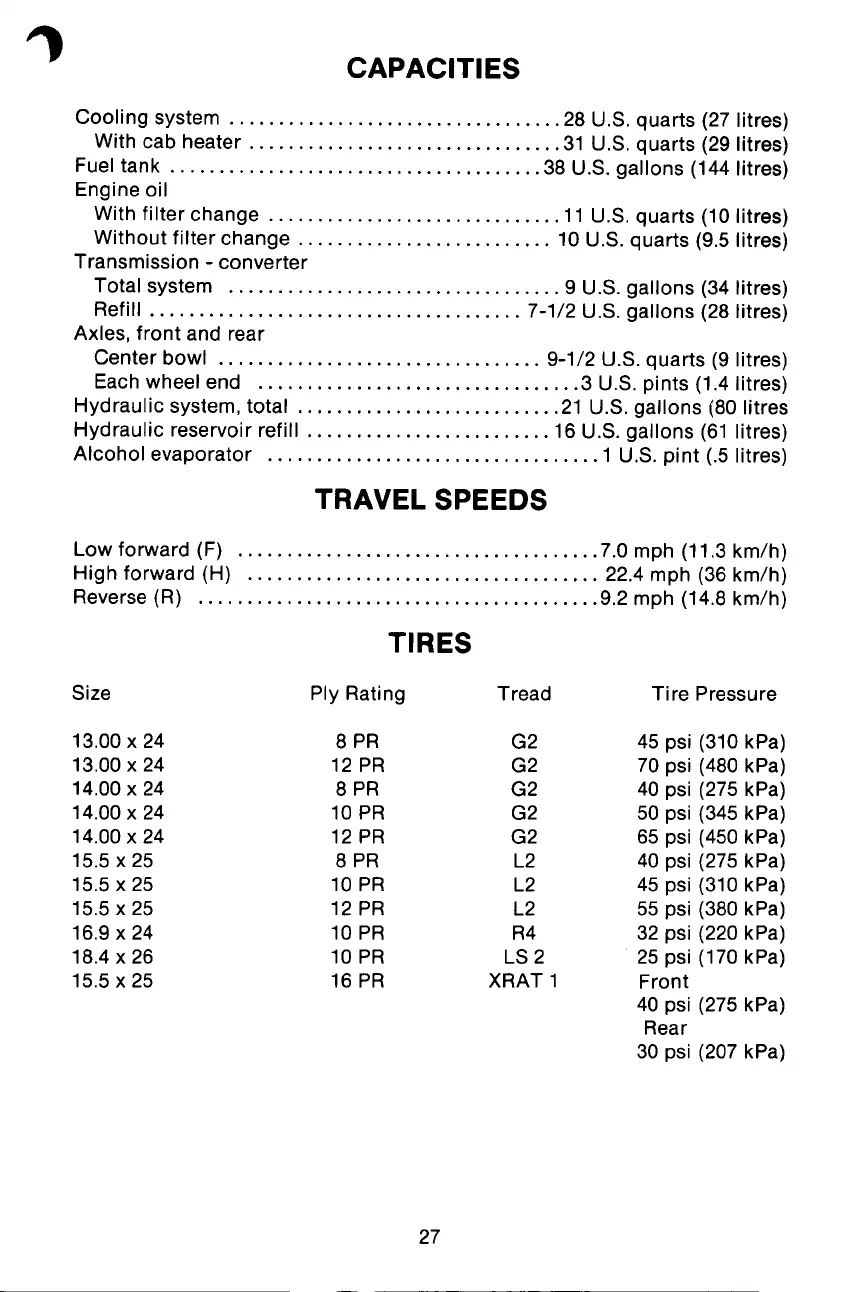

CAPACITIES
Cooling system 28 U.S. quarts (27 litres)
With cab heater 31 U.S. quarts (29 litres)
Fuel tank 38 U.S. gallons (144 litres)
Engine oil
With filter change 11 U.S. quarts (10 litres)
Without filter change 10 U.S. quarts (9.5 litres)
Transmission - converter
Total system 9 U.S. gallons (34 litres)
Refill " 7-1/2 U.S. gallons (28 litres)
Axles, front and rear
Center bowl 9-1/2 U.S. quarts (9 litres)
Each wheel end 3 U.S. pints (1.4Iitres)
Hydraulic system, total 21 U.S. gallons (80 litres
Hydraulic reservoir refill 16 U.S. gallons (61 litres)
Alcohol evaporator 1 U.S. pint (.5 litres)
TRAVEL SPEEDS
Low forward (F) 7.0 mph (11.3 km/h)
High forward (H) 22.4 mph (36 km/h)
Reverse (R) 9.2 mph (14.8 km/h)
TIRES
Size
Ply Rating
Tread Tire Pressure
13.00 x 24
8 PR
G2 45 psi (310 kPa)
13.00 x 24
12 PR G2 70 psi (480 kPa)
14.00 x 24
8 PR
G2 40 psi (275 kPa)
14.00 x 24
10 PR G2 50 psi (345 kPa)
14.00 x 24
12 PR G2 65 psi (450 kPa)
15.5 x 25
8 PR L2 40 psi (275 kPa)
15.5 x 25 10 PR
L2
45 psi (310 kPa)
15.5 x 25 12 PR
L2 55 psi (380 kPa)
16.9 x 24 10 PR R4 32 psi (220 kPa)
18.4 x 26
10 PR
LS 2 25 psi (170 kPa)
15.5 x 25 16 PR XRAT 1
Front
40 psi (275 kPa)
Rear
30 psi (207 kPa)
