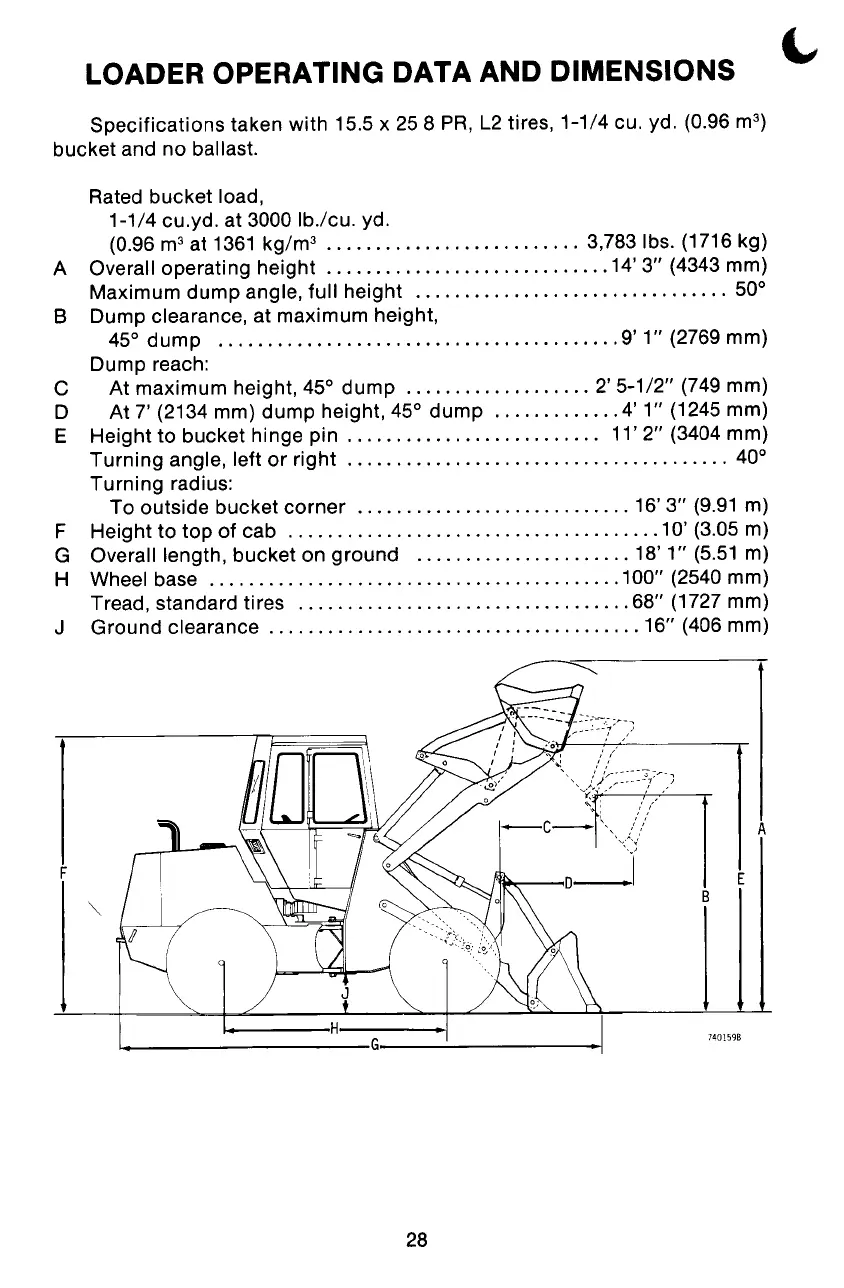

LOADER OPERATING DATA AND DIMENSIONS
Specifications taken with 15.5 x 25 8 PR, L2 tires, 1-1/4 cu. yd. (0.96 m
3)
bucket and no ballast.
Rated bucket load,
1-114 cu.yd. at 3000 Ib./cu. yd.
(0.96 m
3
at 1361
kg/m
3 •••••••••••••••••••••••••• 3,783 Ibs. (1716 kg)
A Overall operating height 14' 3" (4343 mm)
Maximum dump angle, full height 50°
B Dump clearance, at maximum height,
45°dump 9'1"(2769mm)
Dump reach:
C
At maximum height, 45° dump 2' 5-1/2" (749 mm)
D At
7'
(2134 mm) dump height, 45° dump 4' 1" (1245 mm)
E
Height to bucket hinge pin 11' 2" (3404 mm)
Turning angle, left or right 40°
Turning radius:
To outside bucket corner 16' 3" (9.91 m)
F
Height to top of cab 10' (3.05 m)
G Overall length, bucket on ground 18' 1" (5.51 m)
H Wheel base 100" (2540 mm)
Tread, standard tires 68" (1727 mm)
J
Ground clearance 16" (406 mm)
F
B
~ G, __
740159B
28
