The levers are held by electromagnets in the Raise and Rollback (Crowd)
positions and must be returned to Hold manually.
NOTE:
When loading the bucket (Tilt lever in Rollback position) on units
equipped with Return-To-Dig, hold the lever in position manually. It is possi-
ble for the lever to return to Hold before you get the desired amount of rollback.
When the control lever is placed in the Float position, the bucket is free to
follow the contour of the ground.

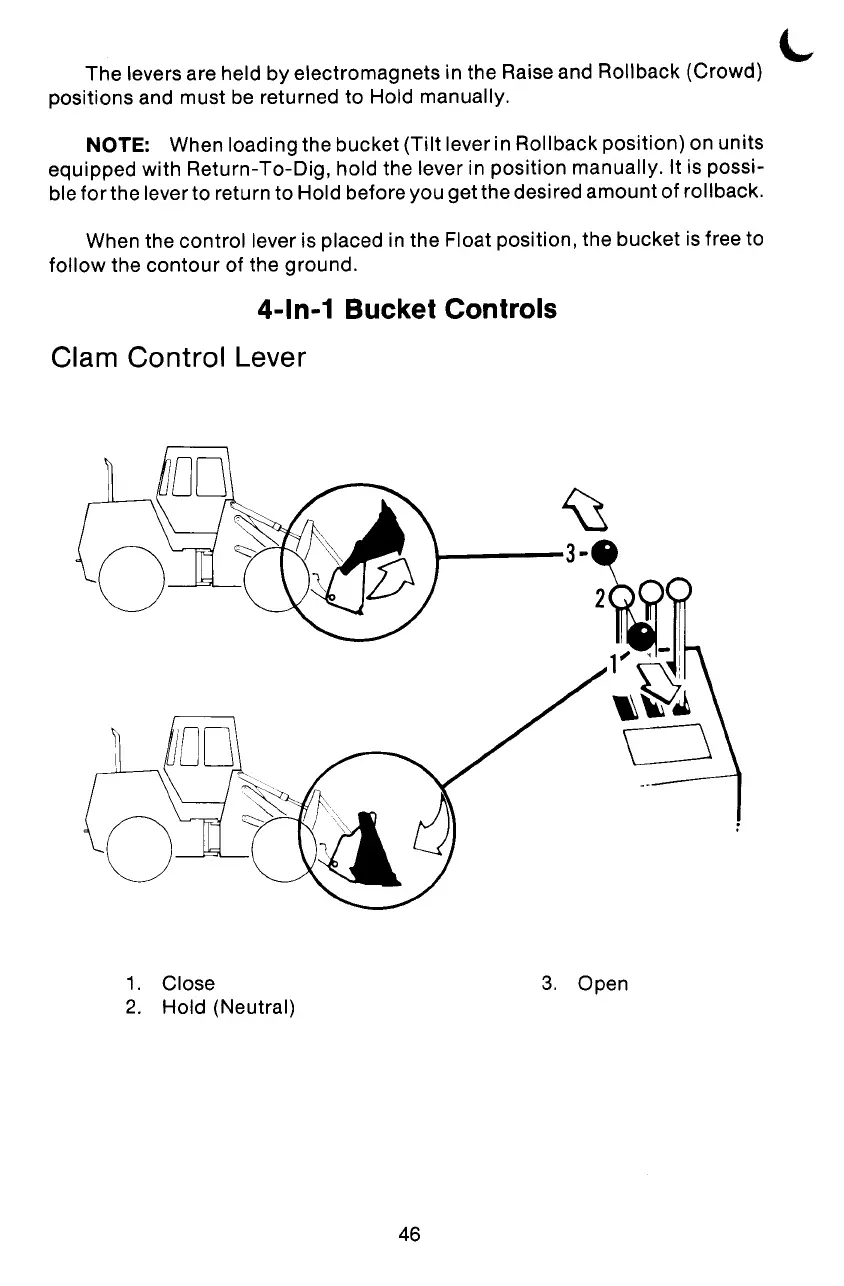

4-ln-1 Bucket Controls
Clam Control Lever
1. Close
2. Hold (Neutral)
3. Open
46
