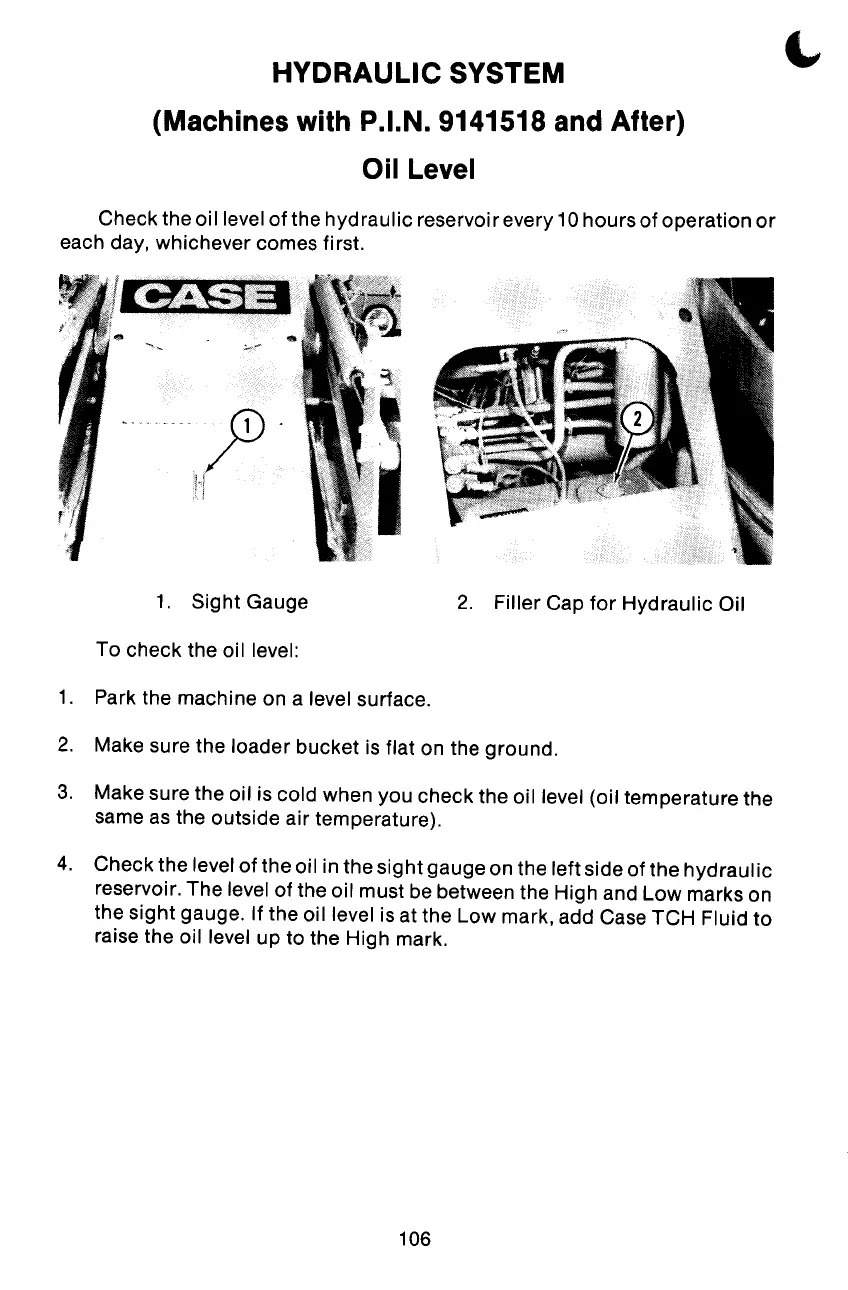

HYDRAULIC SYSTEM
(Machines with PJ.N. 9141518 and After)
Oil Level
Check the oil level of the hydraulic reservoir every 10hours of operation or
each day, whichever comes first.
1. Sight Gauge
To check the oil level:
1. Park the machine on a level surface.
2. Filler Cap for Hydraulic Oil
2. Make sure the loader bucket is flat on the ground.
3. Make sure the oil is cold when you check the oil level (oil temperature the
same as the outside air temperature).
4. Check the level of the oil in the sight gauge on the left side of the hydraulic
reservoir. The level of the oil must be between the High and Low marks on
the sight gauge. If the oil level is at the Low mark, add Case TCH Fluid to
raise the oil level up to the High mark.
106
