Operator's Seats

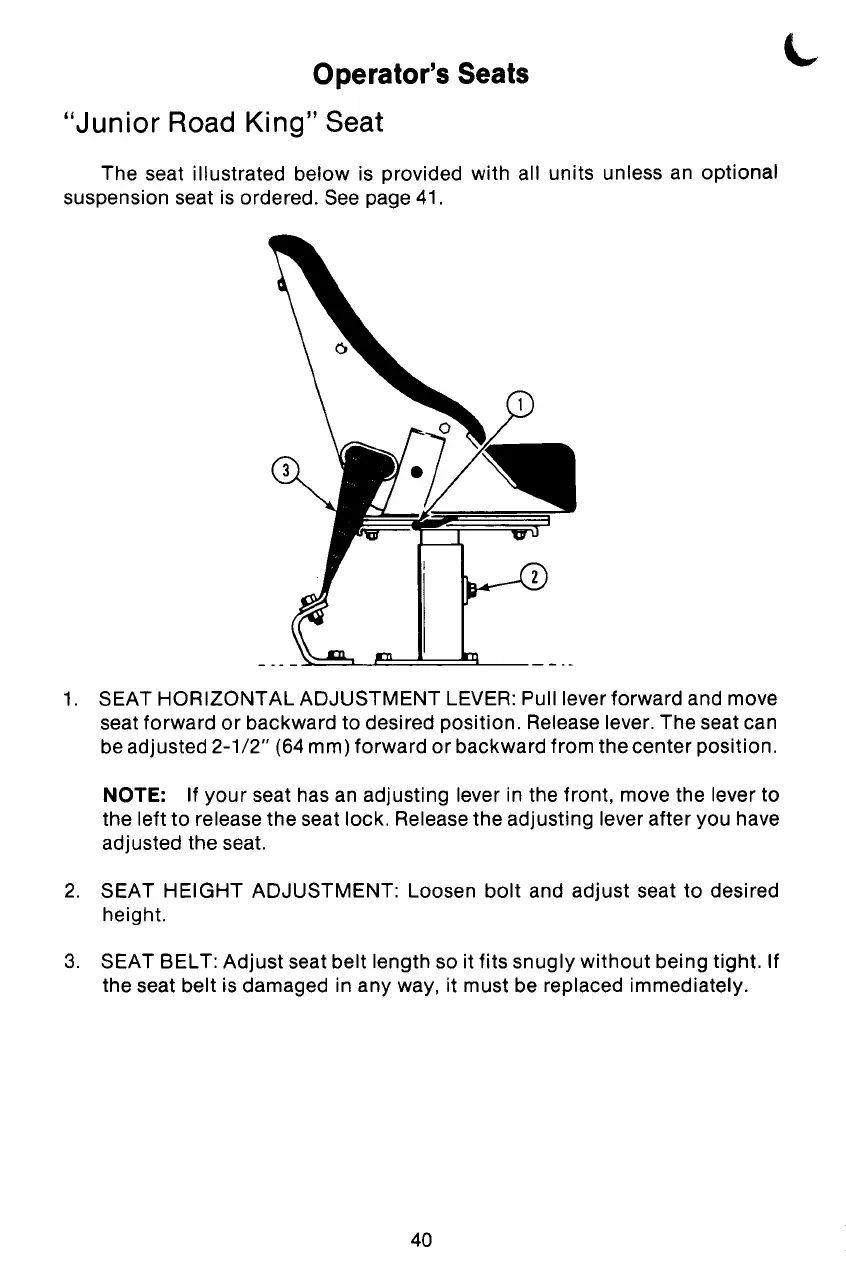

"Junior Road King" Seat
The seat illustrated below is provided with all units unless an optional
suspension seat is ordered. See page 41.
1. SEAT HORIZONTAL ADJUSTMENT LEVER: Pull lever forward and move
seat forward or backward to desired position. Release lever. The seat can
be adj usted 2-1/2" (64 mm) forward or backward from the center position.
NOTE:
If your seat has an adjusting lever in the front, move the lever to
the left to release the seat lock. Release the adjusting lever after you have
adjusted the seat.
2. SEAT HEIGHT ADJUSTMENT: Loosen bolt and adjust seat to desired
height.
3. SEAT BELT: Adjust seat belt length so it fits snugly without being tight. If
the seat belt is damaged in any way, it must be replaced immediately.
40
