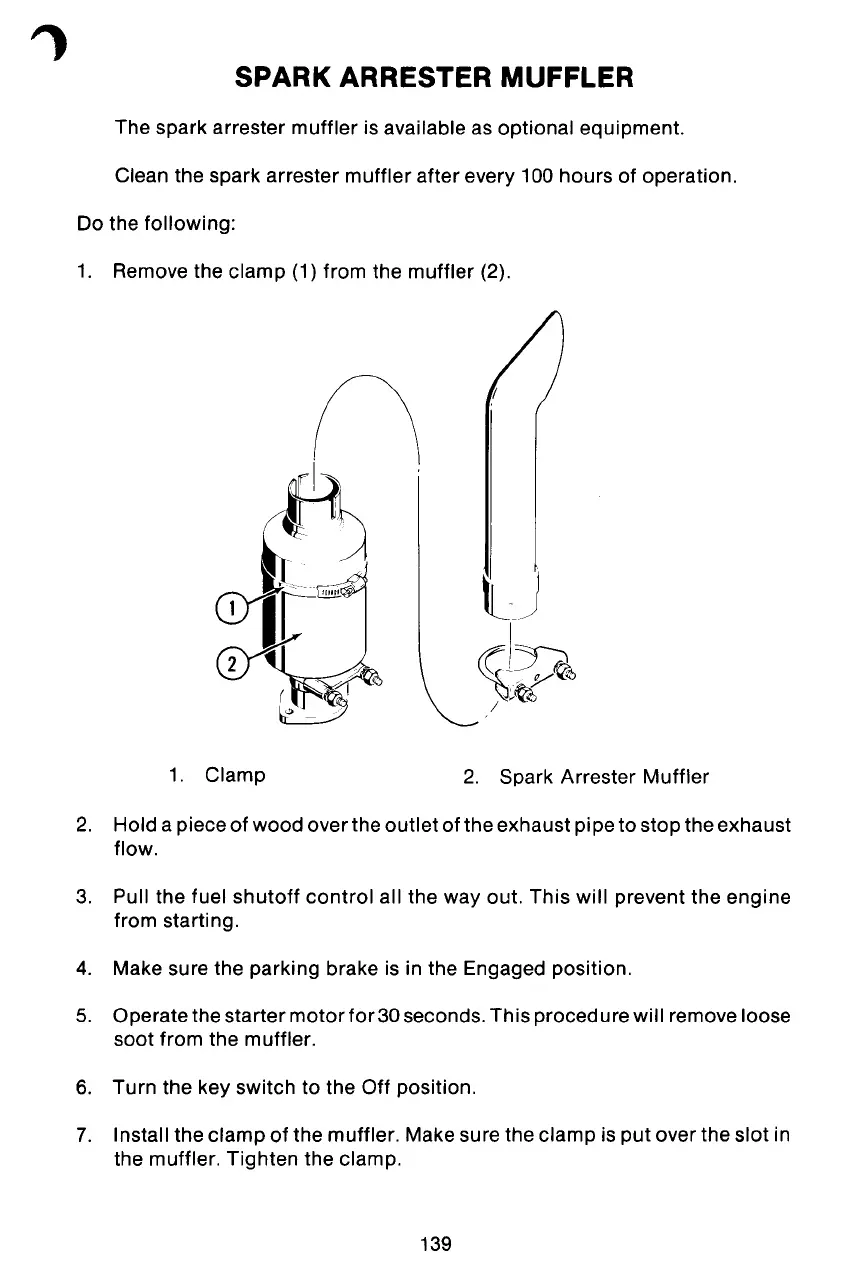

SPARK ARRESTER MUFFLER
The spark arrester muffler is available as optional equipment.
Clean the spark arrester muffler after every 100 hours of operation.
Do the following:
1. Remove the clamp (1) from the muffler (2).
1. Clamp
2. Spark Arrester Muffler
2. Hold a piece of wood over the outlet of the exhaust pipe to stop the exhaust
flow.
3. Pull the fuel shutoff control all the way out. This will prevent the engine
from starting.
4. Make sure the parking brake is in the Engaged position.
5. Operate the starter motor for 30 seconds. This proced urewiII remove loose
soot from the muffler.
6. Turn the key switch to the Off position.
7. Install the clamp of the muffler. Make sure the clamp is put over the slot in
the muffler. Tighten the clamp.
139
