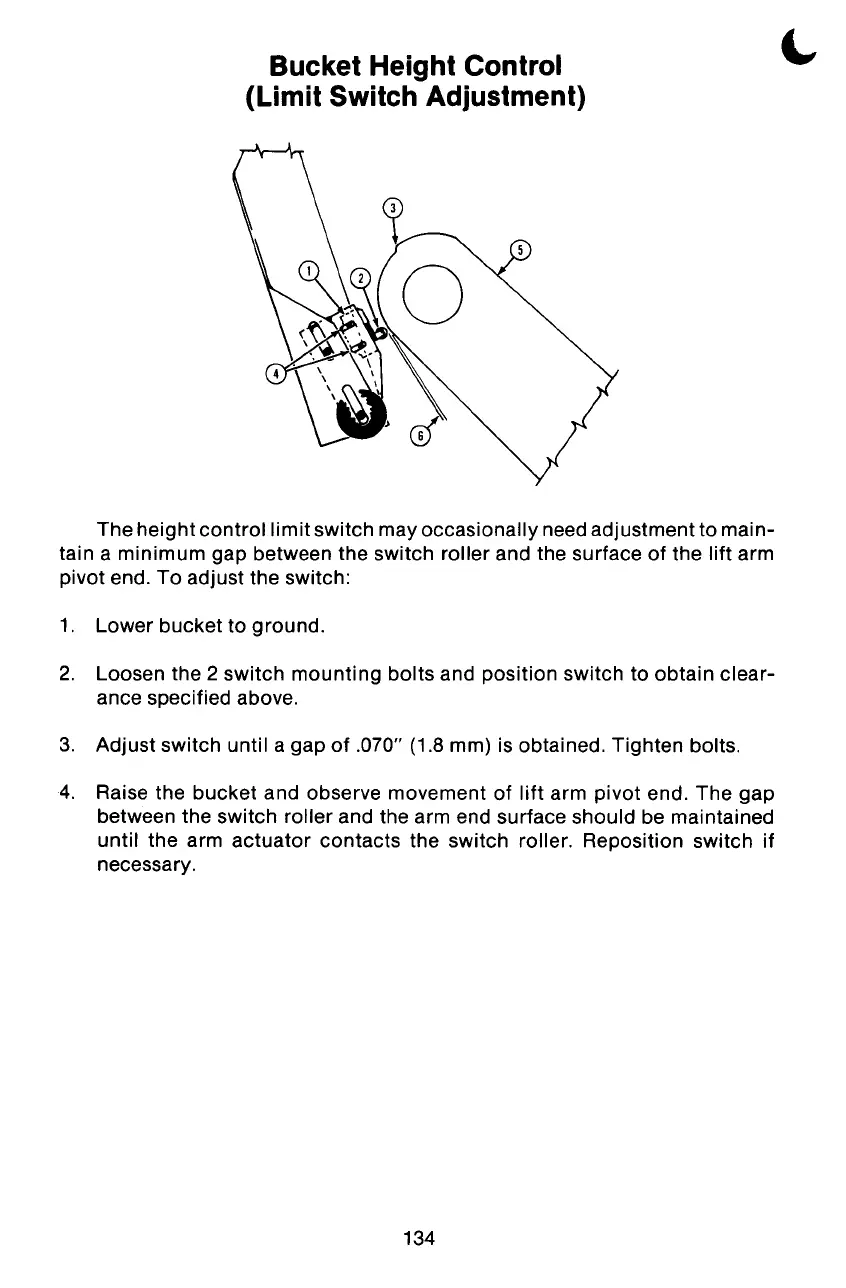

Bucket Height Control
(Limit Switch Adjustment)
The height control limit switch mayoccasionally needadjustment to main-
tain a minimum gap between the switch roller and the surface of the lift arm
pivot end. To adjust the switch:
1. Lower bucket to ground.
2. Loosen the 2 switch mounting bolts and position switch to obtain clear-
ance specified above.
3. Adjust switch until a gap of .070" (1.8mm) is obtained. Tighten bolts.
4. Raise the bucket and observe movement of lift arm pivot end. The gap
between the switch roller and the arm end surface should be maintained
until the arm actuator contacts the switch roller. Reposition switch if
necessary.
134
