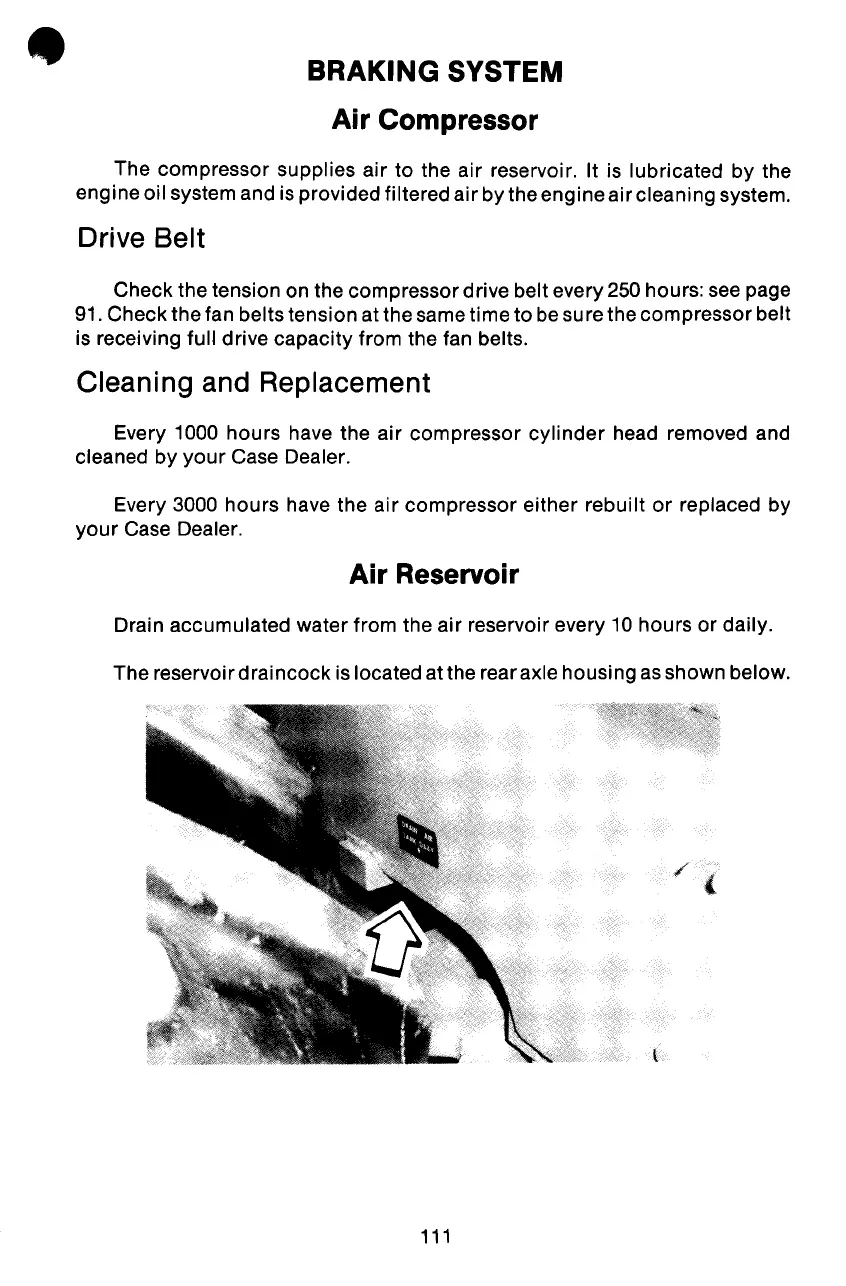

BRAKING SYSTEM
Air Compressor
The compressor supplies air to the air reservoir. It is lubricated by the
engine oil system and is provided filtered air by the engine air cleaning system.
Drive Belt
Check the tension on the compressor drive belt every 250 hours: see page
91. Check the fan belts tension at the same time to besure the compressor belt
is receiving full drive capacity from the fan belts.
Cleaning and Replacement
Every 1000 hours have the air compressor cylinder head removed and
cleaned by your Case Dealer.
Every 3000 hours have the air compressor either rebuilt or replaced by
your Case Dealer.
Air Reservoir
Drain accumulated water from the air reservoir every 10 hours or daily.
The reservoirdraincock is located at the rear axle housing as shown below.
111
