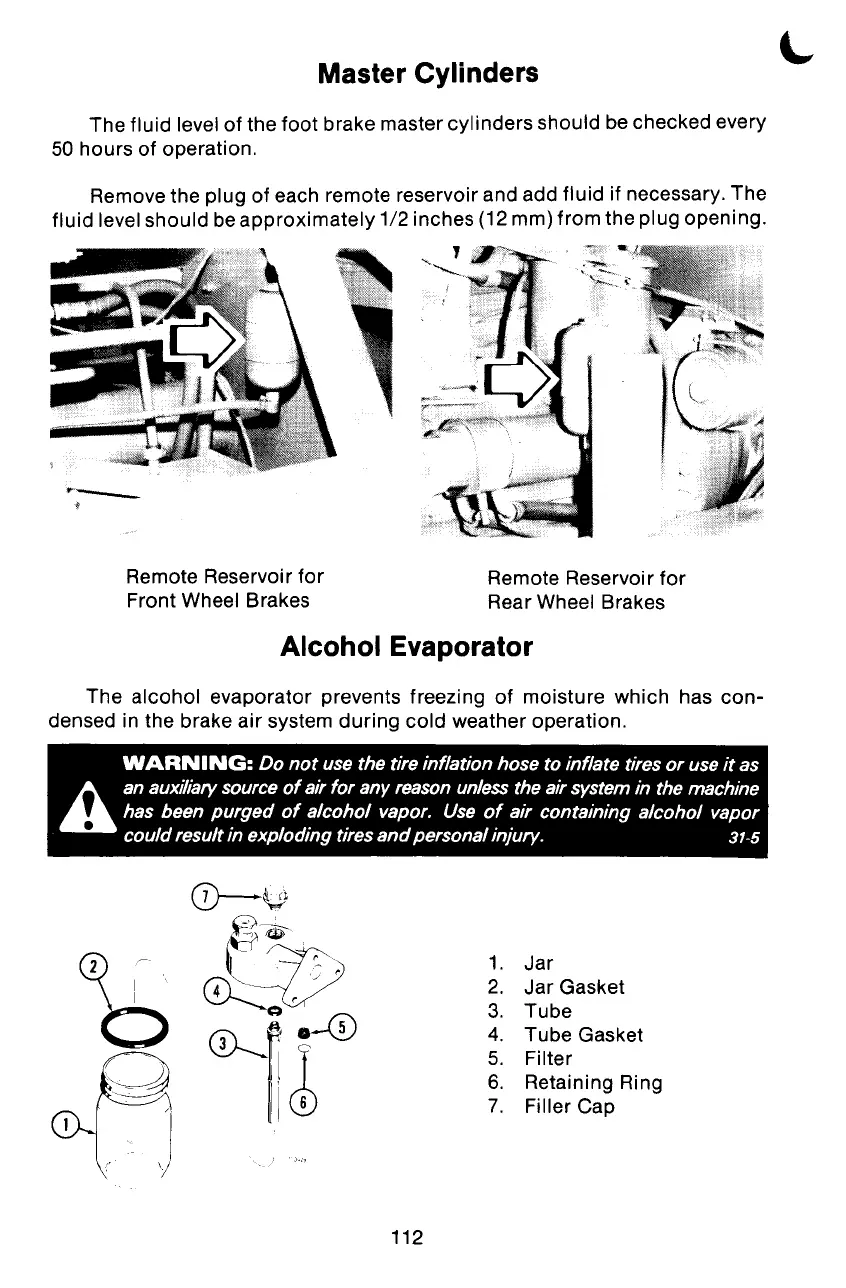

Master Cylinders
The fluid level of the foot brake master cylinders should be checked every
50 hours of operation.
Remove the plug of each remote reservoir and add fluid if necessary. The
fluid level should beapproximately
1/2
inches (12 mm) from the plug opening.
J
Remote Reservoir for
Front Wheel Brakes
Remote Reservoir for
Rear Wheel Brakes
Alcohol Evaporator
The alcohol evaporator prevents freezing of moisture which has con-
densed in the brake air system during cold weather operation.
WARNING:
Do not use the tire inflation hose to inflate tires or use it as
h
an auxiliary source of air for any reason unless the air system in the machine
.. has been purged of alcohol vapor. Use of air containing alcohol vapor
could result in exploding tires and personal injury. 31-5
1. Jar
2. Jar Gasket
3. Tube
4. Tube Gasket
5. Filter
6. Retaining Ring
7. Filler Cap
112
