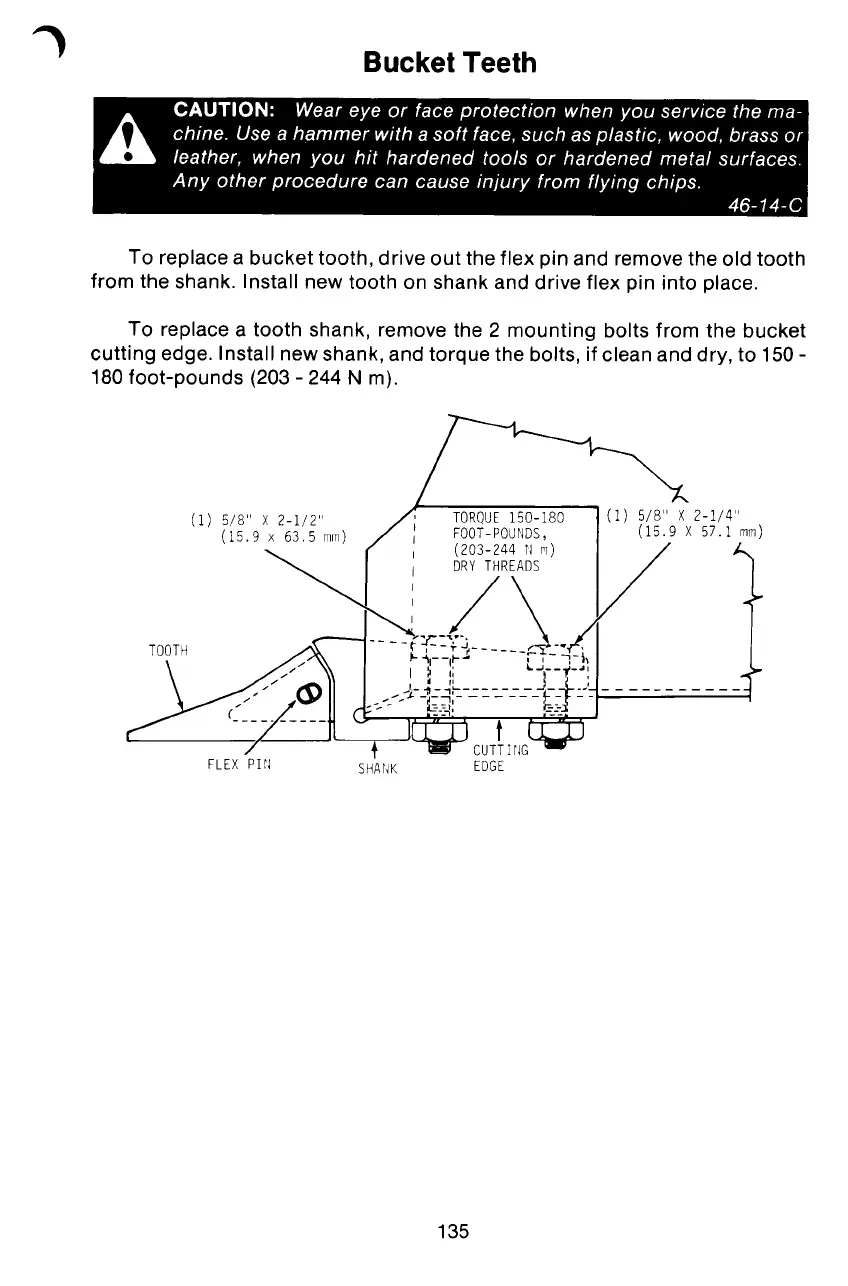

Bucket Teeth
CAUTION: Wear eye or face protection when you service the ma-
/);. chine. Use a hammer with a soft face, such as plastic, wood, brass or
.. leather, when you hit hardened tools or hardened metal surfaces.
Any other procedure can cause injury from flying chips.
46-14-C
To replace a bucket tooth, drive out the flex pin and remove the old tooth
from the shank. Install new tooth on shank and drive flex pin into place.
To replace a tooth shank, remove the 2 mounting bolts from the bucket
cutting edge. Install new shank, and torque the bolts, if clean and dry, to 150-
180 foot-pounds (203 - 244 N m).
135
