1l
3.

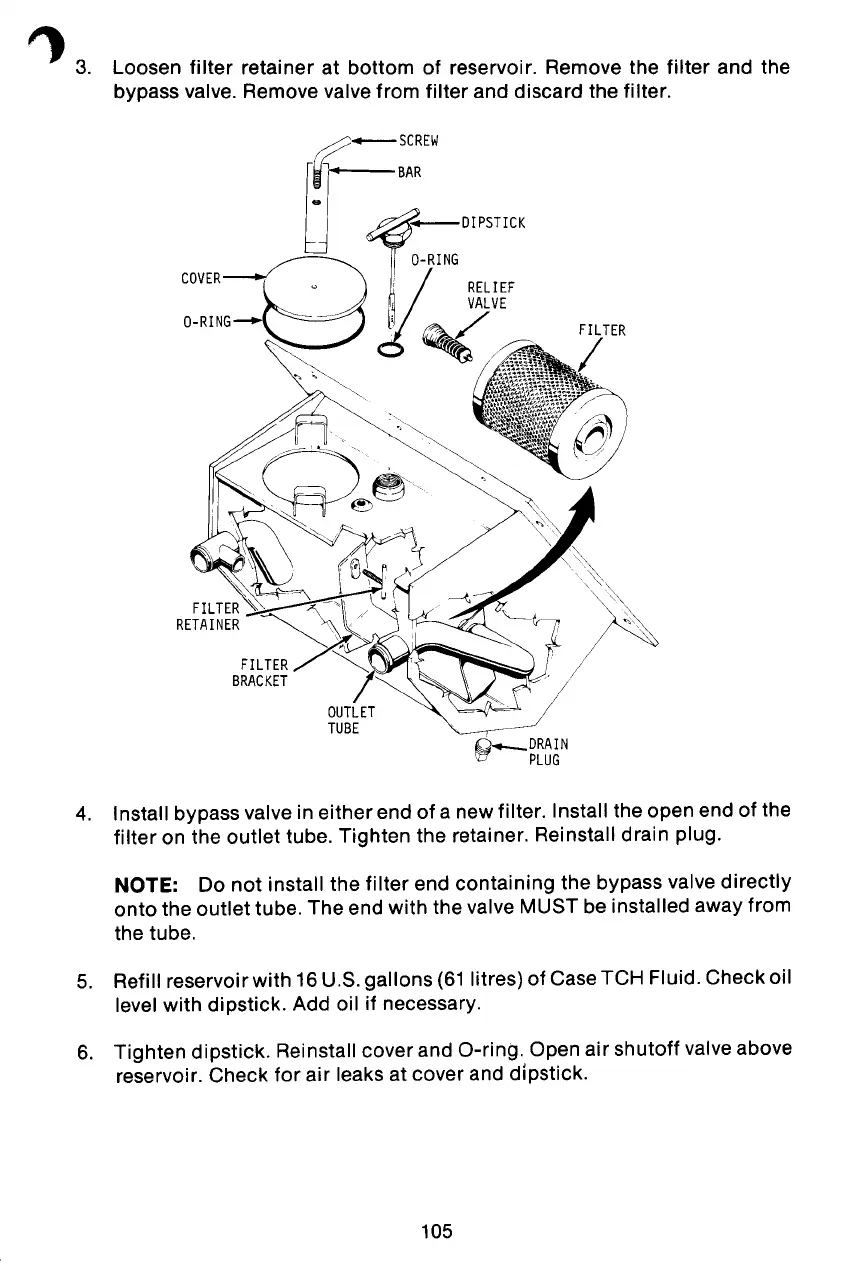

Loosen filter retainer at bottom of reservoir. Remove the filter and the
bypass valve. Remove valve from filter and discard the filter.
y-SCREW
r~1
BAR
U
';_OIPSTICK
-RING
COVER
Q
RELI EF
O_RlN:Q
JI
~VE
OUTLET
TUBE
,~
r
,,:::,,,
,
;
/
O_ORAIN
r:cJ
PLUG
4. Install bypass valve in either end of a new filter. Install the open end of the
filter on the outlet tube. Tighten the retainer. Reinstall drain plug.
NOTE:
Do not install the filter end containing the bypass valve directly
onto the outlet tube. The end with the valve MUST be installed away from
the tube.
5. Refill reservoir with 16 U.S. gallons (61Iitres) of Case TCH Fluid. Check oil
level with dipstick. Add oil if necessary.
6. Tighten dipstick. Reinstall cover and O-ring. Open air shutoff valve above
reservoir. Check for air leaks at cover and dipstick.
105
