1
ENGINE
AIR CLEANER
RESTR ICT ION
INDICATOR

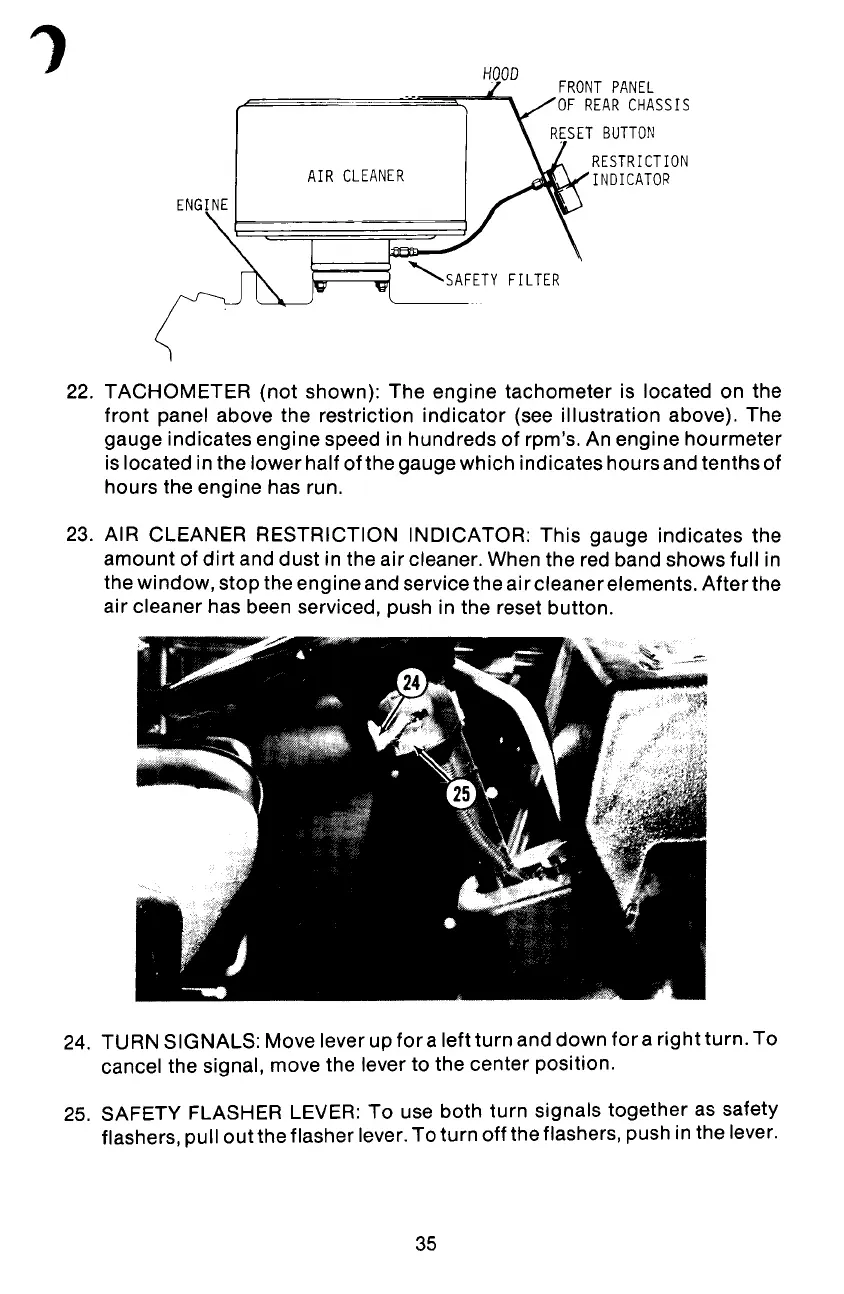

22. TACHOMETER (not shown): The engine tachometer is located on the
front panel above the restriction indicator (see illustration above). The
gauge indicates engine speed in hundreds of rpm's. An engine hourmeter
is located in the lower half of the gauge which indicates hours and tenths of
hours the engine has run.
23. AIR CLEANER RESTRICTION INDICATOR: This gauge indicates the
amount of dirt and dust in the air cleaner. When the red band shows full in
the window, stop the engine and service the aircleaner elements. After the
air cleaner has been serviced, push in the reset button.
24. TURN SIGNALS: Move lever up for a left turn and down for a right turn. To
cancel the signal, move the lever to the center position.
25. SAFETY FLASHER LEVER: To use both turn signals together as safety
flashers, pullout the flasher lever. To turn off the flashers, push in the lever.
35
