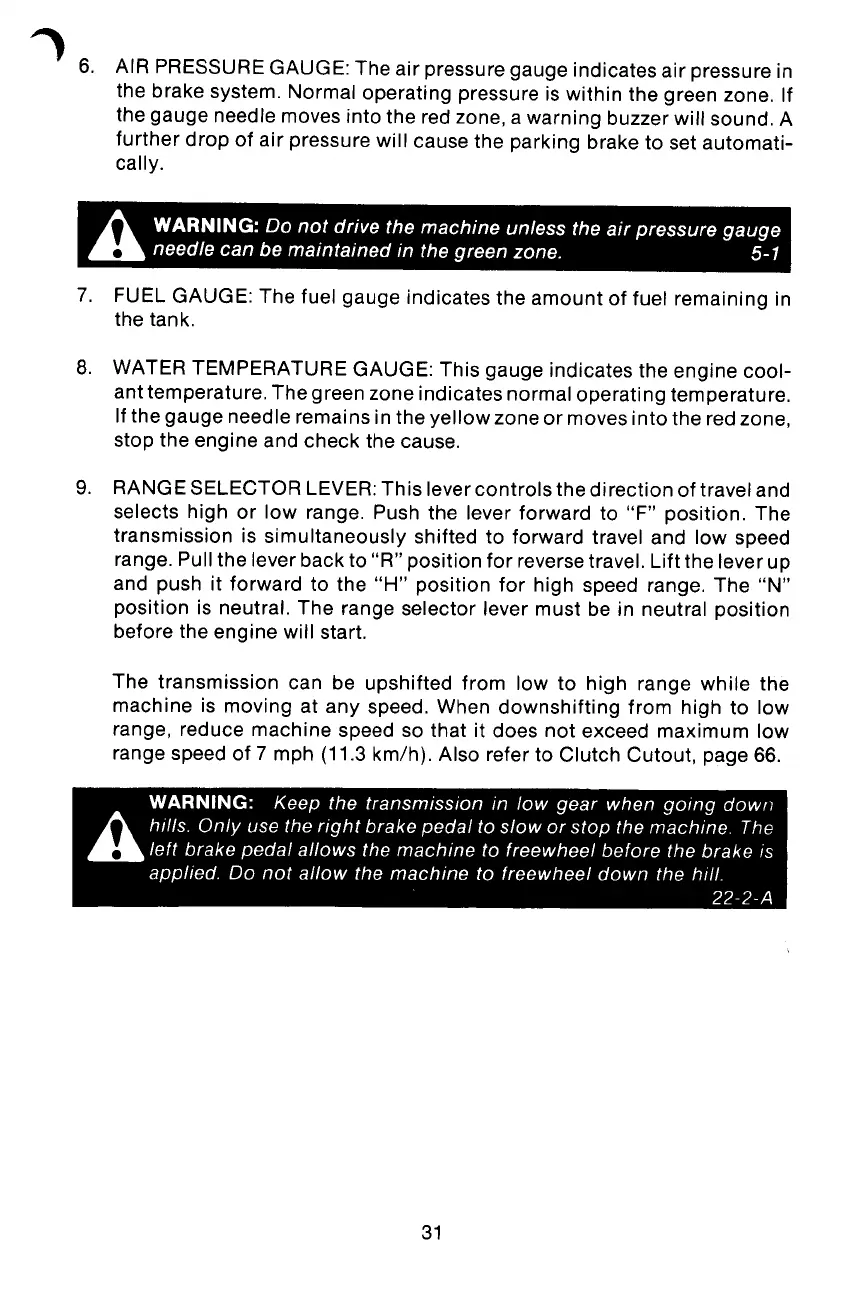

AIR PRESSURE GAUGE: The air pressure gauge indicates air pressure in
the brake system. Normal operating pressure is within the green zone. If
the gauge needle moves into the red zone, a warning buzzer will sound. A
further drop of air pressure will cause the parking brake to set automati-
cally.
/)._ WARNING:
Do not drive the machine unless the air pressure gauge
.. needle can be maintained in the green zone. 5-1
7. FUEL GAUGE: The fuel gauge indicates the amount of fuel remaining in
the tank.
8. WATER TEMPERATURE GAUGE: This gauge indicates the engine cool-
ant temperature. The green zone indicates normal operating temperature.
If the gauge needle remains in the yellow zone or moves into the red zone,
stop the engine and check the cause.
9. RANGE SELECTOR LEVER: This lever controls the direction of travel and
selects high or low range. Push the lever forward to "F" position. The
transmission is simultaneously shifted to forward travel and low speed
range. Pull the lever back to "R" position for reverse travel. Lift the lever up
and push it forward to the "H" position for high speed range. The "N"
position is neutral. The range selector lever must be in neutral position
before the engine will start.
The transmission can be upshifted from low to high range while the
machine is moving at any speed. When downshifting from high to low
range, reduce machine speed so that it does not exceed maximum low
range speed of 7 mph (11.3 km/h). Also refer to Clutch Cutout, page 66.
WARNING:
Keep the transmission in low gear when going down
/)._ hills. Only use the right brake pedal to slow or stop the machine. The
,,'eft brake pedal allows the machine to freewheel before the brake is
applied. Do not allow the machine to freewheel down the hill.
22-2-A
