~2.

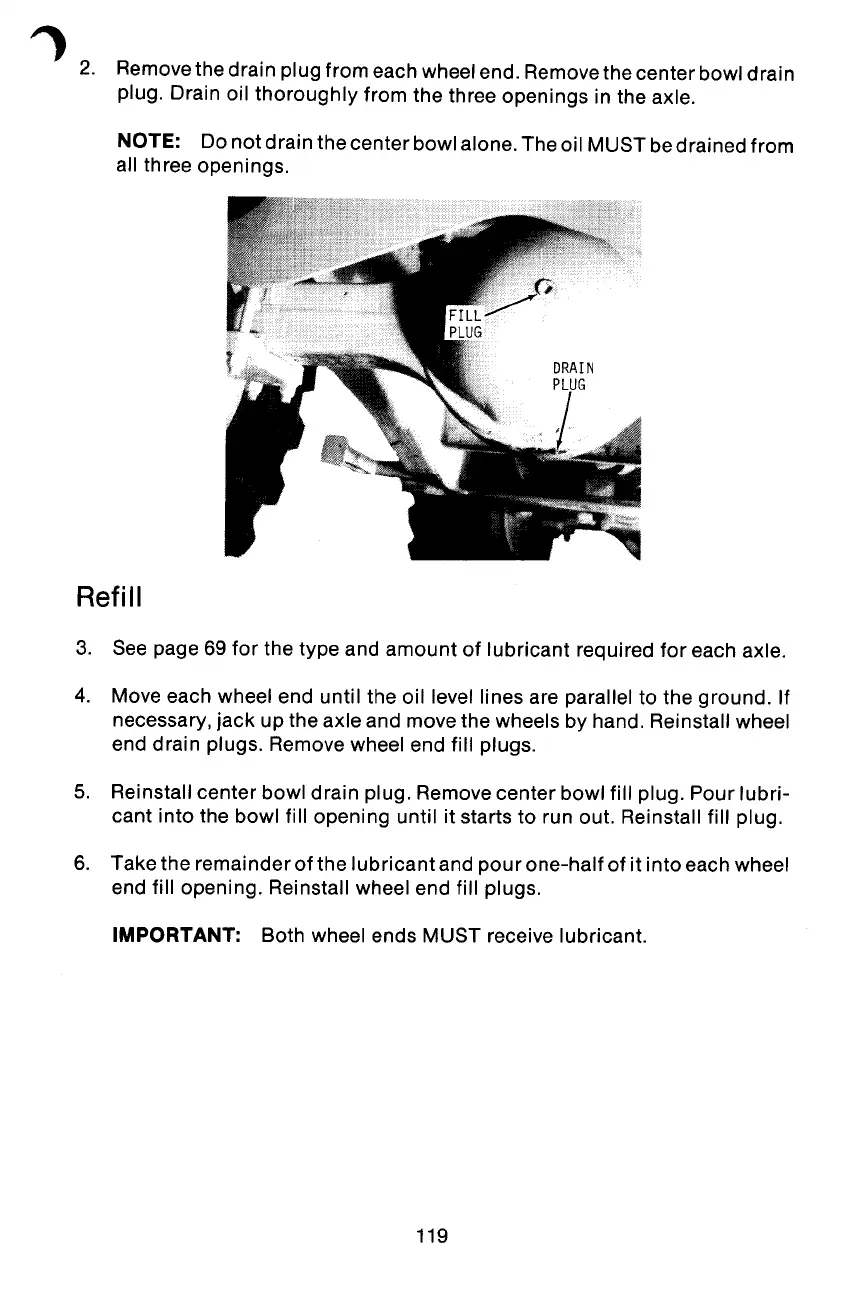

Remove the drain plug from each wheel end. Removethe center bowl drain
plug. Drain oil thoroughly from the three openings in the axle.
NOTE: Do not drain the center bowl alone. The oil MUST bedrained from
all three openings.
Refill
3. See page 69 for the type and amount of lubricant required for each axle.
4. Move each wheel end until the oil level lines are parallel to the ground. If
necessary, jack up the axle and move the wheels by hand. Reinstall wheel
end drain plugs. Remove wheel end fill plugs.
5. Reinstall center bowl drain plug. Remove center bowl fill plug. Pour lubri-
cant into the bowl fill opening until it starts to run out. Reinstall fill plug.
6. Take the remainder of the lubricant and pour one-half of it into each wheel
end fill opening. Reinstall wheel end fill plugs.
IMPORTANT: Both wheel ends MUST receive lubricant.
119
