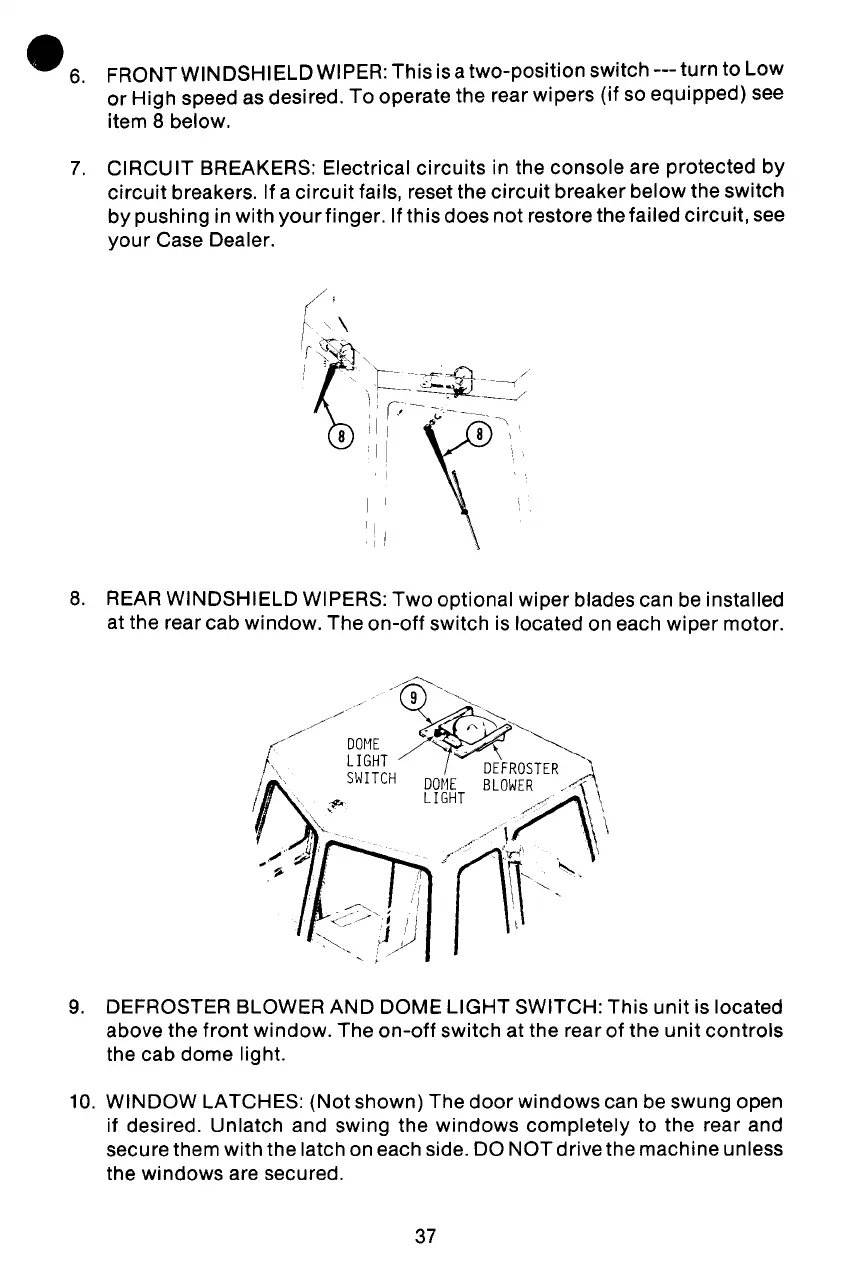

FRONT WINDSHIELD WIPER: This isa two-position switch ---turn to Low
or High speed as desired. To operate the rear wipers (if so equipped) see
item 8 below.
7. CIRCUIT BREAKERS: Electrical circuits in the console are protected by
circuit breakers. If a circuit fails, reset the circuit breaker below the switch
by pushing in with your finger. If this does not restore the failed circuit, see
your Case Dealer.
I I
'I
I!
8. REAR WINDSHIELD WIPERS: Two optional wiper blades can be installed
at the rear cab window. The on-off switch is located on each wiper motor.
9. DEFROSTER BLOWER AND DOME LIGHT SWITCH: This unit is located
above the front window. The on-off switch at the rear of the unit controls
the cab dome light.
10. WINDOW LATCHES: (Not shown) The door windows can be swung open
if desired. Unlatch and swing the windows completely to the rear and
secure them with the latch on each side. DO NOT drive the machine unless
the windows are secured.
37
