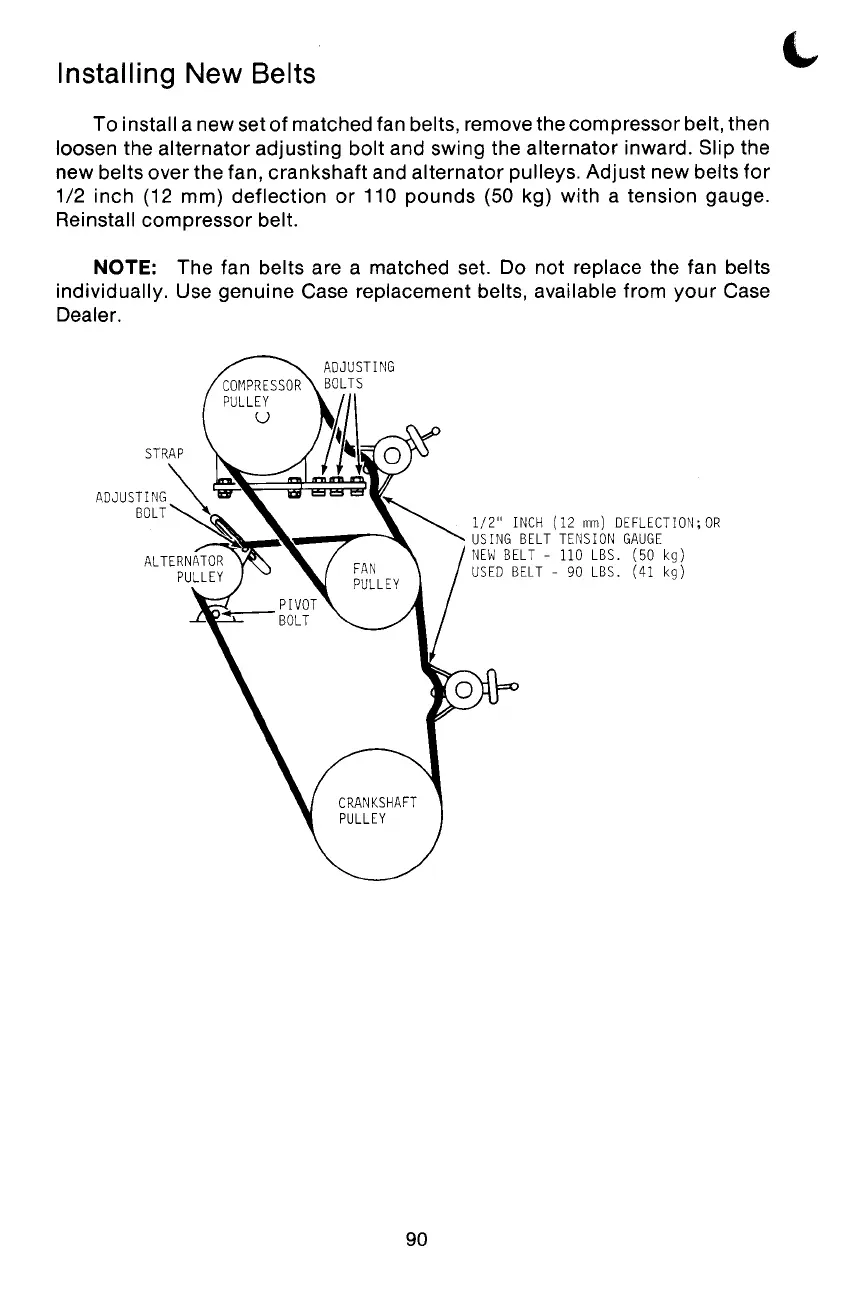

Installing New Belts
To install a new set of matched fan belts, remove the compressor belt, then
loosen the alternator adjusting bolt and swing the alternator inward. Slip the
new belts over the fan, crankshaft and alternator pulleys. Adjust new belts for
1/2
inch (12 mm) deflection or 110 pounds (50 kg) with a tension gauge.
Reinstall compressor belt.
NOTE: The fan belts are a matched set. Do not replace the fan belts
individually. Use genuine Case replacement belts, available from your Case
Dealer.
90
