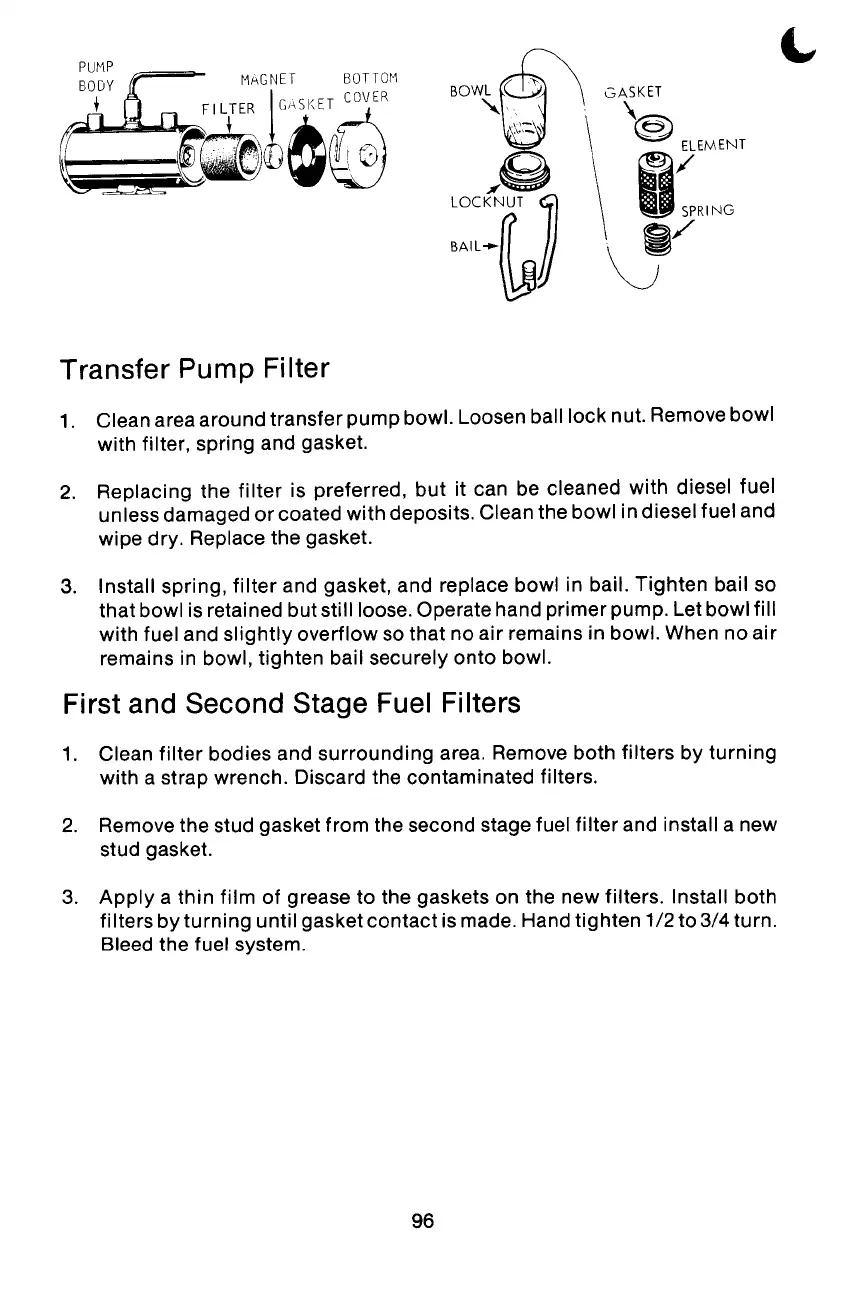

Transfer Pump Filter
GASKET
\§)
ELEMENT
itRiNG
.
~/
\J
1. Clean area around transfer pump bowl. Loosen ball lock nut. Remove bowl
with filter, spring and gasket.
2. Replacing the filter is preferred, but it can be cleaned with diesel fuel
unless damaged or coated with deposits. Clean the bowl in diesel fuel and
wipe dry. Replace the gasket.
3. Install spring, filter and gasket, and replace bowl in bail. Tighten bail so
that bowl is retained but still loose. Operate hand primer pump. Let bowl fill
with fuel and slightly overflow so that no air remains in bowl. When no air
remains in bowl, tighten bail securely onto bowl.
First and Second Stage Fuel Filters
1. Clean filter bodies and surrounding area. Remove both filters by turning
with a strap wrench. Discard the contaminated filters.
2. Remove the stud gasket from the second stage fuel filter and install a new
stud gasket.
3. Applya thin film of grease to the gaskets on the new filters. Install both
filters by turning until gasket contact is made. Hand tighten 1/2 to 3/4 turn.
Bleed the fuel system.
