Step 32: Clock Roof Assembly
Part 2

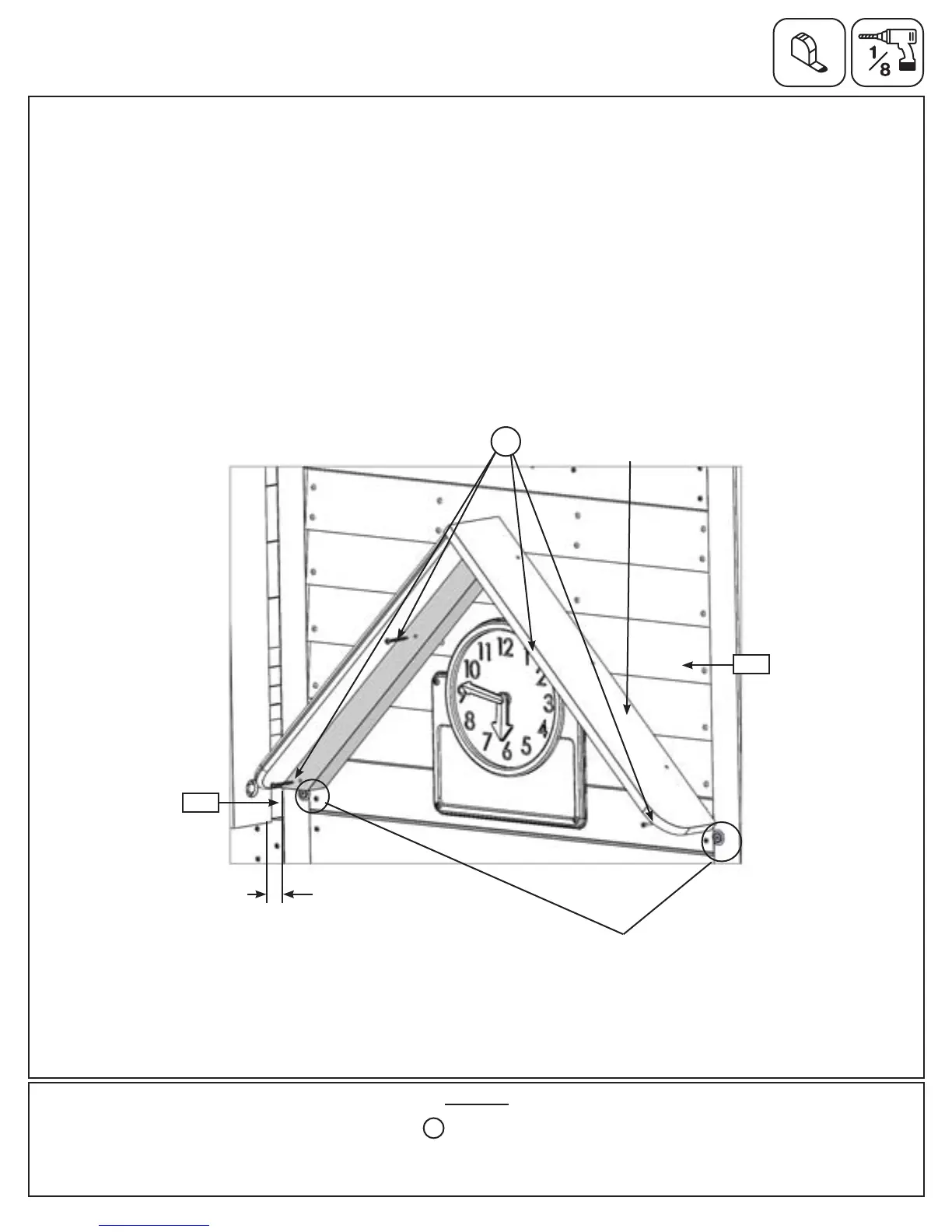

C: Place Small Roof Support Assembly on (040) Cafe Wall Window Panel centred over the Clock so the bottom
of the supports touches the tops of the Wafer Bolts on both sides as shown in g. 32.1 and 32.4. Make sure the
distance from (121) Short Joist to tip of Small Roof Support Assembly is 1-3/4”.
D: Pre-drill with a 1/8” drill bit then attach Small Roof Support Assembly to (040) Cafe W
all Window Panel with 4
(S3) #8 x 2-1/2” Wood Screws. (g. 32.4)
4 x #8 x 2-1/2” Wood Screw
Hardware
Fig. 32.4
S3
Small Roof
Support Assembly
S3
040
121
1-3/4”
Notice where this sits.
