Cedar Summit F25650 - Attach Steering Wheel and Telescope

Hardware Other Parts
1 x 1/4 x 2-1/2” Wafer Lag
(5/16”atwasher)
Step 17: Attach Steering Wheel and Telescope
A: Pre-drill with a 1/8” drill bit, then attach Steering Wheel to (164) Centre Wall Board and (165) Steering Wheel
Dash with 1 (WL5) 1/4 x 2-1/2” Wafer Lag (with at washer). (g. 17.1 and 17.2)
B: On the Front of the assembly attach Telescope to (161) Crowsnest Post and (162) Crowsnest Side with 2
(S15) #8 x 1-3/4” Wood Screws. (g. 17.1 and 17.3)

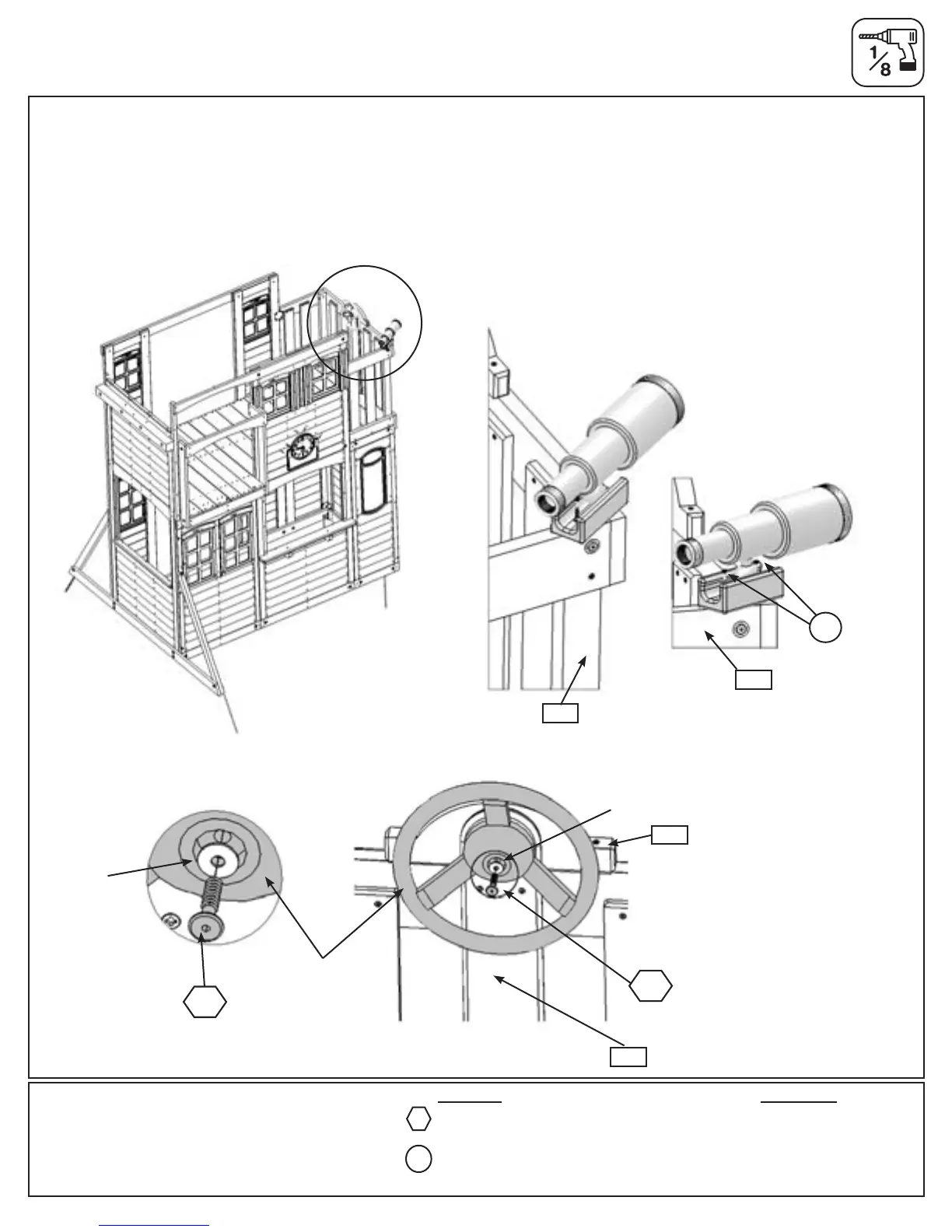

Fig. 17.1
165
5/16” Flat
Washer
1 x Steering Wheel
1 x Telescope
Inside Fort View
5/16” Flat
Washer
Steering Wheel
WL5
Fig. 17.3
Fig. 17.2
WL5
WL5
164
Front
2 x #8 x 1-3/4” Wood Screw
S15
S15
162
161
