Cedar Summit F25650 - Page 73

Step 16: Crowsnest Assembly
Part 6

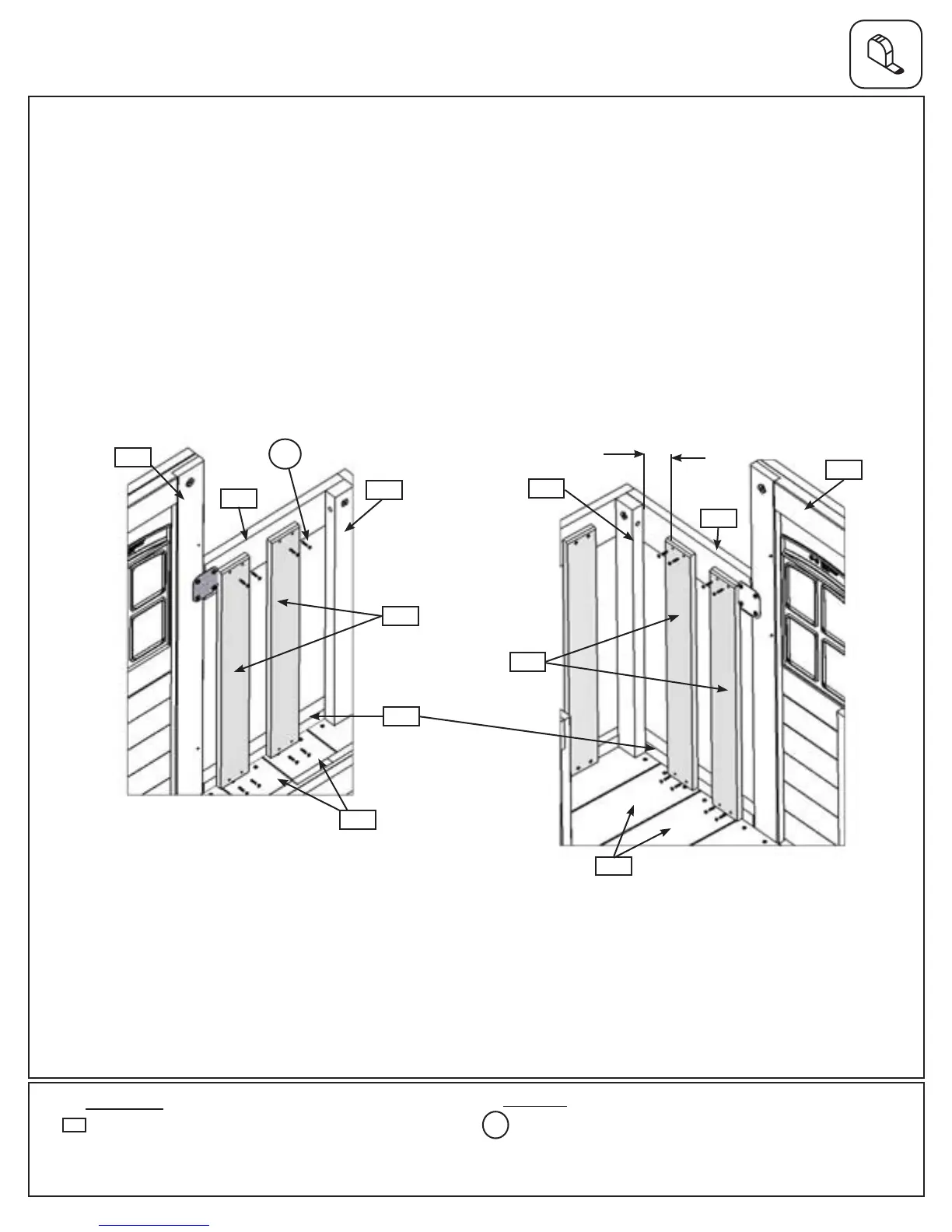

M: Measure 2-5/8” from both (161) Crowsnest Posts and attach 1 (166) Wall Board per side to (162) Crowsnest
Sides and (163) Crowsnest Bottoms, tight to (152) Floors, with 4 (S20) #8 x 1-3/8” Wood Screws per board. (g.
16.10 and 16.11)
N: Evenly space 1 (166) Wall Board between (040) Cafe Wall Window Panel and (166) Wall Board and between
(050) Narrow Window Panel and (166) Wall Board, tight to (152) Floors, then attach to (162) Crowsnest Sides
and (163) Crowsnest Bottoms with 4 (S20) #8 x 1-3/8” Wood Screws per board. (g. 16.10 and 16.11)
Hardware
Fig. 16.11
16 x #8 x 1-3/8” Wood Screw
162
S20
161
x 4 per board
Fig. 16.10
Wood Parts
4 x Wall Board FSC 1 x 4 x 26-1/2”
166
166
166
S20
2-5/8”
161
162
152
050
163
152
040
