Wood Parts
K: Measure 2-3/4” from each (161) Crowsnest Post and attach 2 (166) Wall Boards to (160) Crowsnest Top and
(092) Floor End, tight to (153) Floor A, with 4 (S20) #8 x 1-3/8” Wood Screws per board. (g. 16.9)
L: Evenly space 2 more (166) Wall Boards between (164) Centre Wall Board and the rst (166) Wall Boards,
tight to (153) Floor A, then attach to (160) Crowsnest Top and (092) Floor End with 4 (S20) #8 x 1-3/8” Wood
Screws per board. (g. 16.9)
4 x Wall Board FSC 1 x 4 x 26-1/2”
166
Step 16: Crowsnest Assembly
Part 5
Hardware

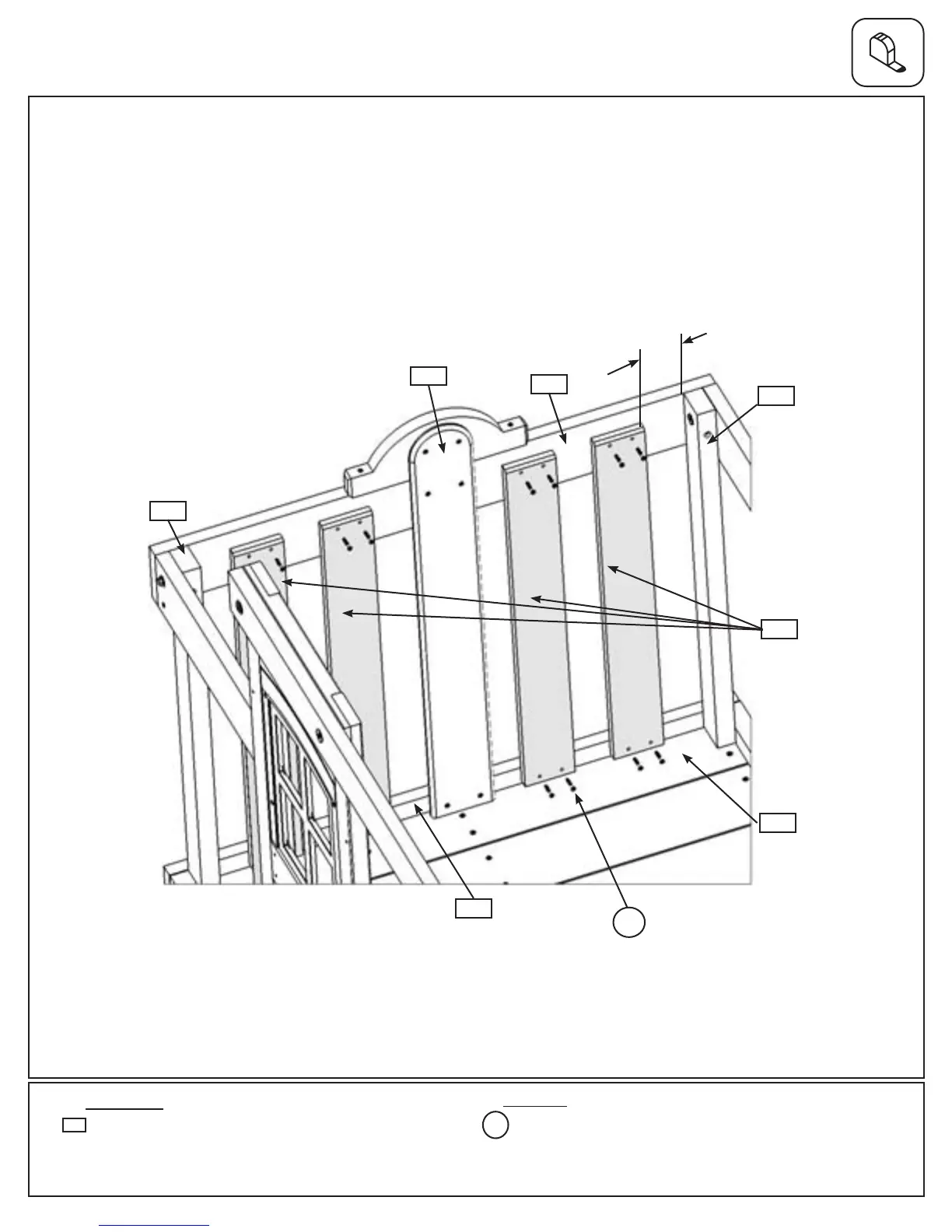

Fig. 16.9
16 x #8 x 1-3/8” Wood Screw
164
S20
161
160
S20
x 4 per board
2-3/4”
092
161
153
166
72 support@cedarsummitplay.com
