Step 36: Attach Steel Hand Grips to Fort
Hardware
Pre-drill all holes using a 1/8” drill bit before installing the Wafer Lags

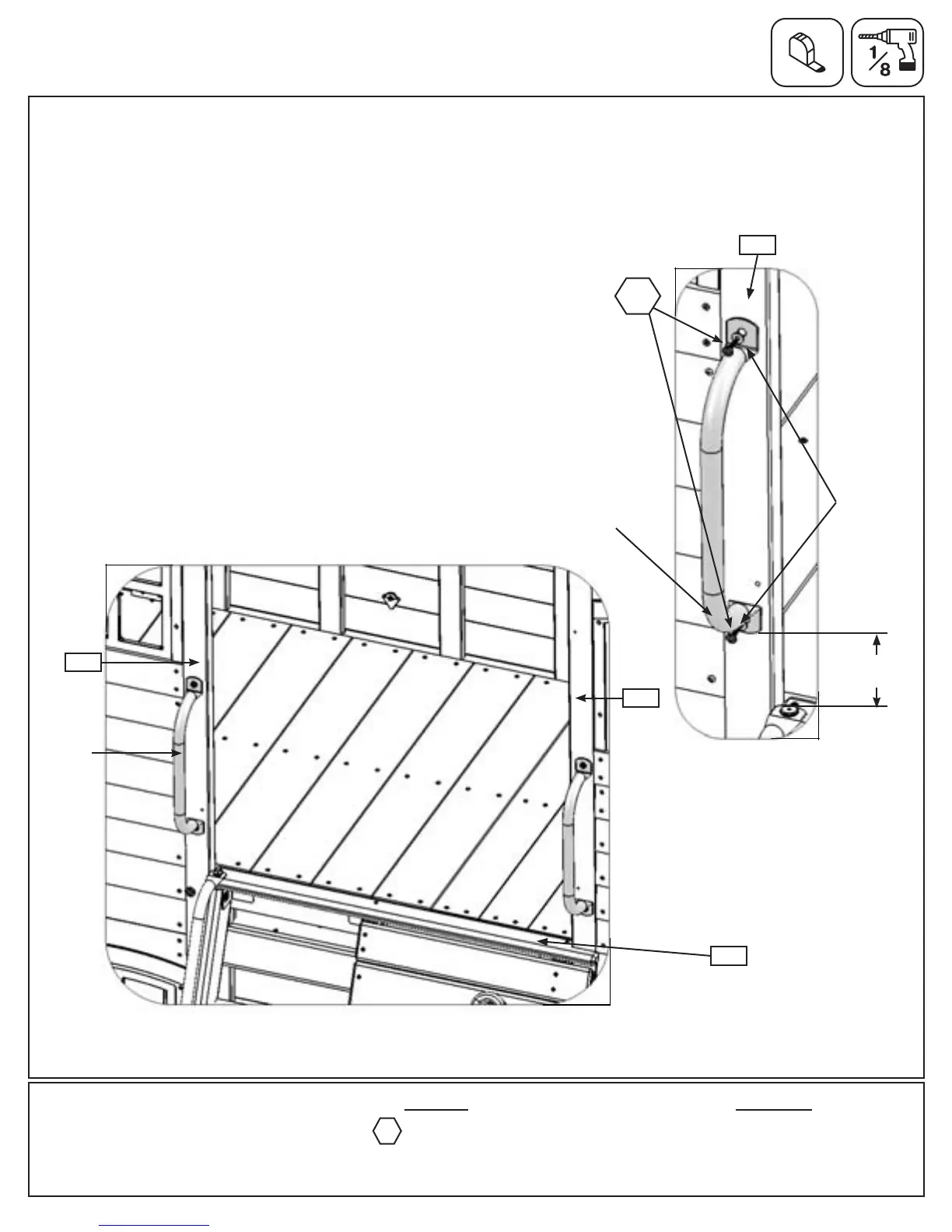

A: Measure 6” from the top of (025) Top Ladder on each (050) Narrow Window Panel and attach 1 Steel
Hand Grip per panel with 2 (WH2) #12 x 1” Wafer Screw (with at washer) per Steel Hand Grip. (g. 36.1 and
36.2)
4 x #12 x 1” Wafer Head Screw
(3/16”atwasher)
WH2
Fig. 36.1
3/16” Flat
Washer
025
Steel
Hand
Grip
050
Steel Hand Grip
Other Parts
2 x Steel Hand Grip
WH2
050
050
6”
Fig. 36.2
