Step 4: Panel Preparation
Part 1
Hardware

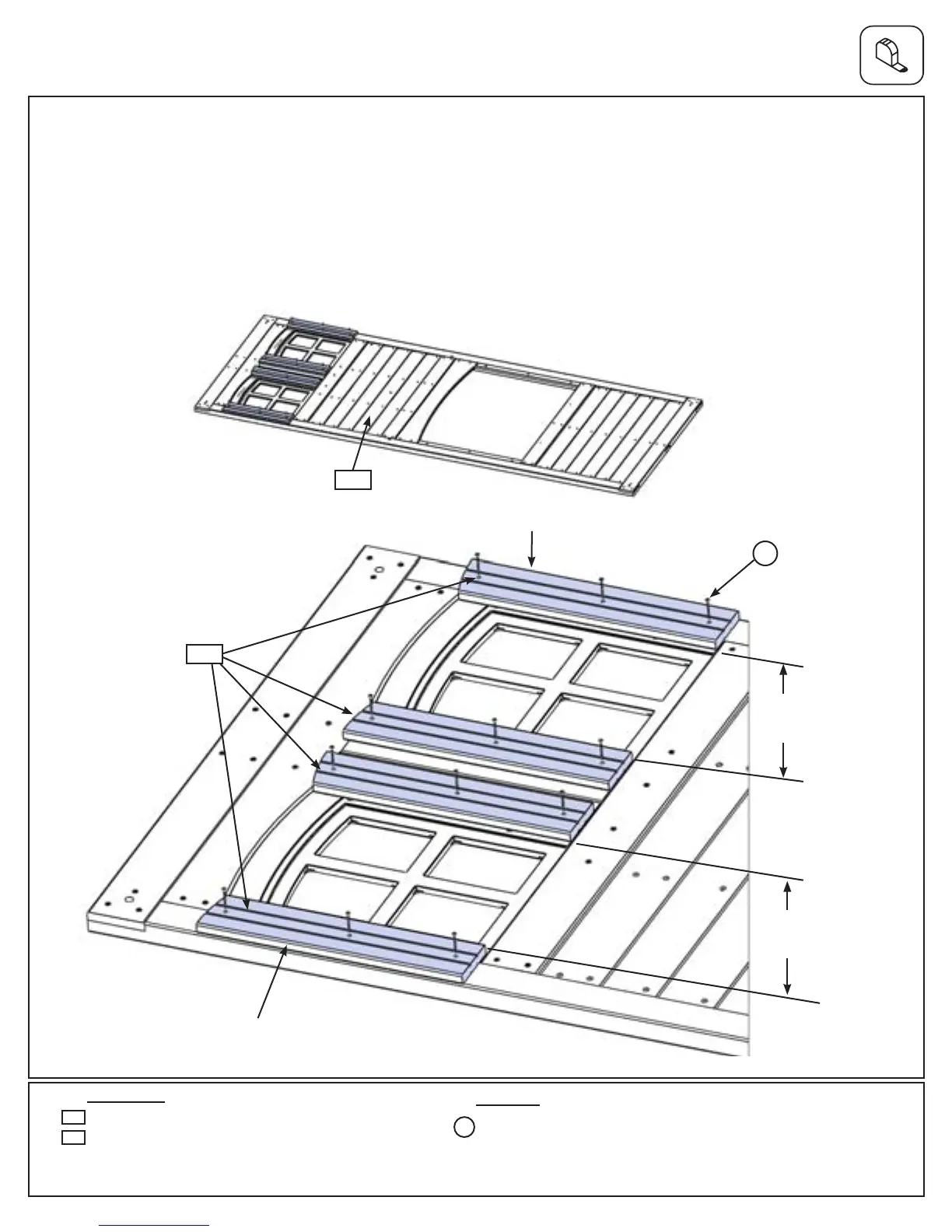

A: On the outside of (040) Cafe Wall Window Panel place 2 (041) Window Shutters on each side of both windows.
This distance between the shutters should be 11”. (g. 4.1 and 4.2)
B: Attach each (041) Window Shutter to (040) Cafe Wall Window Panel with 3 (TS) #6 x 30 mm Trim Screws per
shutter. (g. 4.2) Note: 2 outer Shutters need to be ush to outside edge of panel. (g.4.2)
12 x #6 x 30 mm Trim Screw
TS
1 x Cafe Wall Window Panel FSC 1-1/4 x 35-1/2 x 99”
4 x Window Shutter FSC 5/8 x 3 x 15”
Wood Parts
040
041
Fig. 4.1
040
TS
x 3 per
Window Shutter
Fig. 4.2
041
11”
11”
Flush
Flush
