Step 14: Attach Floor Joist
A: With one person inside the assembly line (140) Floor Joist up to the pilot holes on the (092) Floor End then
attach with 2 (S4) #8 x 3” Wood Screws. The joist should rest on (061) Door Wall Window Panel. (g. 14.1 and
14.2)
B: Line (140) Floor Joist up to the pilot holes on the (043) SW Side Panel, making sure the top of the joist is
ush to the top of the panel board shown in g. 14.3 then attach with 2 (S4) #8 x 3” Wood Screws. (g. 14.1,
14.3 and 14.4)

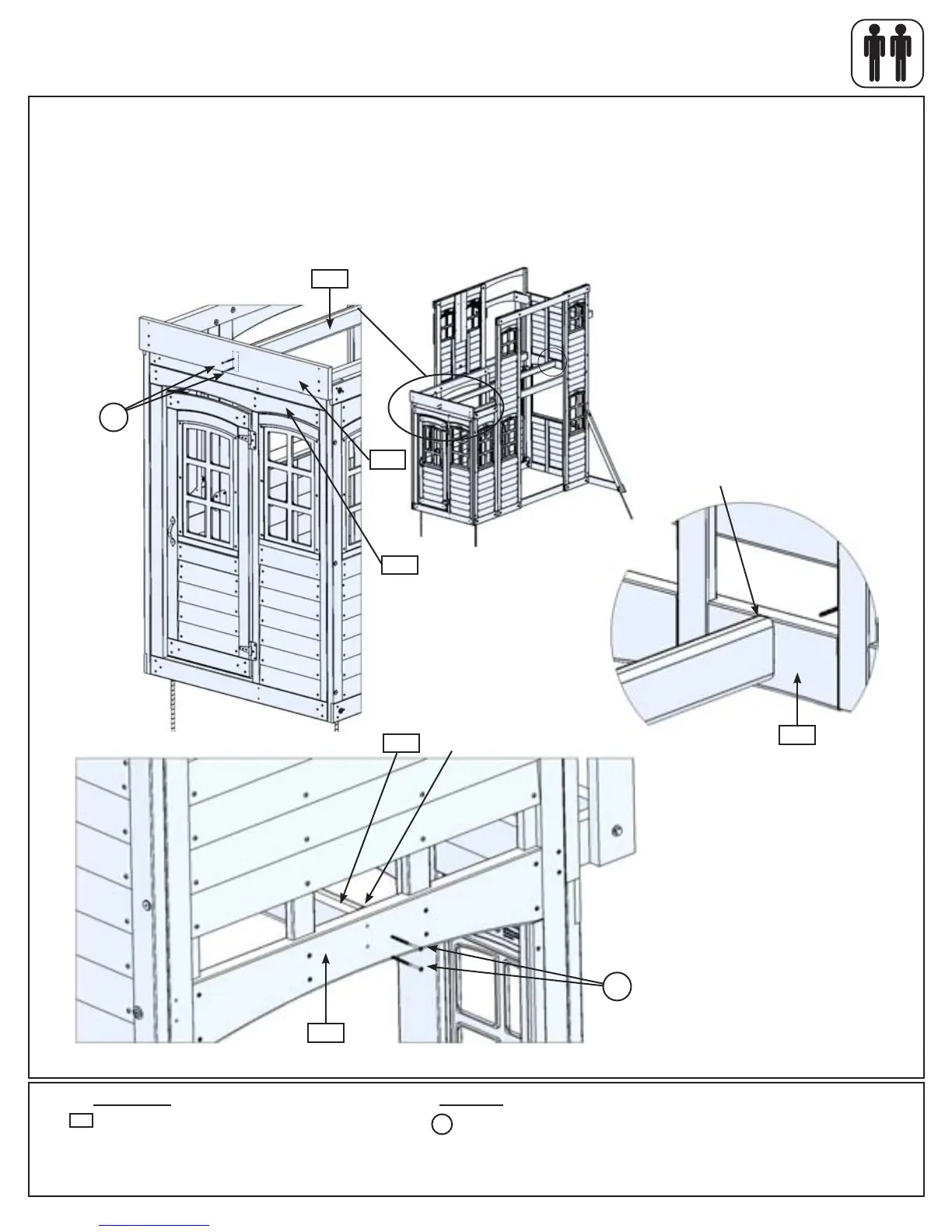

Fig. 14.3
1 x Floor Joist FSC 2 x 4 x 81”
4 x #8 x 3” Wood Screw
S4
140
Fig. 14.2
Inside View
061
Flush
140
Fig. 14.1
Fig. 14.4
S4
S4
092
140
043
043
Flush
Note: Board removed for clarity.
