Cedar Summit F25650 - Final Swing Post Assembly

Step 29: Final Swing Post Assembly
Hardware
Pre-drill all holes using a 3/16” drill bit before installing the lag screws.
Note: Tighten all bolts from Step 27 series before installing lag screws.
A: Attach 1 (LS9) 5/16 x 4-3/4” Lag Screw (with at washer) into each (272) SW Post, as shown in g. 29.1.
B: Attach 1 (LS9) 5/16 x 4-3/4” Lag Screw (with at washer) into remaining hole of the Heavy G-Bracket into
(260) Engineered SW Beam. (g. 29.1)
3 x 5/16 x 4-3/4” Lag Screw
 (5/16”atwasher)
LS9
272
260

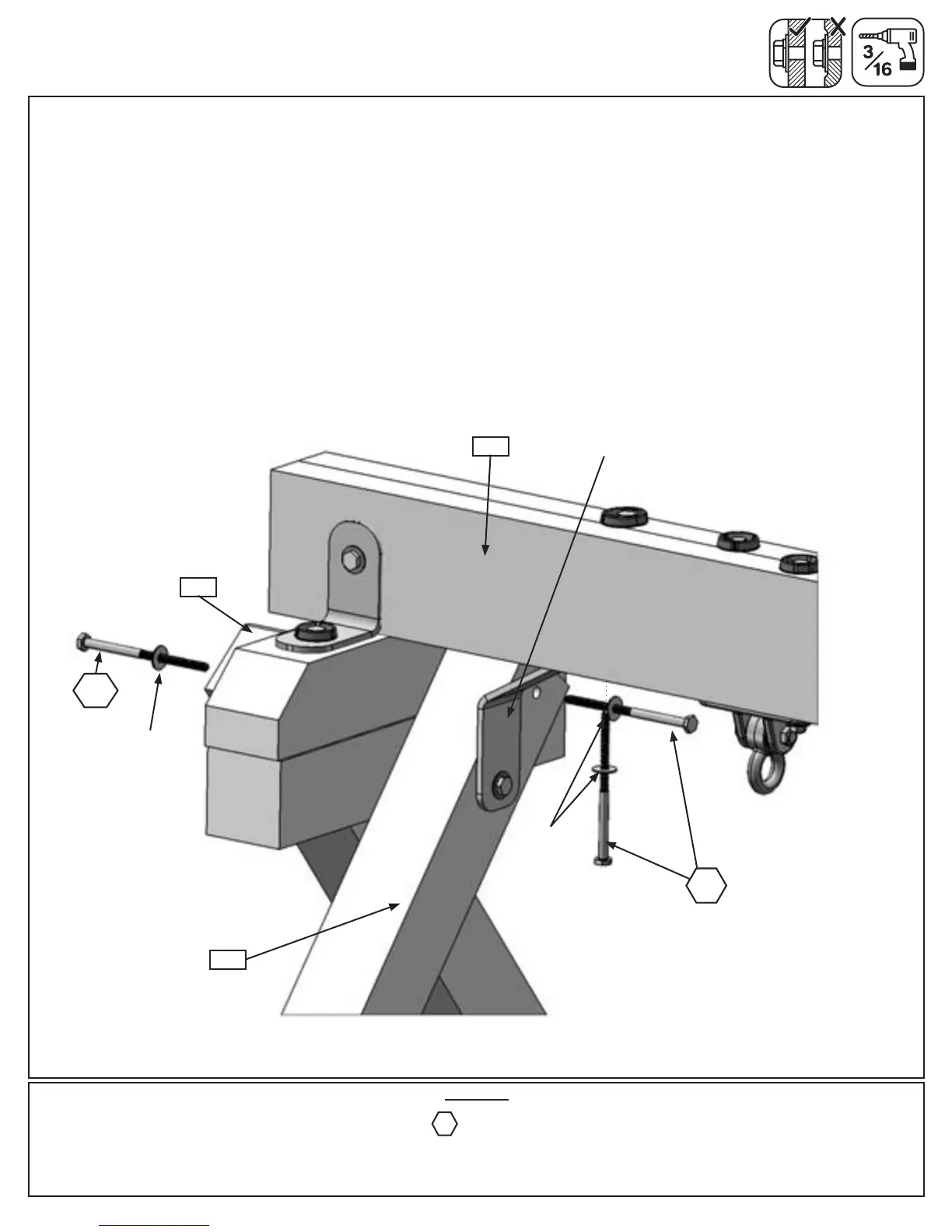

Fig. 29.1
5/16” Flat
Washer
272
Heavy
G-Bracket
LS9
5/16” Flat
Washer
LS9
