Step 33: Attach Sand and Water Table to Fort
Other Parts

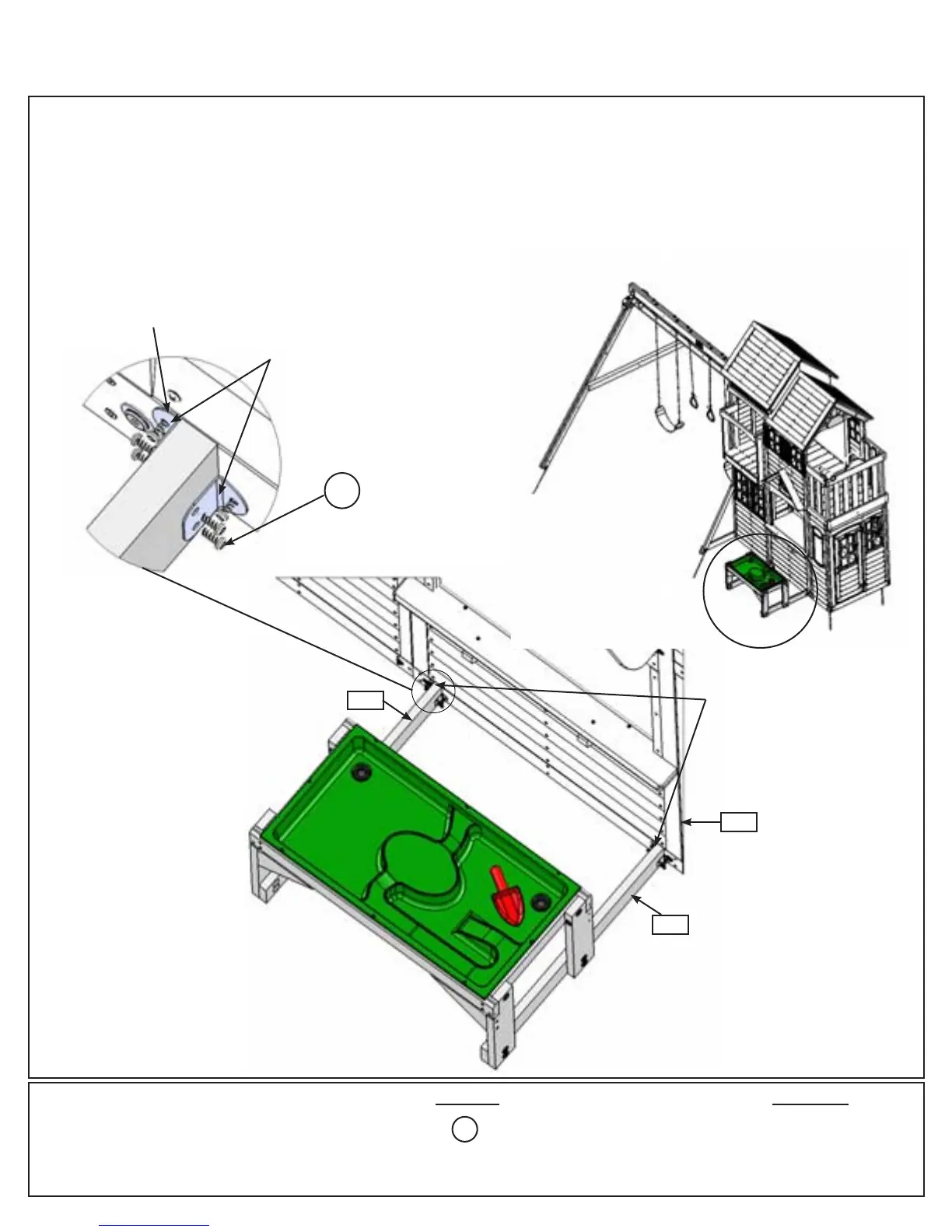

A: Centre Sand and Water Table from Step 1 between the two bolts on the bottom of (040) Cafe Wall Window
Panel. (g. 33.1 and 33.2)
B: Attach (012) Box Grounds to (040) Cafe Wall Window Panel with 4 Corner Brackets using 3 (S13) #6 x 5/8”
Pan Screws per bracket. (g. 33.2 and 33.3) Note: 2 Corner Brackets sit ush to the top of (012) Box Grounds,
shown in g. 33.2.
12 x #6 x 5/8” Pan Screw
S13
Fig. 33.2
Corner Brackets
Hardware
012
Fig. 33.1
Fig. 33.3
012
S13
x 3 per
bracket
Notice these two
brackets are ush to top.
040
Flush
4 x Corner Bracket
