Cedar Summit F25650 - Floor Board Assembly

Hardware
3 x Slidenest Floor FSC 1 x 6 x 42-1/2”
3 x Slidenest Floor A FSC 1 x 5 x 42-1/2”
Wood Parts
150
48 x #8 x 1-3/8” Wood Screw
S20
Step 15: Floor Board Assembly
Part 1
A: Place 3 (150) Slidenest Floors on (126) SL End, (062) Front Floor, (140) Floor Joist and (064) Back Floor.
These boards should be tight to (043) SW Side Panel. (g. 15.1 and 15.2)
B: Place 3 (151) Slidenest Floor A’s next to (150) Slidenest Floors. (g. 15.1 and 15.2)
C: These oor boards are between both (121) Posts and evenly spaced. Attach all 6 boards with 8 (S20) #8 x
1-3/8” Wood Screws per board. (g. 15.2)

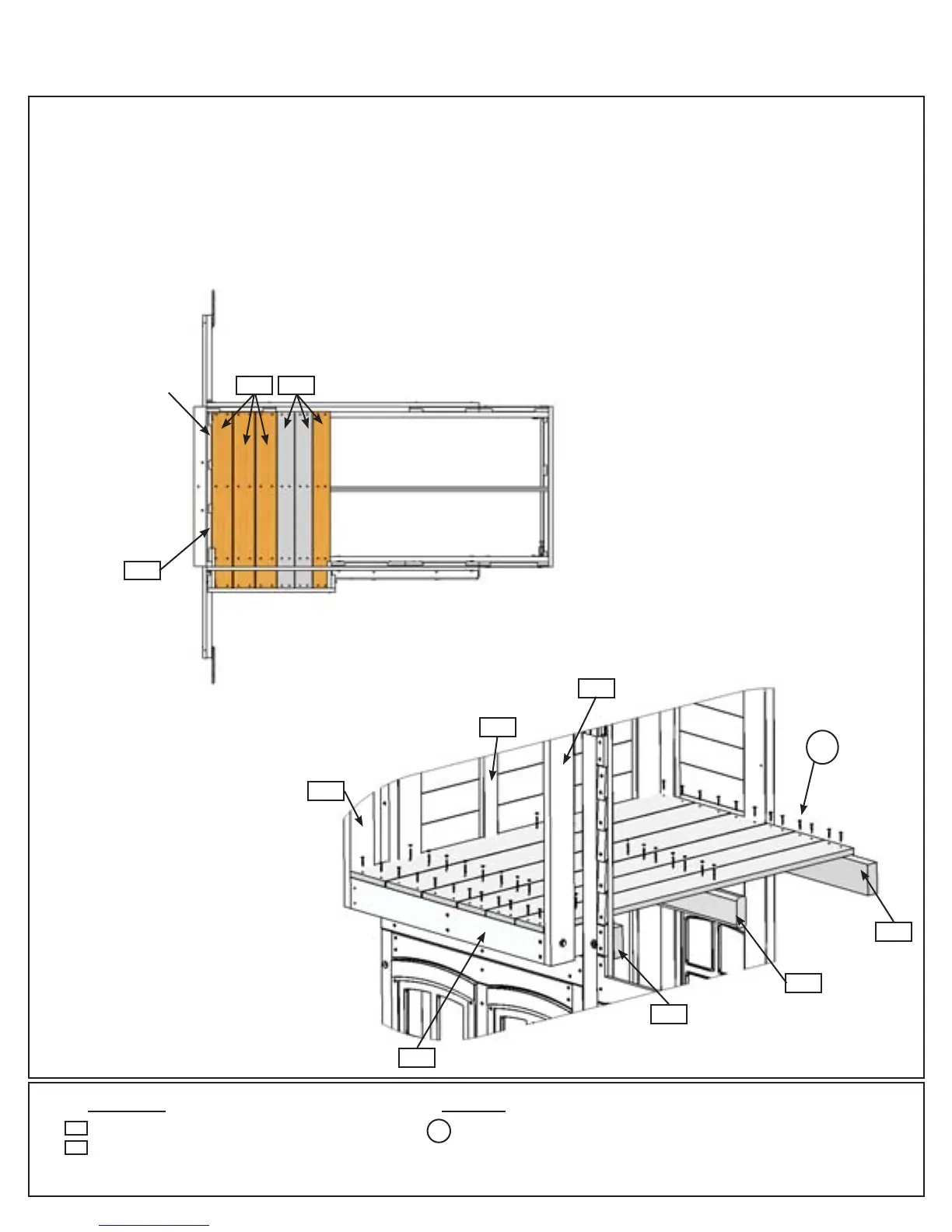

Fig. 15.1
Door Wall Side
Tight
043
Fig. 15.2
151
Top View
Front
S20
Swing Side Wall
150 151
043
121
121
126
064
140
062
x 8 per
board
