Cedar Summit F25650 - Small and Large Roof Assemblies

Hardware

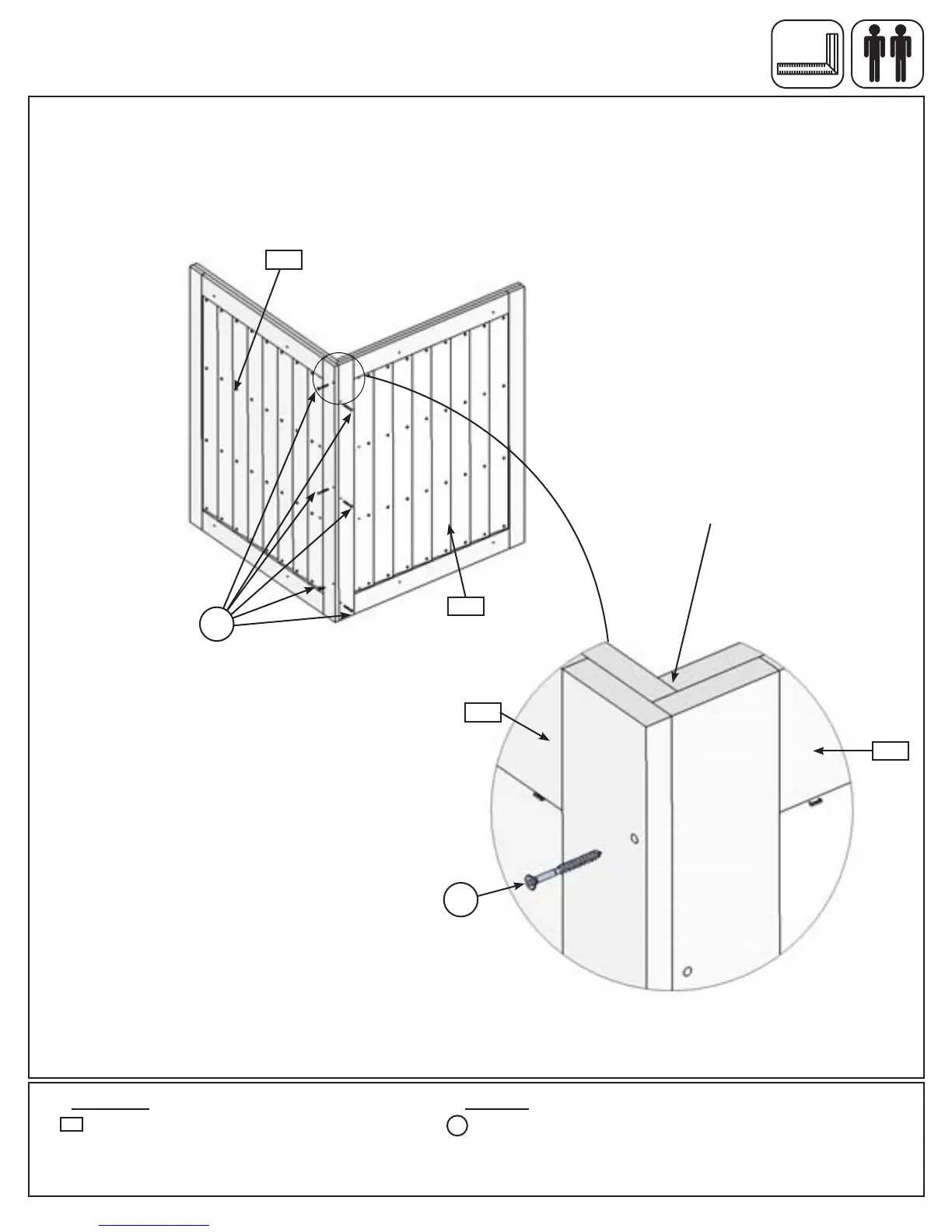

A: Connect 1 (210) Large Roof Panel to a second (210) Large Roof Panel so the one panel overlaps the other
and the inside angle is square and tight. Attach panels together with 3 (S15) #8 x 1-3/4” Wood Screws per panel.
(g. 21.1 and 21.2)
Fig. 21.1
Fig. 21.2
210
6 x #8 x 1-3/4” Wood Screw
2 x Large Roof Panel FSC 1-1/4 x 31-3/4 x 41”
210
Wood Parts
S15
Step 21: Small and Large Roof Assemblies
Part 1
210
S15
210
210
S15
Noticeoverlapisush.
