Cedar Summit F25650 - Slide Top Assembly

Hardware
Wood Parts
1 x SL Top Left FSC 5/4 x 5 x 9-3/4”
2 x Short Joist FSC 2 x 4 x 5-1/4”
2 x Post FSC 5/4 x 4 x 31-7/8”
1 x SL Top Right FSC 5/4 x 5 x 6-1/2”
120
121

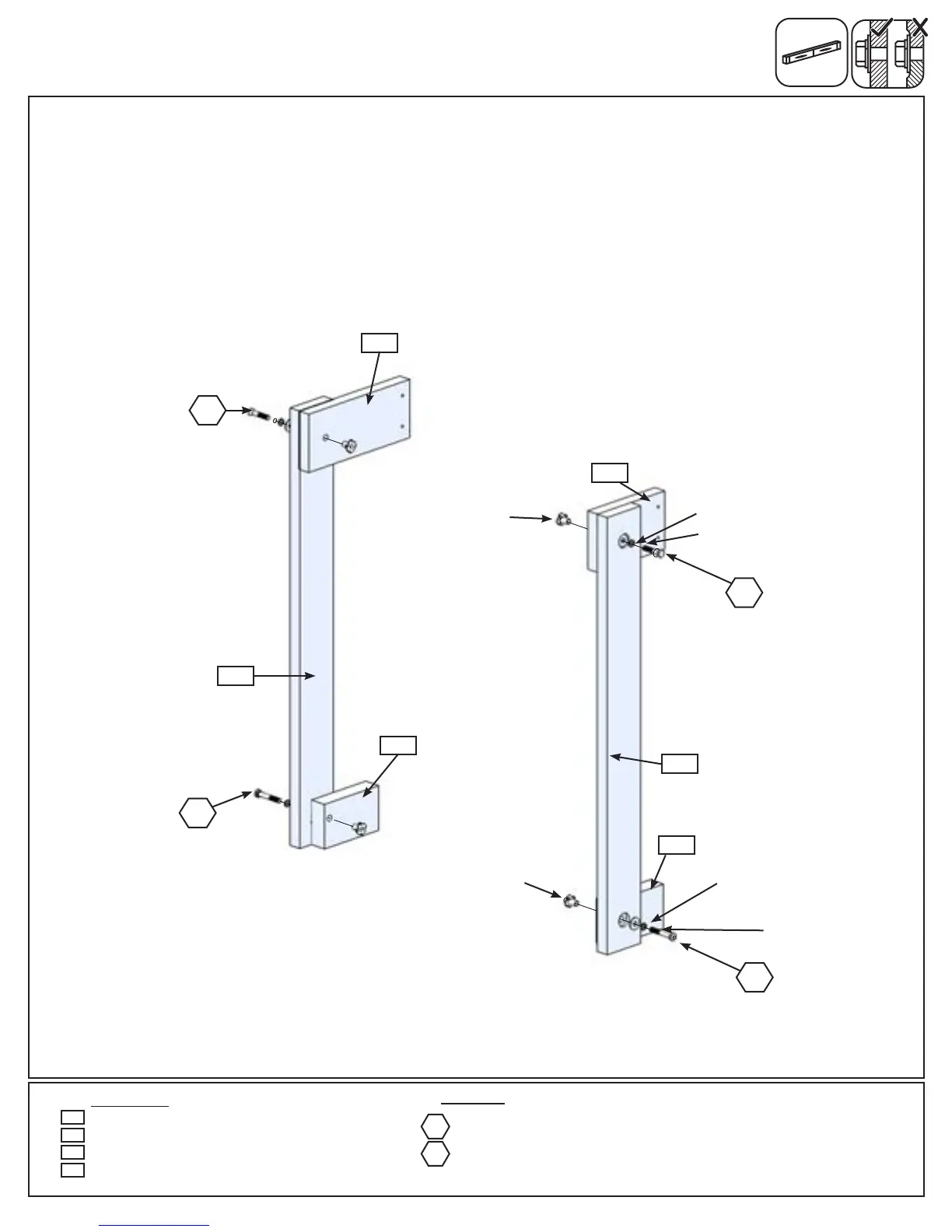

Step 12: Slide Top Assembly
Part 1
A: Loosely attach (120) SL Top Left to 1 (122) Post and (123) SL Top Right to another (122) Post with 1 (G1)
5/16 x 1-1/2” Hex Bolt (with lock washer, at washer and t-nut) per post. (g. 12.1 and 12.2)
B: Loosely attach 1 (121) Short Joist to the bottom of both (122) Posts with 1 (G8) 5/16 x 2” Hex Bolt (with lock
washer, at washer and t-nut) per post. (g. 12.1 and 12.2)
Note: Make sure (120) SL Top Left, (123) SL Top Right and (121) Short Joists are level to the top and
bottom of (122) Posts.
2x 5/16x1-1/2”HexBolt(5/16”lockwasher,5/16”atwasher,5/16”t-nut)
2x 5/16x2”HexBolt(5/16”lockwasher,5/16”atwasher,5/16”t-nut)
G1
5/16” T-Nut
5/16” Flat
Washer
5/16” Lock
Washer
122
122
Fig. 12.1
Fig. 12.2
G8
G1
G1
5/16” T-Nut
5/16” Flat
Washer
120
123
121
121
Left Side
Post Assembly
Right Side
Post Assembly
G8
G8
122
123
5/16” Lock
Washer
