Cedar Summit F25650 - Attach Slide to Fort

Step 34: Attach Slide to Fort
Note: Pre-drill all holes using a 1/8” drill bit before installing the pan screws.

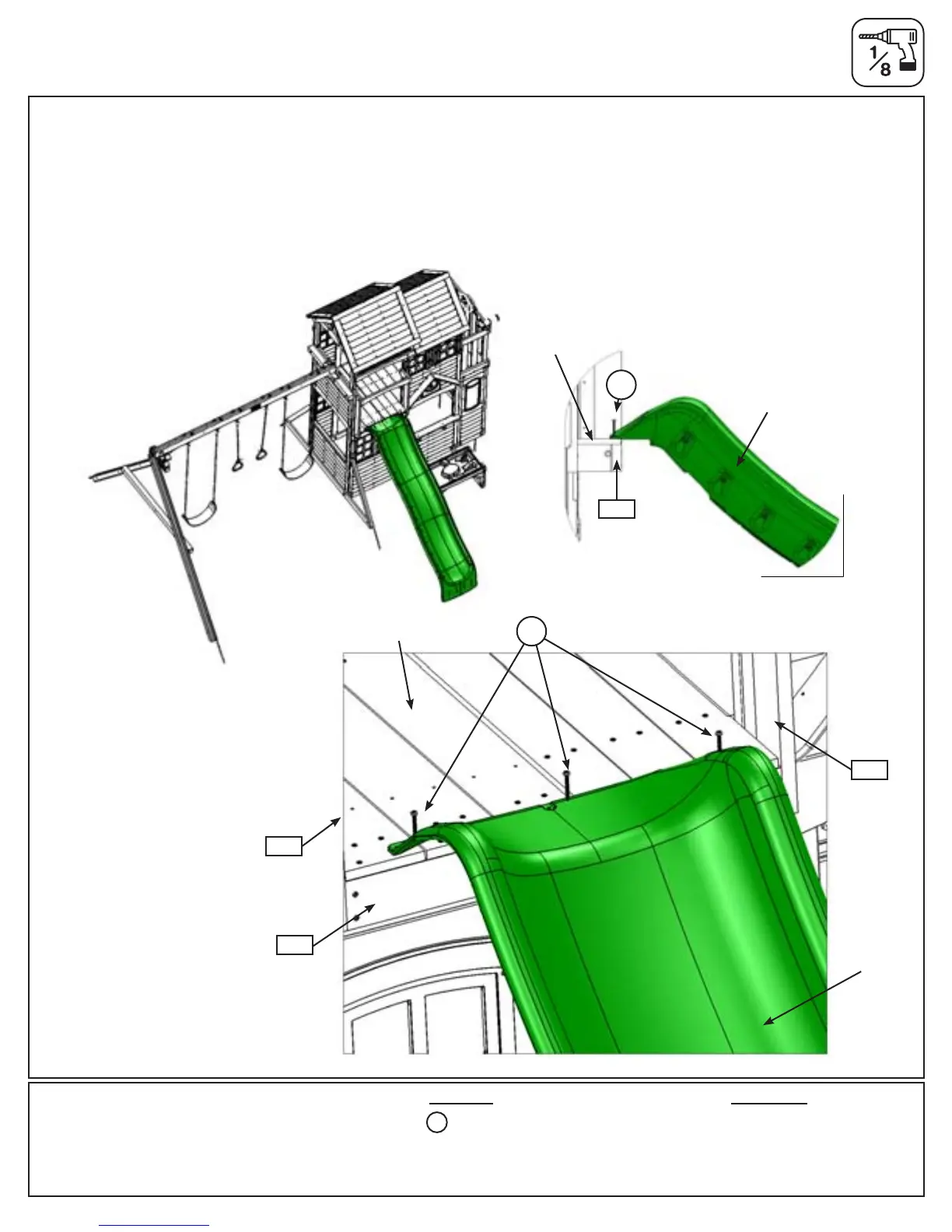

A: Place Slide centred in the opening between (121) Posts. (g. 34.1 and 34.2)
B: Attach slide to fort through the oor boards and into (126) SL End using 3 (S7) #12 x 2” Pan Screws.
(g. 34.2 and 34.3)
Fig. 34.3
Fig. 34.1
Hardware
121
Front
Fig. 34.2
121
3 x #12 x 2” Pan Screw
S7
Other Parts
1 x Slide
S7
(hidden)
Floor Boards
Floor Boards
S7
Slide
Slide
126
126
