Cedar Summit F25650 - Swing Beam Assembly

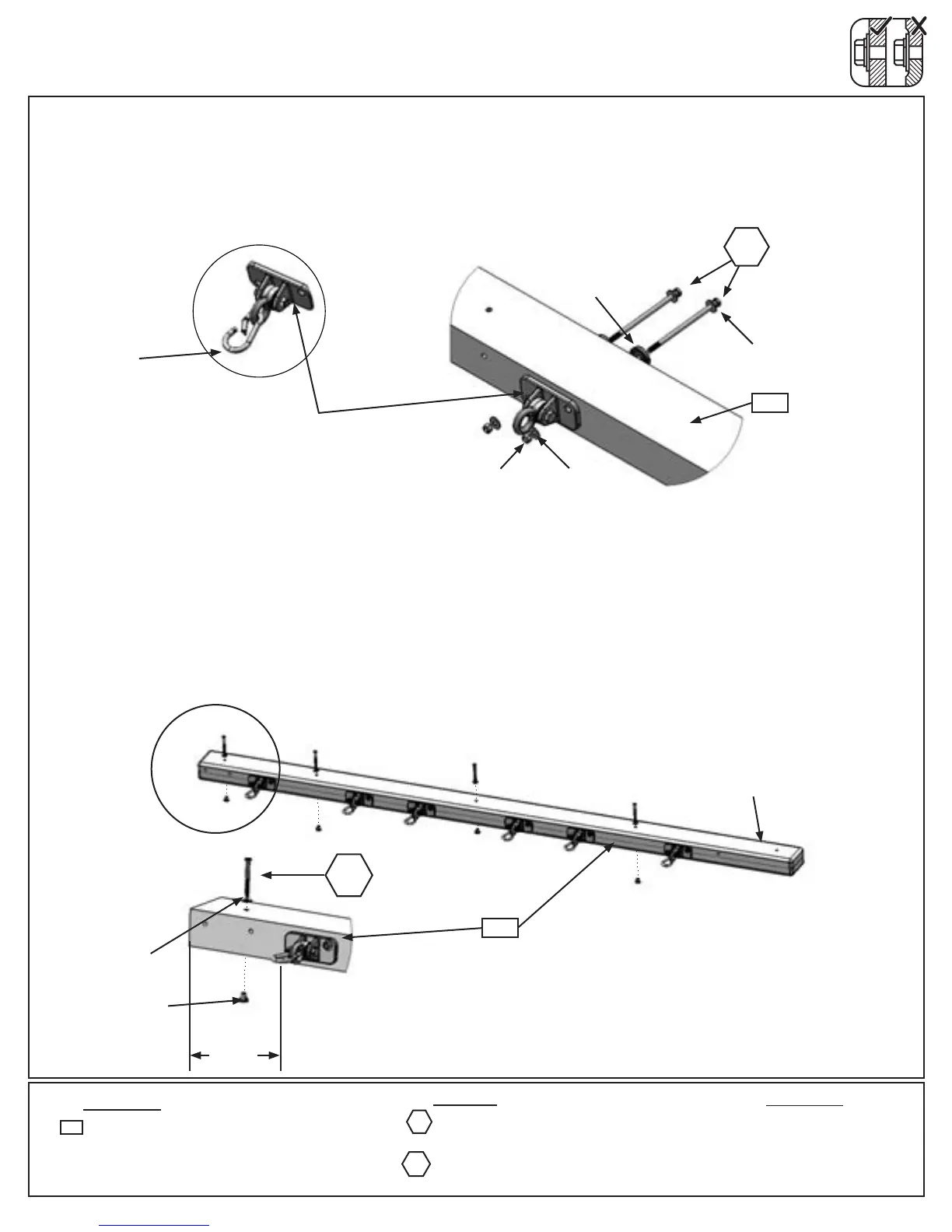

Step 26: Swing Beam Assembly
Hardware
A: Attach 6 Heavy Duty Swing Hangers to (260) Engineered SW Beam using 2 (G13) 5/16 x 6-1/8” Hex Bolt
(with 2 at washers, plastic formed washer and lock nut) per swing hanger, as shown in g. 26.1.
B: Attach 1 Quick Clip to each Heavy Duty Swing Hanger. (g. 26.2)
12 x 5/16 x 6-1/8” Hex Bolt
(5/16”atwasherx2,5/16”locknut
 &plasticformedwasher)
4 x 5/16 x 3” Wafer Bolt
 (5/16”atwasher,5/16”t-nut)
Other Parts
6 x Heavy Duty Swing Hangers
6 x Quick Clips
WB7
G13
Wood Parts
1 x Engineered SW Beam FSC 3 x 5-1/4 x 110”
260
C: Install 4 (WB7) 5/16 x 3” Wafer Bolts (with at washer and t-nut) in (260) Engineered SW Beam, as shown in
g. 26.3 and 26.4. A Wafer Bolt does not get installed on the Swing Side of the beam.
IMPORTANT! MAKE SURE ALL 4 BOLTS ARE ATTACHED. THEY WILL MINIMIZE CHECKING OF WOOD.
Fig. 26.2
260
5/16” Flat
Washer
Fig. 26.1
Fig. 26.3
Fig. 26.4
G13
Plastic
Formed
Washer
5/16” Flat
Washer
5/16”
Lock Nut
Heavy Duty Swing Hanger
260
5/16” Flat
Washer
5/16” T-Nut
WB7
Does not get
Wafer Bolt
Swing Side
Fort Side
9-3/4”
Quick Clip
