Cedar Summit F25650 - Attach Middle Arch to Fort

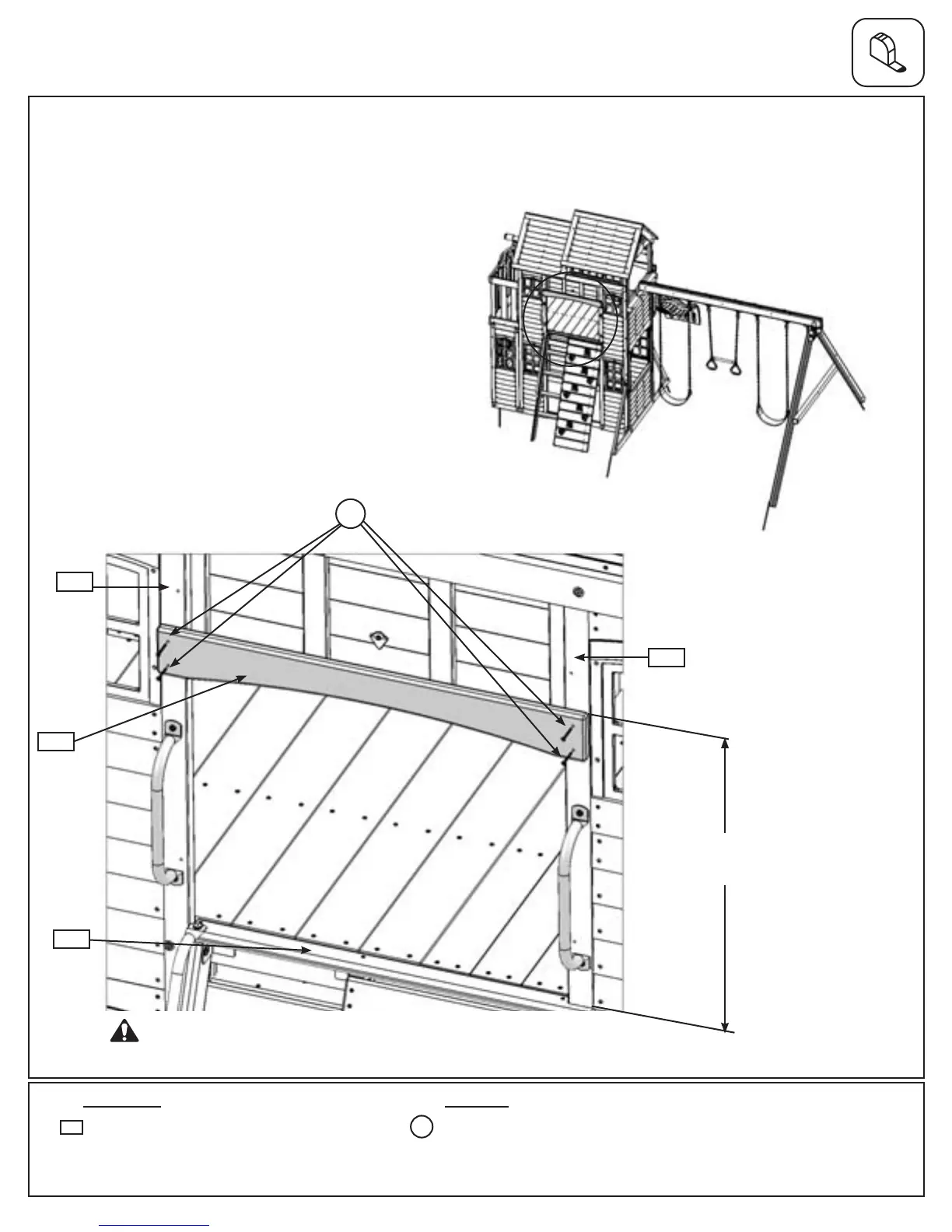

Step 37: Attach Middle Arch to Fort
Hardware
A: Measure 28” from the top of (025) Top Ladder on each (050) Narrow Window Panel and attach (370)
Middle Arch with 4 (S15) #8 x 1-3/4” Wood Screws. (g. 37.1 and 37.2)
4 x #8 x 1-3/4” Wood Screw
Wood Parts
1 x Middle Arch FSC 5/4 x 5 x 36-1/4”
370
S15
Fig. 37.2
025
050
Fig. 37.1
050
370
28”
S15
Warning! Check entire play center for bolts protruding
beyond T-Nuts. Use extra washers to eliminate this condition.
107 support@cedarsummitplay.com
