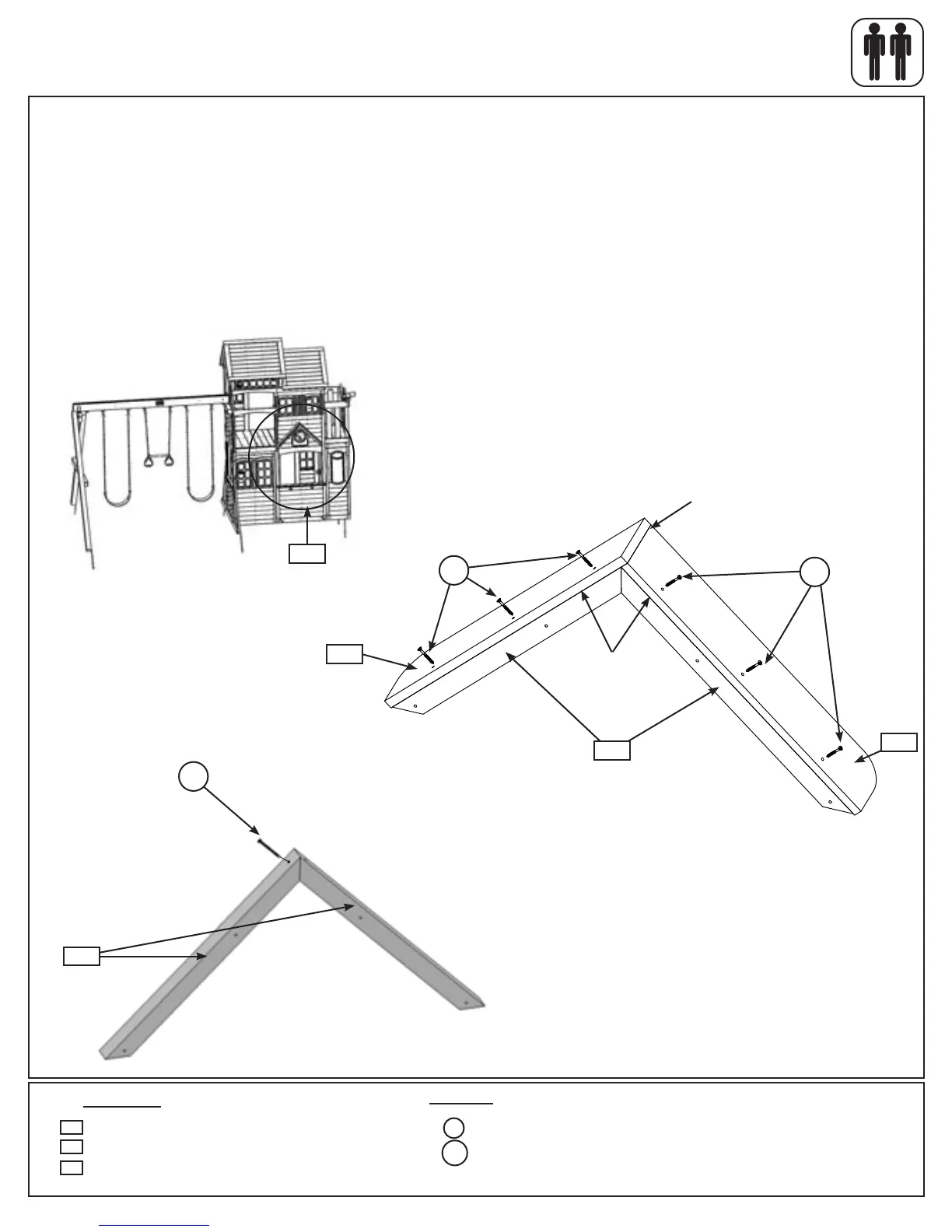

Step 32: Clock Roof Assembly
Part 1
A: Attach 1 (320) Small Roof Support to a second (320) Small Roof Support at peak using 1 (S3) #8 x 2-1/2”
Wood Screw. (g. 32.1 and 32.2)
B: With a helper place (321) Roof Board A and (322) Roof Board B on top of (320) Small Roof Supports so (322)
Roof Board B overlaps (321) Roof Board A and forms a peak and the back edges are ush to each other. Attach
with 3 (S20) #8 x 1-3/8” Wood Screws per board. (g. 32.3)
1 x #8 x 2-1/2” Wood Screw
6 x #8 x 1-3/8” Wood Screw
S3
Fig. 32.2
Hardware
S3
Wood Parts
2 x Small Roof Support FSC 2 x 2 x 22-1/2”
1 x Roof Board A FSC 1 x 5 x 22-5/8”
1 x Roof Board B FSC 1 x 5 x 23-1/4”
320
040
Fig. 32.1
320
S20
321
322
S20
S20
322
321
320
Flush
Back
Fig. 32.3
Flush
