Cedar Summit F25650 - Swing Side Panel Assembly

1 x Narrow Window Panel FSC 1-1/4 x 16-3/4 x 99”
Wood Parts Hardware Other Parts
2 x 2 x 2-1/4” Corner Panel Bracket
050
4 x #12 x 3/4” Pan Screw
S8

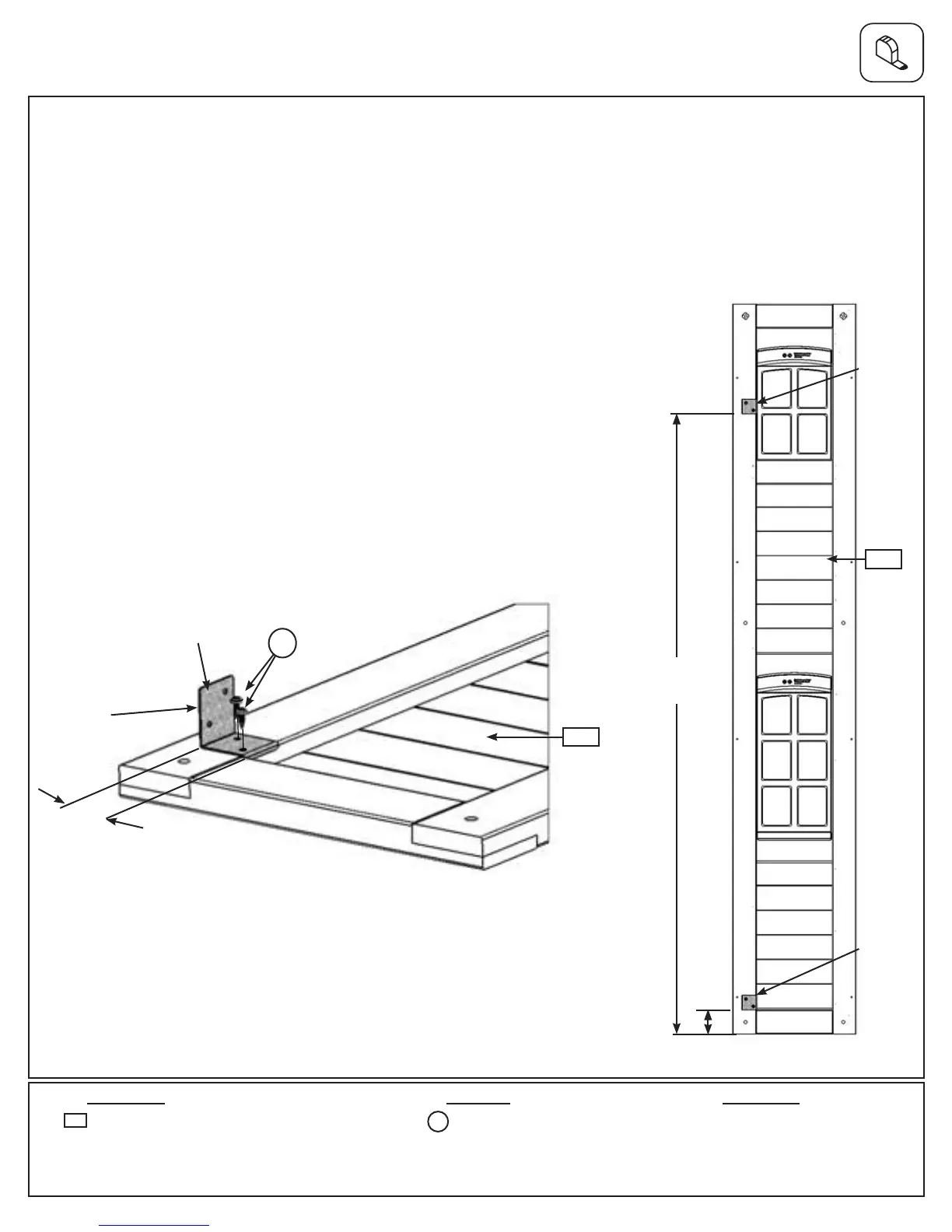

Step 5: Swing Side Panel Assembly
Part 1
A: Place 1 (050) Narrow Window Panel on the ground. Measure 3-1/4” up from the bottom of the panel on the
left side and attach a 2 x 2-1/4” Corner Panel Bracket to the panel with 2 (S8) #12 x 3/4” Pan Screws. The at
edge of the bracket must be facing up and it must be installed on the correct side. (g. 5.1 and 5.2)
B: Measure 84” from the bottom of (050) Narrow Window Panel and attach a second 2 x 2-1/4” Corner Panel
Bracket with 2 (S8) #12 x 3/4” Pan Screws. The at edge of the bracket must be facing up and it must be
installed on the correct side. (g. 5.1 and 5.2)
Note: Bottom of 2 x 2-1/4” Corner Panel Bracket must sit at 84”.
Flat edge up
Fig. 5.2
050
Fig. 5.1
S8
2 x 2-1/4”
Corner Panel
Bracket
050
84”
3-1/4”
2 x 2-1/4”
Corner
Panel
Bracket
2 x 2-1/4”
Corner
Panel
Bracket
2”
