Cedar Summit F25650 - Join Door Wall and Swing Side Wall Assemblies

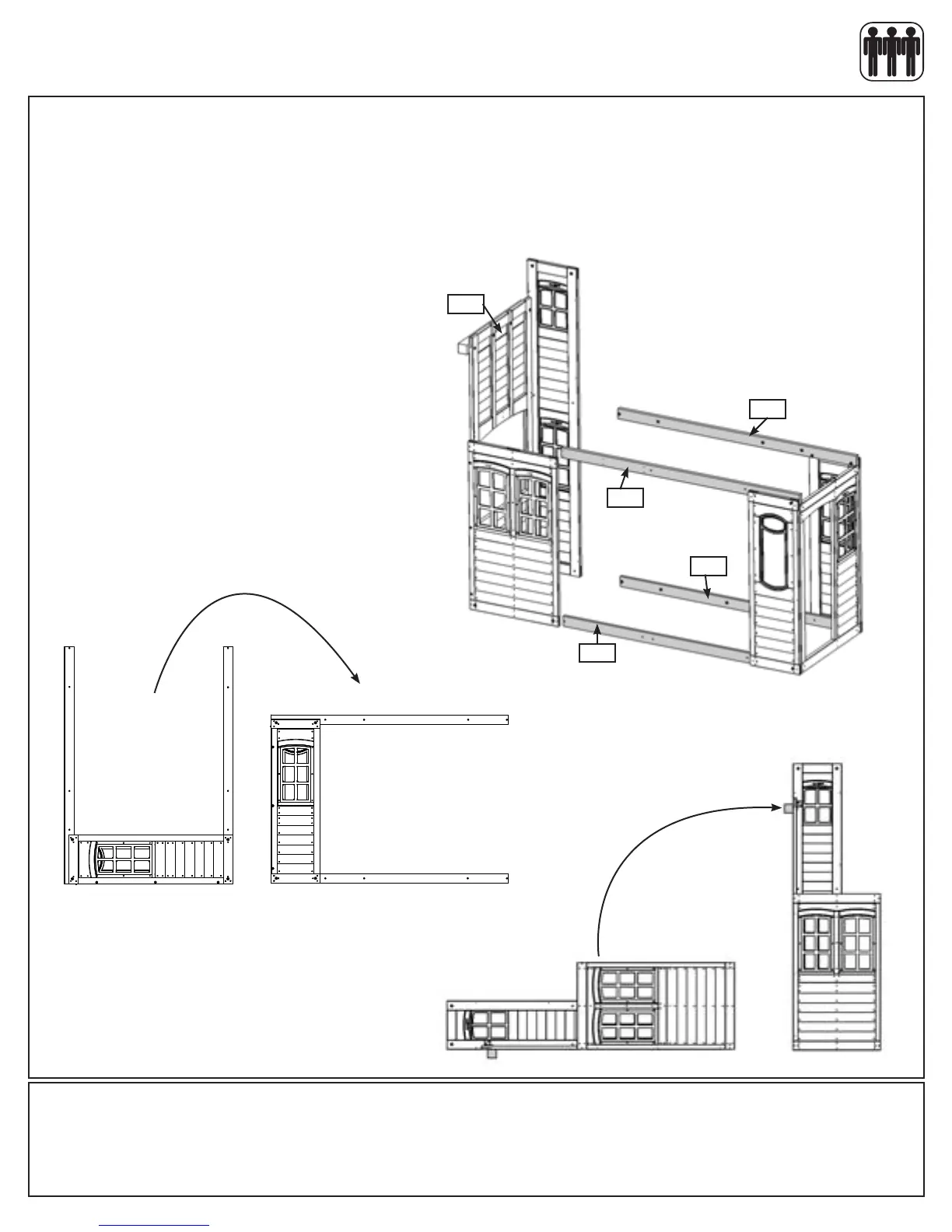

A: With at least two helpers lift the Door Wall Assembly, as shown in g. 7.1 and 7.2.
B: With at least two helpers lift the Swing Side Wall Assembly so it faces the Door Wall Assembly and slide both
assemblies together so (062) Front Floor, (063) Front Ground, (064) Back Floor and (065) Back Ground are tight
to (040) Cafe Wall Window Panel as shown in g. 7.3, 7.4 and 7.5.
Step 7: Join Door Wall and Swing Side Wall Assemblies
Part 1
Fig. 7.3
Fig. 7.5
Fig. 7.4
Fig. 7.1
Fig. 7.2
040
064
062
065
063
Door Wall Assembly
Swing Side Wall Assembly
