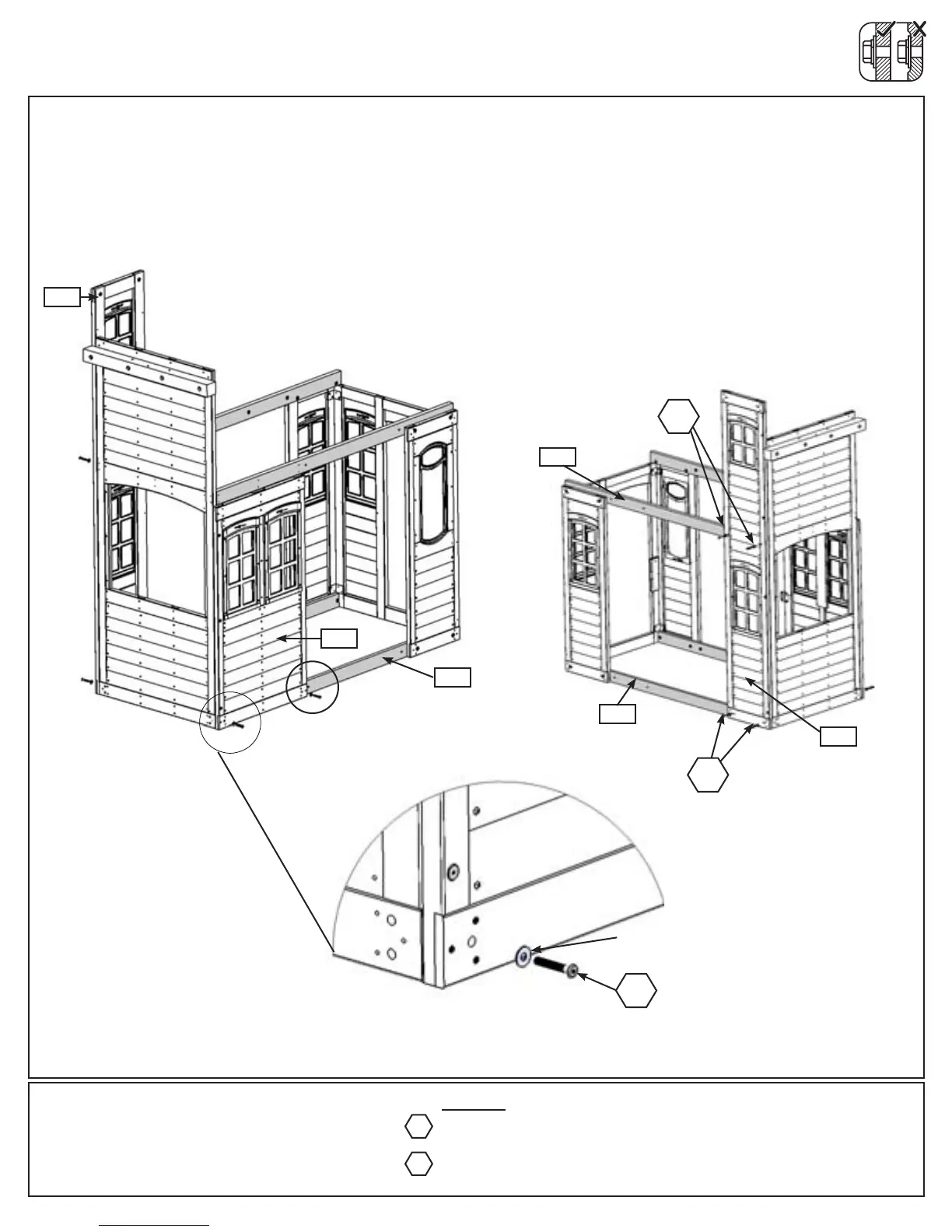

C: Loosely attach (063) Front Ground and (065) Back Ground to (051) SL Side Window Panel and (050) Narrow
Window Panel with 2 (WB9) 5/16 x 2-1/8” Wafer Bolts (with at washer) per board as shown in g. 7.6, 7.7 and
7.8.
D: Loosely attach (064) Back Floor to (050) Narrow Window Panel with 2 (WB8) 5/16 x 2-3/8” Wafer Bolts (with
at washer) as shown in g. 7.7.
4 x 5/16 x 2-1/8” Wafer Bolt
 (5/16”atwasher)
2 x 5/16 x 2-3/8” Wafer Bolt
 (5/16”atwasher)
Hardware
WB9
WB8
Step 7: Join Door Wall and Swing Side Wall Assemblies
Part 2
Front
5/16”
Flat Washer
WB9
Fig. 7.6
051
Fig. 7.8
Fig. 7.7
with 5/16”
Flat Washer
WB9
WB8
with 5/16”
Flat Washer
063
065
064
Back
050
050
