Cedar Summit F25650 - Swing Post Assembly

1 x SW Block Angle FSC 2-1/2 x 3 x 15”
1 x Block SW FSC 2-1/2 x 3 x 15”
2 x SW Post FSC 4 x 4 x 105”

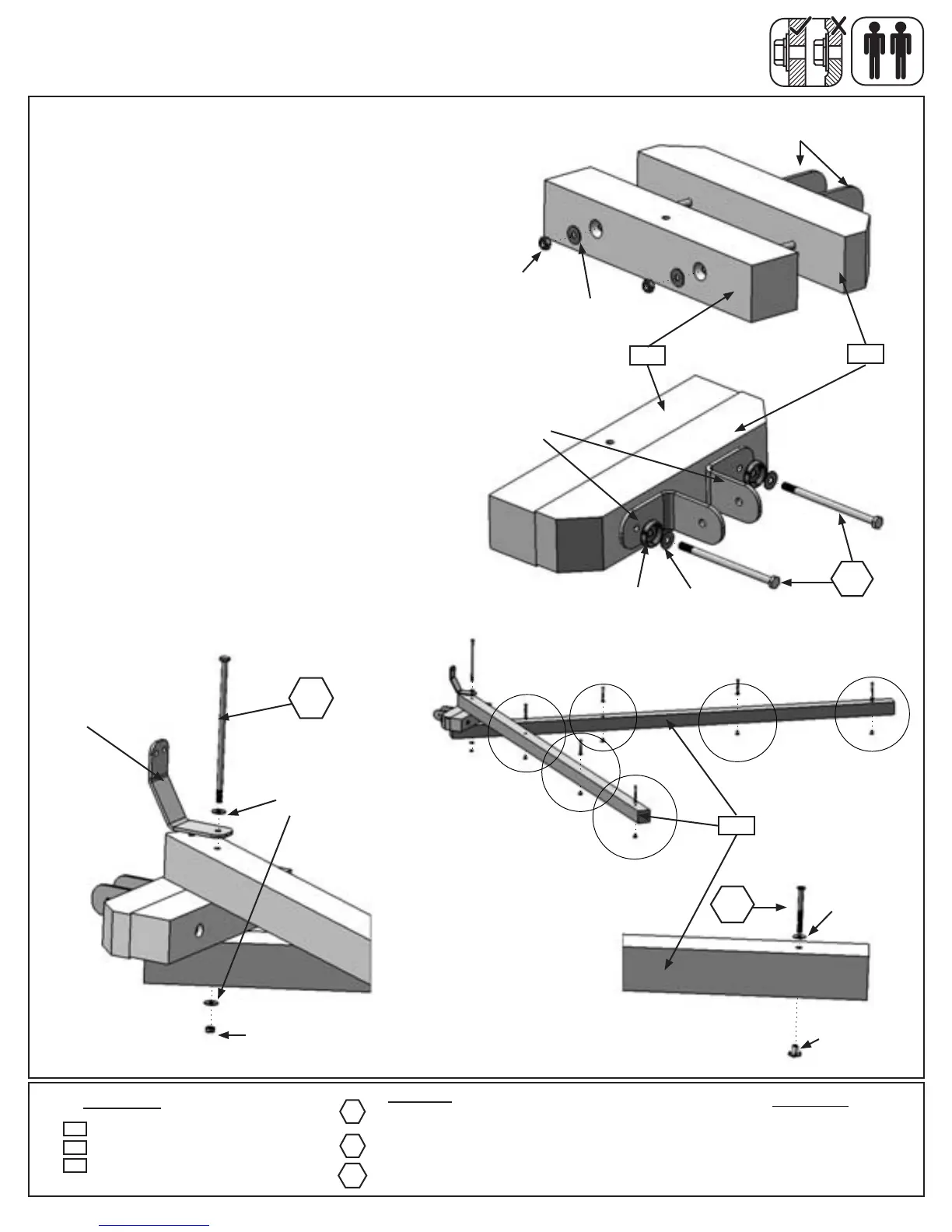

Step 27: Swing Post Assembly
Part 1
272
271
270
Note: Keep all bolts from Step 27 series loose
until start of Step 29
A: Place (270) SW Block Angle on top of (271)
Block SW and attach 2 Heavy L-Brackets on top of
(270) SW Block Angle feeding 2 (G17) 3/8 x 6” Hex
Bolts (with 2 at washers, plastic formed washer and
lock nut) through both boards as shown in g. 27.1
and 27.2.
B: Attach 3 (WB7) 5/16 x 3” Wafer Bolts (with at
washer and t-nut) to all three holes in each (272) SW
Post as shown in g. 27.3 and 27.4. IMPORTANT!
MAKE SURE ALL 6 BOLTS ARE ATTACHED TO
MINIMIZE CHECKING OF WOOD.
C: Place (270) SW Block Angle and (271) Block
SW assembly in between 2 (272) SW Post (Heavy
L-Brackets towards the outside). Place 1 Heavy
G-Bracket on the top (272) SW Post and attach with
(G26) 3/8 x 9-1/4” Hex Bolt (with 2 at washers and
1 lock nut), as shown in g. 27.5.
2 x 3/8 x 6” Hex Bolt
(3/8”atwasherx2,plasticformedwasher&3/8”locknut)
1 x 3/8 x 9-1/4” Hex Bolt
(3/8”atwasherx2&3/8”locknut)
6 x 5/16 x 3” Wafer Bolt
 (5/16”atwasher&5/16”t-nut)
WB7
G17
Hardware
Wood Parts
G26
Other Parts
2 x Heavy L-Bracket
1 x Heavy G-Bracket
Fig. 27.5
Fig. 27.1
271
3/8” Flat
Washer
3/8” Lock Nut
Fig. 27.2
Fig. 27.3
Fig. 27.4
G17
270
Heavy L-Bracket
3/8” Flat
Washer
5/16” T-Nut
Plastic
Formed
Washer
3/8” Flat
Washer
3/8” Lock Nut
Heavy L-Bracket
Bottom View
Top View
5/16” Flat
Washer
G26
WB7
272
Heavy G-Bracket
