Cedar Summit F25650 - Page 96

g pp
4 x #6 x 1” Wood Screw
1 x 3/8 x 4” Hex Bolt
(3/8”atwasherx2&3/8”locknut)

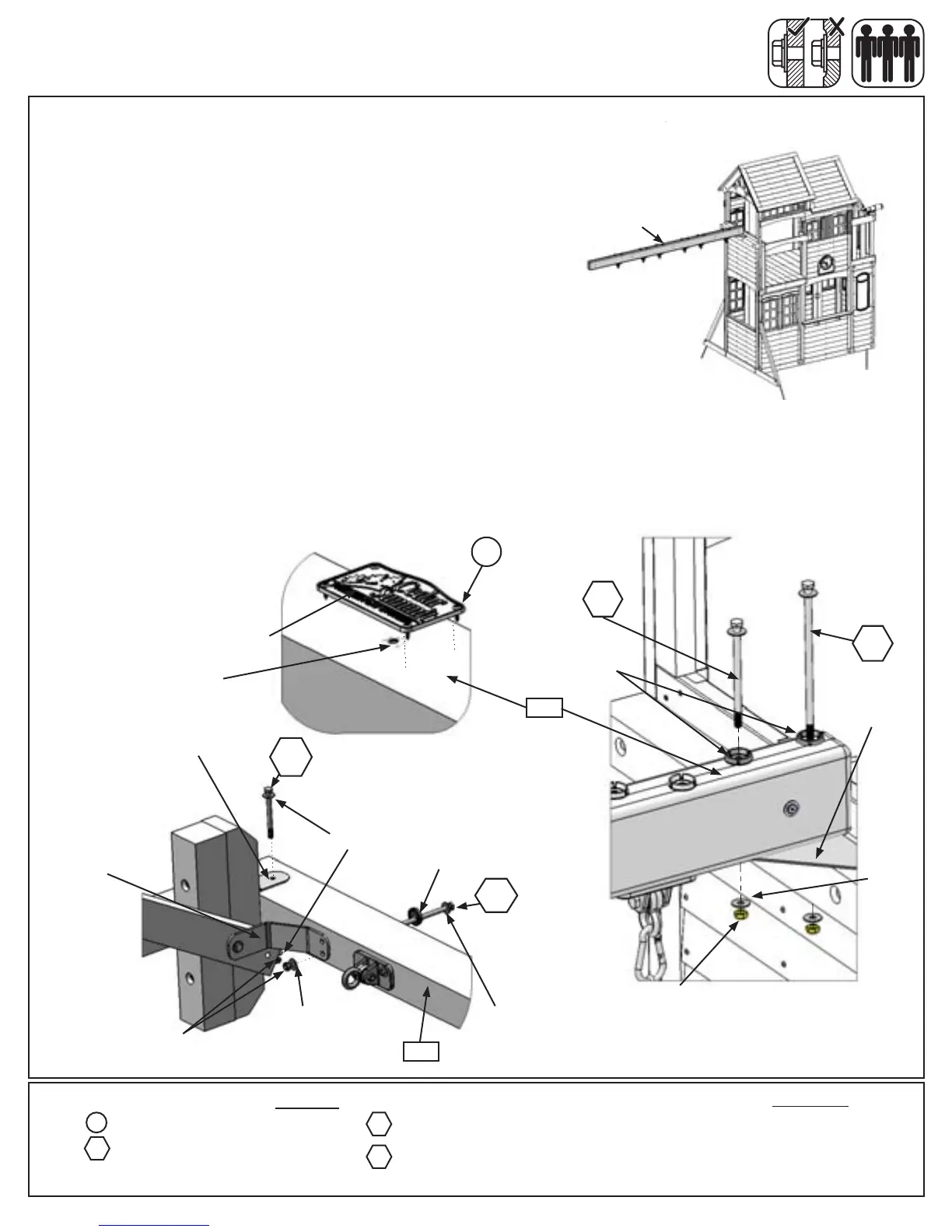

Step 27: Swing Post Assembly
Part 2
D: Attach Cedar Summit plaque to centre of (260) Engineered SW
Beam (over top of t-nut) using 4 (S18) #6 x 1” Wood Screws. (g.
27.6)
E: Place (260) Engineered SW Beam on Heavy T-Bracket and
attach to fort with 1 (G17) 3/8 x 6” Hex Bolt (with 2 at washers,
plastic formed washer and lock nut) and 1 (G18) 3/8 x 9” Hex Bolt
(with 2 at washers, plastic formed washer and lock nut) as shown
in g. 27.7 and 27.8.
F: Place (260) Engineered SW Beam (end without Wafer Bolt from
Step 26) in between Heavy L-Brackets assembled in Step A making
sure holes are lined up then attach Swing Post Assembly to Swing
Beam Assembly using 1 (G20) 3/8 x 4” Hex Bolt (with 2 at washers
and lock nut) through Heavy L-Bracket. (g. 27.9)
G: Attach (260) Engineered SW Beam to Heavy G-Bracket with 1
(G17) 3/8 x 6” Hex Bolt (with 2 at washers, plastic formed washer
and lock nut). (g. 27.9)
2 x 3/8 x 6” Hex Bolt
(3/8”atwasherx2,plasticformedwasher&3/8”locknut)
1 x 3/8 x 9” Hex Bolt
(3/8”atwasherx2,plasticformedwasher&3/8”locknut)
G17
Hardware
G18
Other Parts
1 x Cedar Summit plaque
G20
S18
Fig. 27.6
3/8” Flat
Washer
3/8” Lock Nut
Plastic
Formed
Washer
260
Heavy L-Bracket
Fig. 27.7
Fig. 27.8
Fig. 27.9
3/8” Flat
Washer
3/8” Flat
Washer
Cedar Summit Plaque
x 4
G18
G17
G20
Plastic
Formed
Washer
3/8” Lock Nut
3/8” Flat
Washer
T-Nut
260
G17
Heavy G-Bracket
S18
Heavy
T-Bracket
Front View
Cedar Summit
Plaque in front
of beam
