Cedar Summit F25650 - Gable Angle Support Assembly

Wood Parts
Hardware
1 x Right Gable Angle FSC 5/4 x 4 x 31”
1 x Left Gable Angle FSC 5/4 x 4 x 31”
1 x Gable Bottom FSC 2 x 4 x 34-1/2”
192
191
190

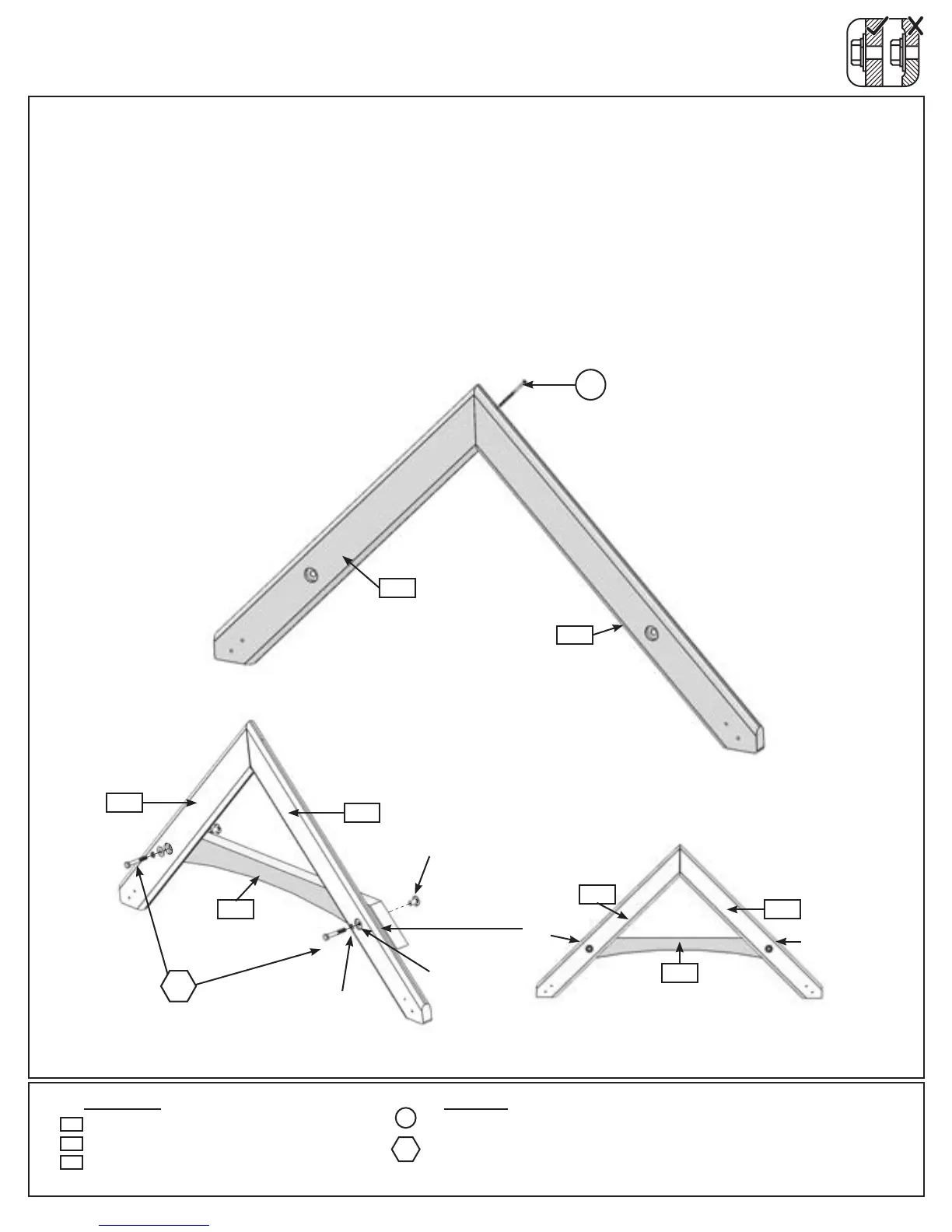

Step 19: Gable Angle Support Assembly
Part 1
A: Attach (190) Right Gable Angle to (191) Left Gable Angle at peak using 1 (S4) #8 x 3” Wood Screw. (g.
19.1)
B: In the bolt holes on (192) Gable Bottom tap in 2 - 5/16” t-nuts then place (192) Gable Bottom on (190) Right
Gable Angle and (191) Left Gable Angle so it is ush to the outside edges of the boards. (g. 19.2)
C: Flip the assembly over so the large counter sunk holes are facing up. Attach (192) Gable Bottom to (190)
Right Gable Angle and (191) Left Gable Angle with 2 (G8) 5/16 x 2” Hex Bolts (with lock washer and at washer).
(g. 19.2 and 19.3)
Fig. 19.1
1 x #8 x 3” Wood Screw
2 x 5/16 x 2” Hex Bolt
(5/16”lockwasher,5/16”atwasher,5/16”t-nut)
S4
191
190
S4
Fig. 19.2
Fig. 19.3
G8
5/16” Flat
Washer
5/16” T-Nut
5/16” Lock
Washer
G8
191
190
192
191
190
192
Flush
Flush
