Notice bolt side facing out.
Wood Parts
1 x Sunburst FSC 5/4 x 6 x 10”
185

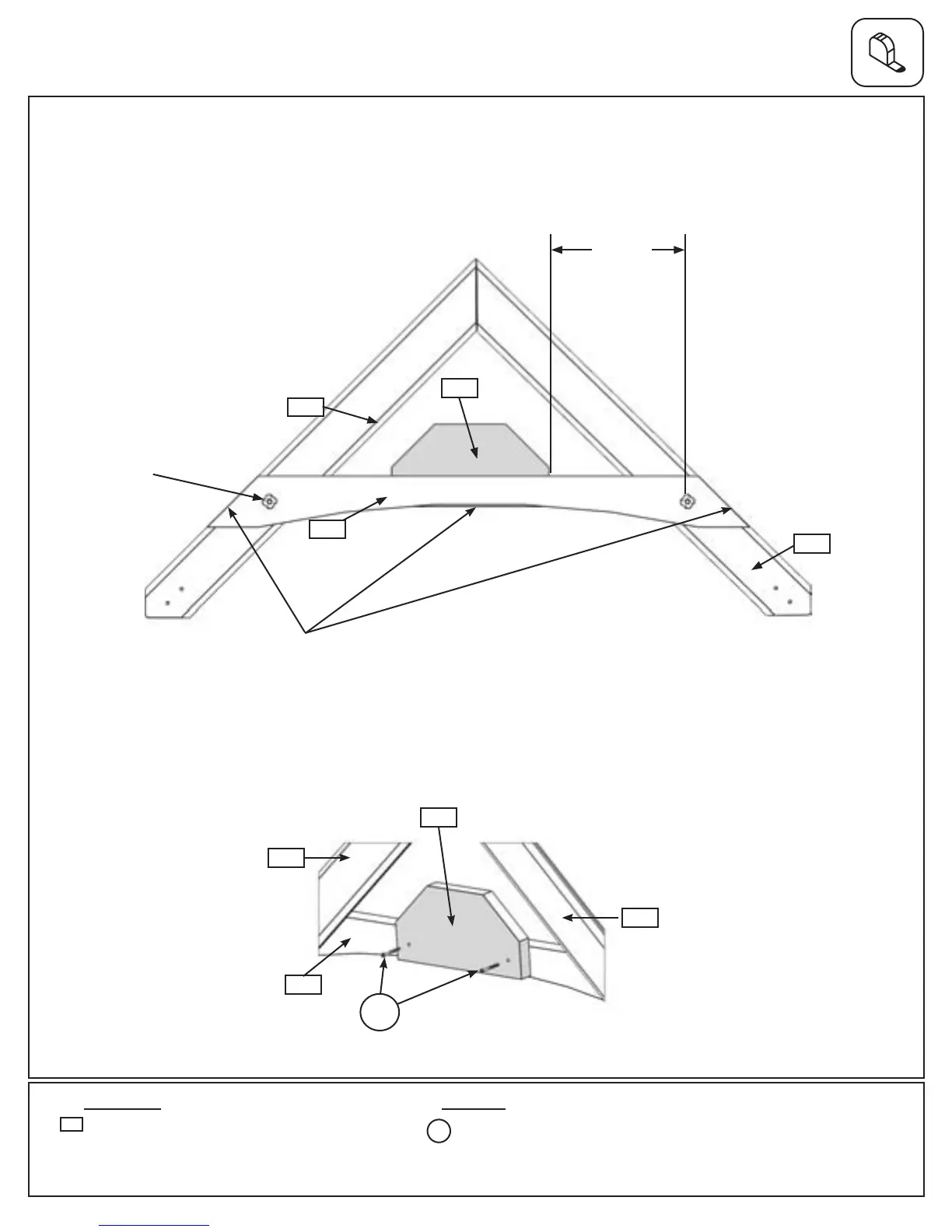

D: Measure 8-1/2” from the centre of either bolt hole then place 1 (185) Sunburst on (192) Gable Bottom making
sure it is ush to the bottom of (192) Gable Bottom, then attach with 2 (S15) #8 x 1-3/4” Wood Screws to the
outside of the assembly. (g. 19.4 and 19.5)
190
Fig. 19.4
191
8-1/2”
Step 19: Gable Angle Support Assembly
Part 2
192
Flush
185
Hardware
2 x #8 x 1-3/4” Wood Screw
S15
Fig. 19.5
185
190
191
192
S15
Outside View
Inside View
79 support@cedarsummitplay.com
