Cedar Summit F25650 - Page 71

Hardware
Fig. 16.8
2 x #8 x 2-1/2” Wood Screw
6 x #8 x 1-3/8” Wood Screw
1 x Centre Wall Board FSC 1 x 5 x 32”
1 x Steering Wheel Dash FSC 5/4 x 5 x 12-1/8”
164
165
Wood Parts

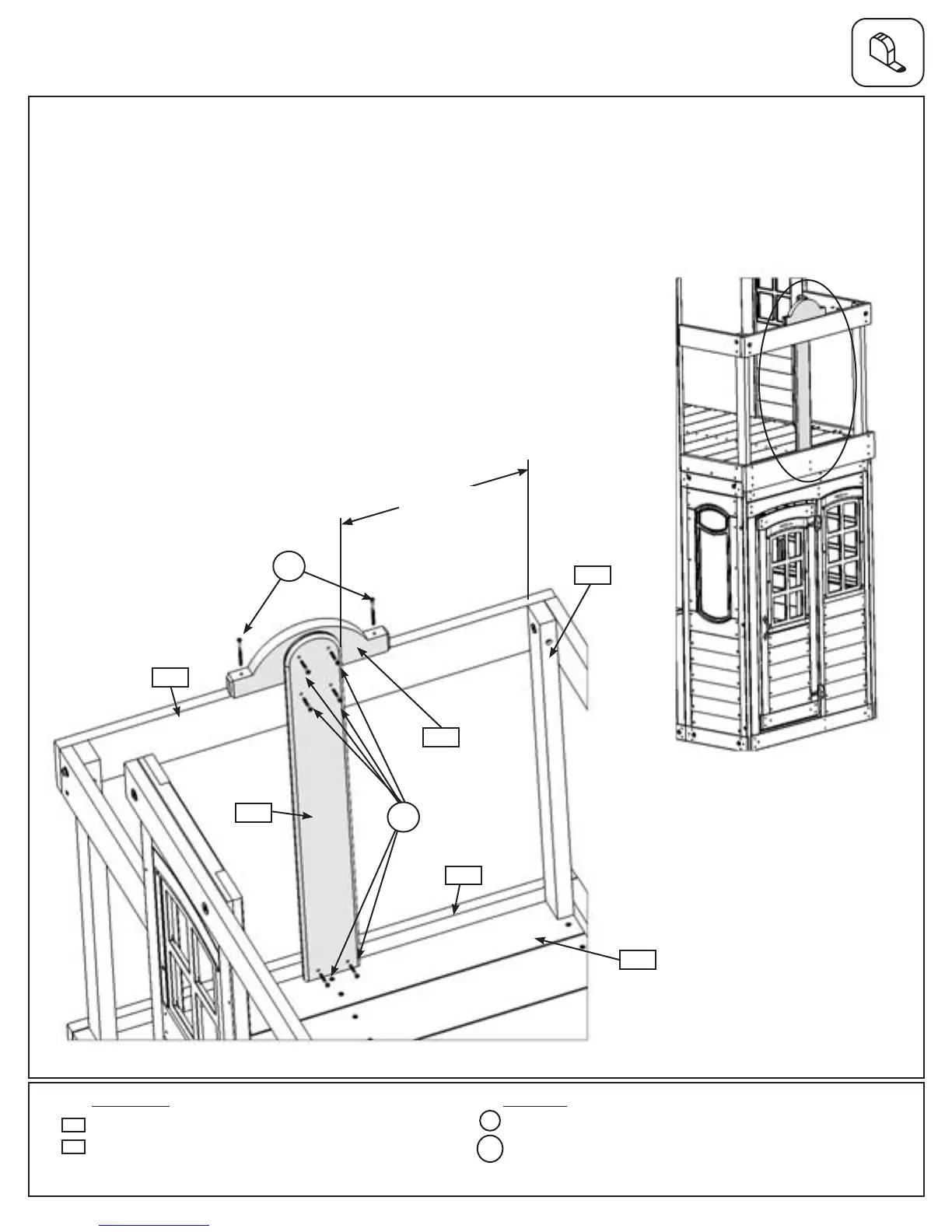

Step 16: Crowsnest Assembly
Part 4
I: Measure 14-1/2” from the inside edge of (161) Crowsnest Post and attach (164) Centre Wall Board to (160)
Crowsnest Top and (092) Floor End with 4 (S20) #8 x 1-3/8” Wood Screws as shown in g. 16.7 and 16.8. (164)
Centre Wall Board should sit tight on top of (153) Floor A.
J: Place (165) Steering Wheel Dash on top of (160) Crowsnest Top, centred over (164) Centre Wall Board and
attach to (160) Crowsnest Top with 2 (S3) #8 x 2-1/2” Wood Screws and to (164) Centre Wall Board with 2 (S20)
#8 x 1-3/8” Wood Screws. (g. 16.8)
S3
Fig. 16.7
165
092
S20
S3
S20
164
160
161
153
14-1/2”
