Cedar Summit F25650 - Page 63

1 x Front Top FSC 5/4 x 4 x 65-1/2”
Wood Parts
127
Hardware
1 x #8 x 1-3/4” Wood Screw
2x 5/16x2-1/8”WaferBolt(5/16”atwasher,5/16”t-nut)
S15
I: Attach (127) Front Top to (040) Cafe Wall Window Panel with 2 (WB9) 5/16 x 2-1/8” Wafer Bolts (with at
washer and t-nut) as shown in g. 12.8 and 12.9.
J: Attach (127) Front Top to (082) SL Post with 1 (S15) #8 x 1-3/4” Wood Screw in the top hole. (g. 12.8 and
12.9)

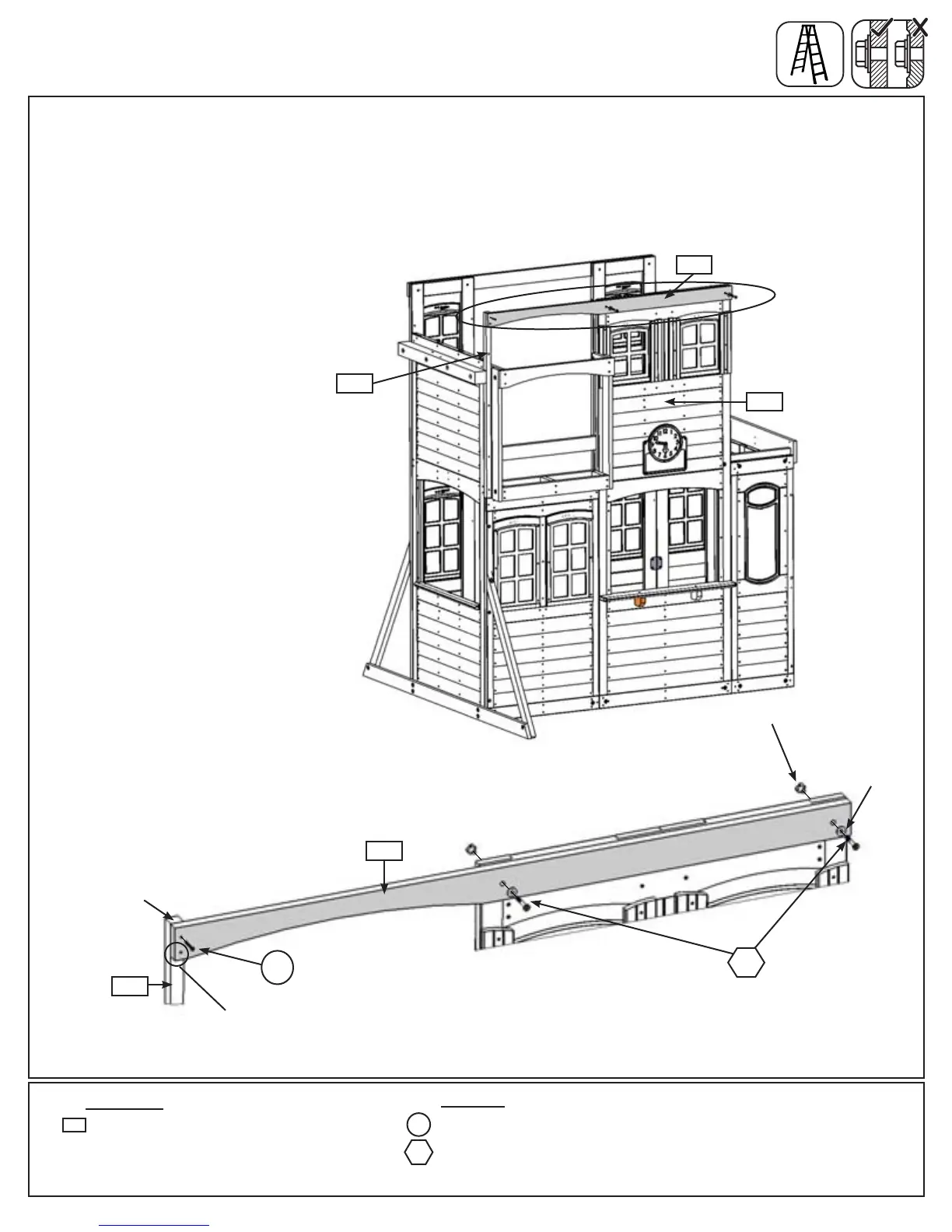

Fig. 12.8
127
Flush
Step 12: Slide Top Assembly
Part 5
Fig. 12.9
082
WB9
WB9
127
040
082
S15
5/16” T-Nut
5/16” Flat
Washer
Leave this hole empty.
63 support@cedarsummitplay.com
