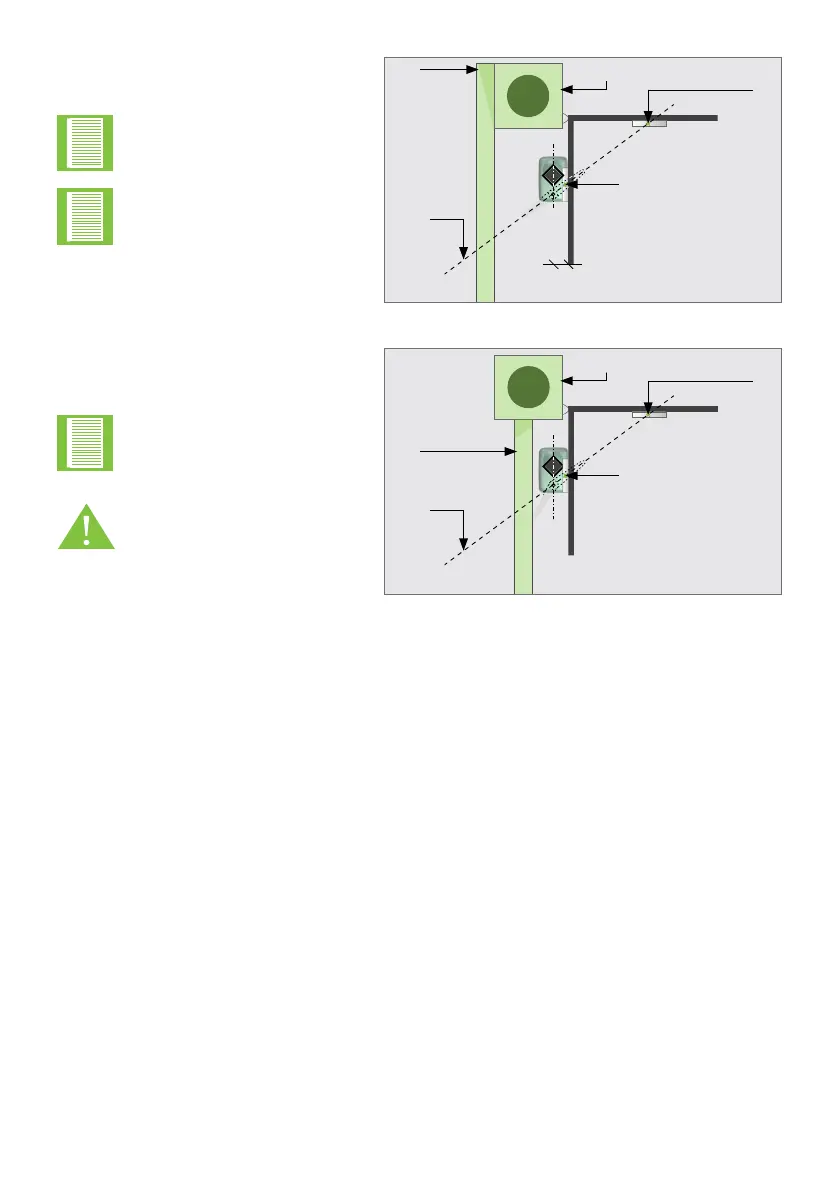

This shows an alternative
position of the pedestal if
space is limited.
The Gearbox just clears
the gate in the fully-open
position.
This shows an alternative
position when there is
absolute minimum space
between the wall and the
gate in the open position.
Absolute limit
(not recommended)
FIGURE 13. LIMITED SPACE
FIGURE 14. ABSOLUTE LIMIT
S4
S4
Setup
line
Setup
line
S5
S5
Pillar
Pillar
Wall
Wall
+/-180mm
OPERATOR INSTALLATIONSECTION 6
