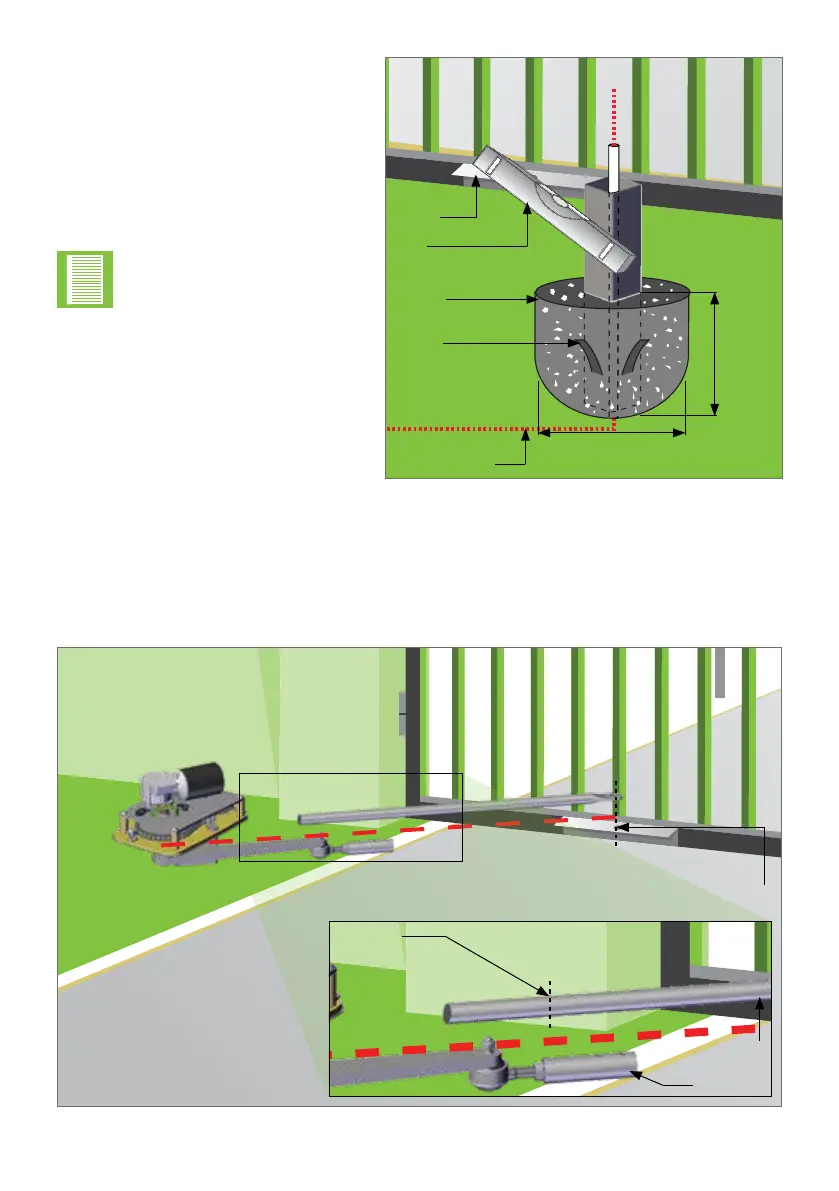

FIGURE 15. INSTALL PEDESTAL AND DETERMINE
CORRECT HEIGHT
OPERATOR INSTALLATIONSECTION 6
Step 8
Dig a hole for the pedestal and
install conduit to the pedestal from
the Control Box. The concrete
pedestal is in place as shown.
Ensure the pedestal is
vertical and oriented
correctly.
300mm min
500mm min
Concrete
Gate
bracket
Conduit for motor and
limit switch cables
Bend
out tabs
Level
Step 9
LooselyttheDriveArmtotheConnectingArmsothatitcanbecuttothecorrectlength
once the Drive Arm and Connecting Arm are colinear and with the gate in the closed
position.EnsurethattheConnectingArmhassucientlengthwithintheconnectingtube
so that both cross-bolts can be used.
FIGURE 16
Cut here
Connecting
Arm
Drive Arm
Attach Connecting Arm to the
Gate Bracket and gate
