Cessna 182 - Flight Controls; Primary Flight Controls

1-11
FLIGHT CONTROLS
Primary Flight Controls
17. The aircraft is fitted with conventional dual flight controls that can be operated from
either front seat:
a. control yokes provide aileron and elevator control through a combination of push-
pull rods, cables, pulleys and bell cranks; and

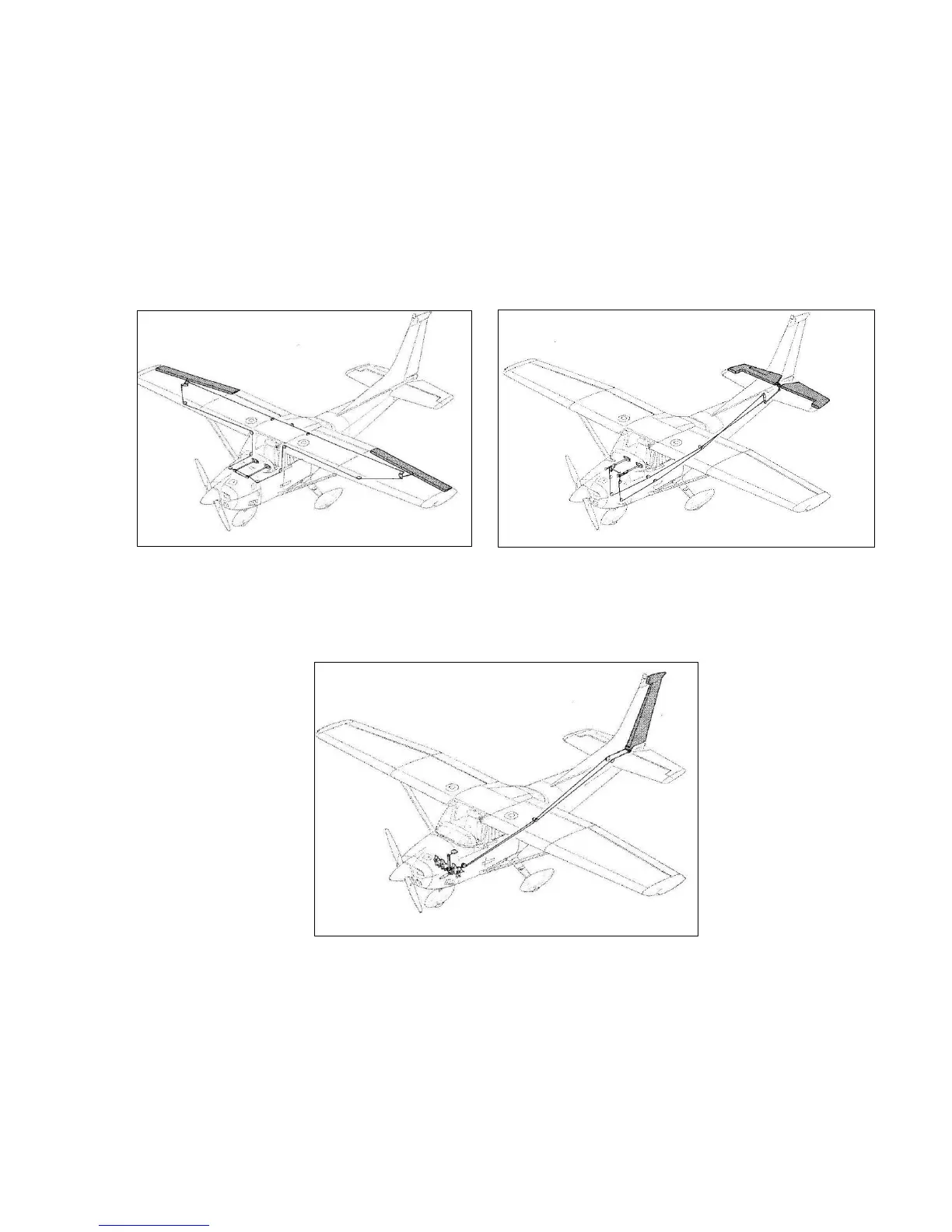

Figure 1-13 Aileron Controls
Figure 1-14 Elevator Controls
b. rudder pedals provide both rudder and nose wheel steering control, and
incorporate conventional toe brakes.
Figure 1-15 Rudder Controls
