Cessna 182 - Instrument Panel

1-16
INSTRUMENT PANEL
25. The instrument panel incorporates the following features:
a. primary flight instruments on the main LH panel;
b. a centre-mounted avionics stack;
c. an EDM-930 engine data management system in the main RH panel;
d. a lower sub-panel that incorporates engine controls, electrical switches, controls
and circuit breakers;
e. a bin for storing publications / maps / charts on the far right hand side of the main
panel; and
f. a glove compartment for storing aircraft documents in lower right hand sub panel.

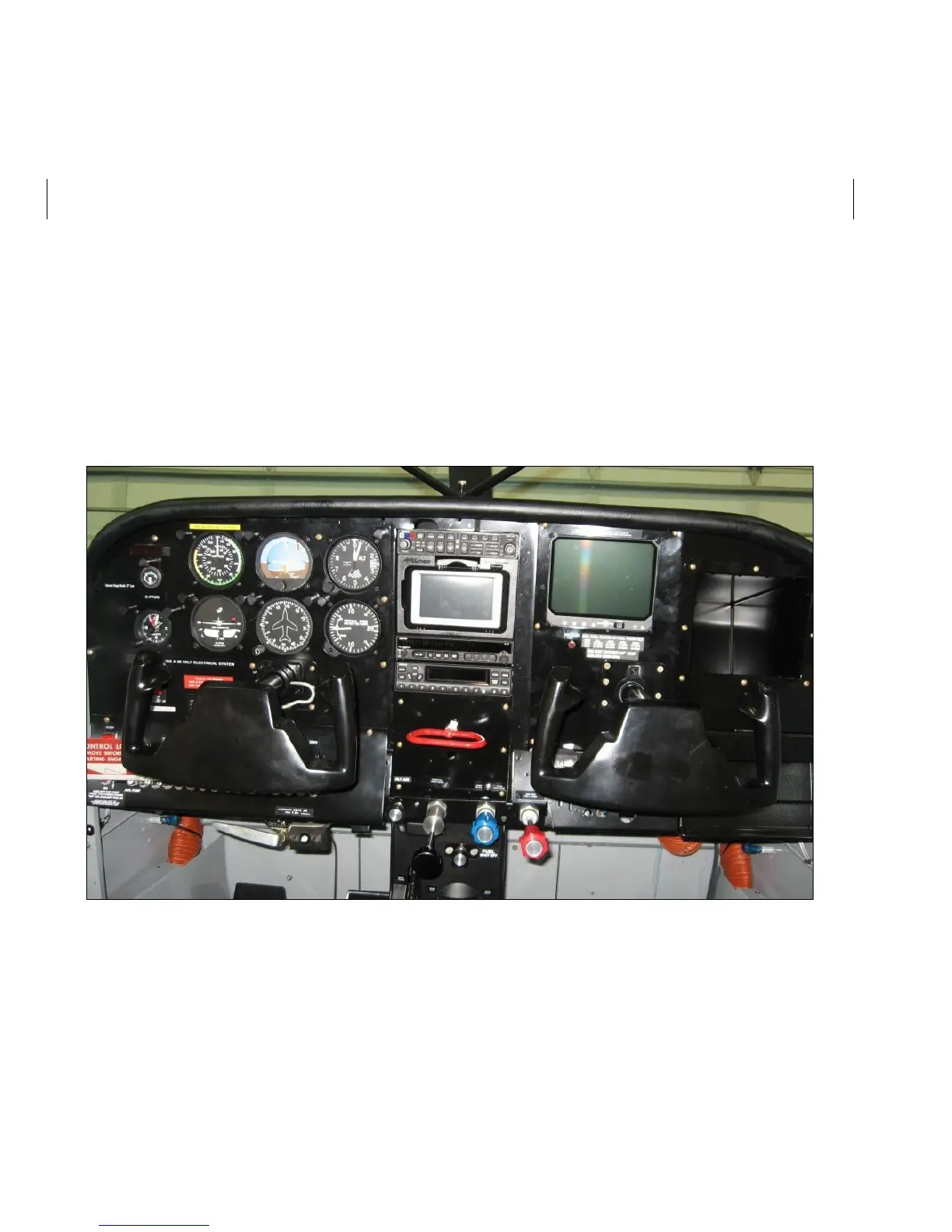

Figure 1-22 Instrument Panel
