88. A grouping of six conventional flight instruments is provided, installed in the left hand
instrument panel. The suite of flight instruments includes the following:

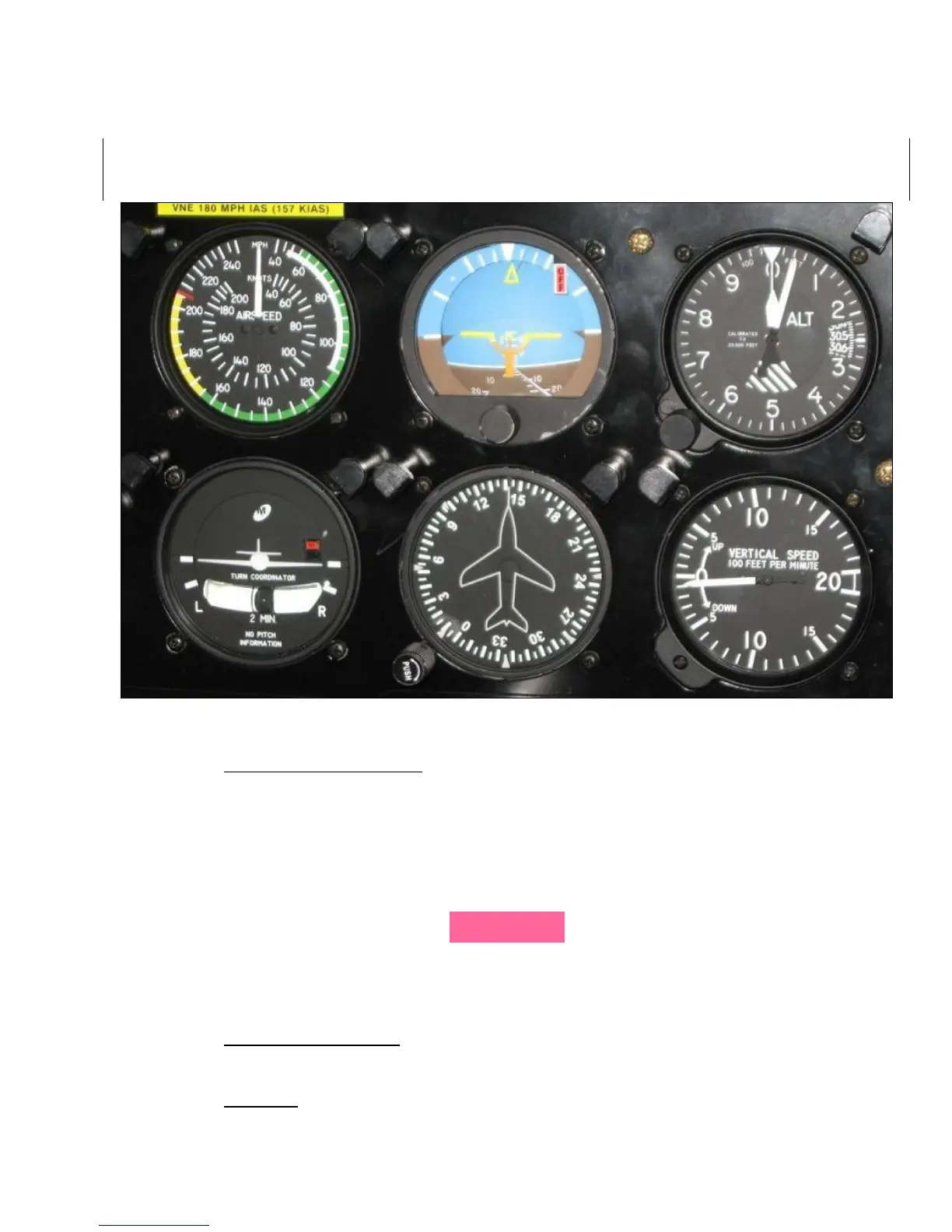

Figure 1-56 Flight Instruments
a. Airspeed Indicator (ASI) – calibrated in MPH with a concentric subscale in knots.
Range/limitation markings are in satisfaction of STC SA00152WI (ref D) and are
as follows:
(1) white arc – 47 - 110 mph
(2) green arc – 55-165 mph
(3) yellow arc – 165 – 206 mph
A placard located immediately above ASI limits VNE
to 180 MPH. This limitation is associated with the
wing extensions installed under STC SA00276NY.
b. Attitude Indicator (AI) – Vacuum operated with an adjustable split bar (miniature
airplane);
c. Altimeter – a standard barometric type altimeter with encoding capability and
