Cessna 182 - Wing Flaps

1-13
Wing Flaps
20. Single-slotted wing flaps are electrically actuated through a range of 0º to 35º by a wing
flap selection lever on the instrument sub-panel. The switch lever is positioned up or down in a
slotted panel with detents at the 10º, 20º, and 35º settings. For flap settings greater than 10º,
move the switch lever to the right to clear the detent and then position as required. A scale and
pointer to the left of the switch lever indicates flap travel in degrees. The wing flap system
circuit is protected by a 15 amp circuit breaker on the left instrument sub-panel.

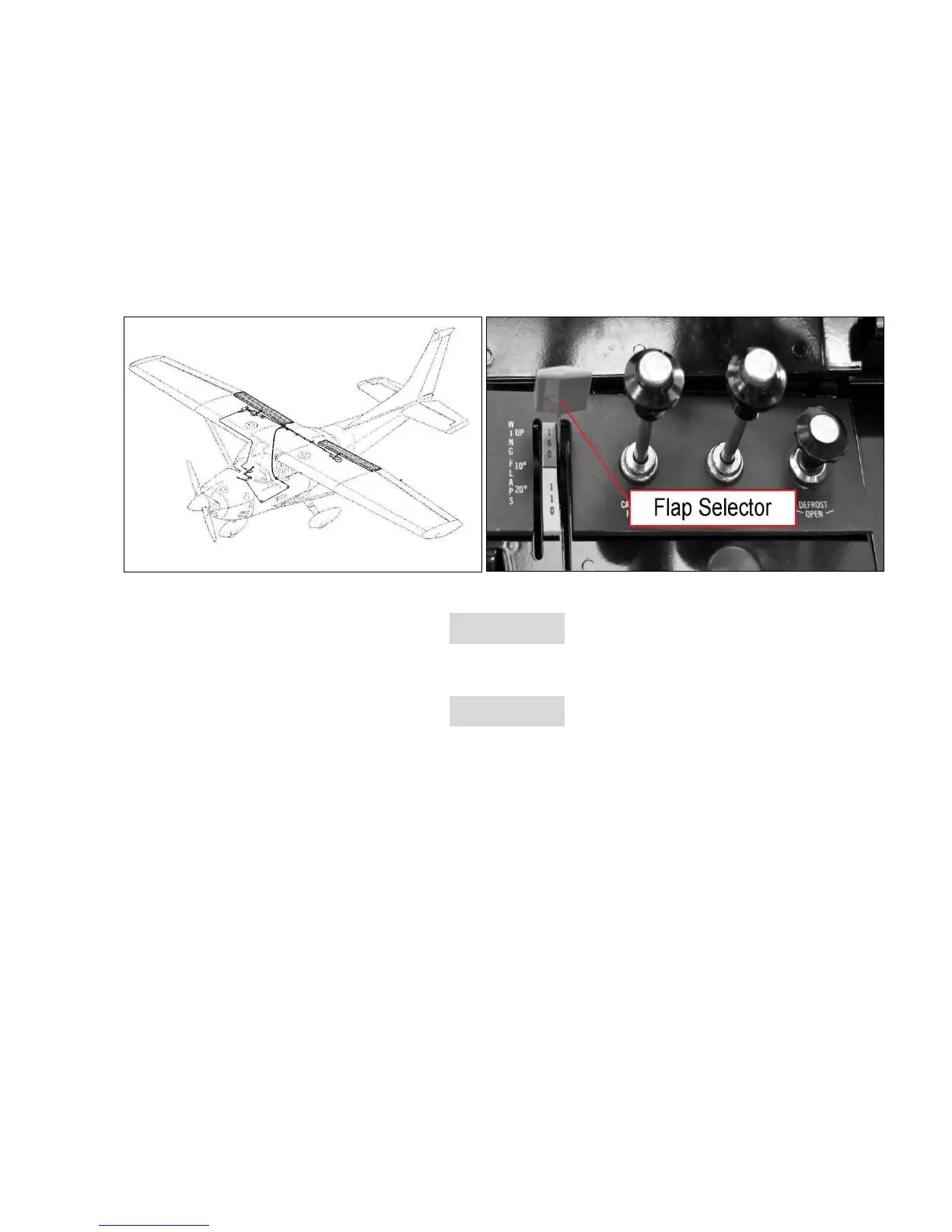

Figure 1-18 Flap Controls
Figure 1-19 Flap Selector
NOTE
Flaps are limited to 35 degrees of travel in compliance with STC
SA00152WI (Continental IO520D Engine Installation).
NOTE
Takeoff Flap is restricted to a maximum of 20 degrees with STC
SA00152WI (Continental IO520D Engine Installation).
